FlexMax Laser

1000W to 1500W Fully Enclosed FlexMax Fiber Laser Metal Cutter JET CUBE Series 4x3' Workingarea

1000W to 1500W Fully Enclosed FlexMax Fiber Laser Metal Cutter JET CUBE Series 4x3' Workingarea

$57,000.00 USD
$57,000.00 USD
Sale Sold out

SALE METHOD: FROM THE FACTORY TO YOUR FACTORY WITH LOCAL TRAINING AND SUPPORT

Our JET CUBE Series Compact Enclosure cutter includes:

✔ FREE Shipping* (Forklift is required)
✔ 4-DAY Full Pack On-site Installation and training
✔ 1000W or 1500W Fiber Laser Source
✔ Working Area: 4 x 3'
✔ CypCut Professional Cutting Software
✔ YASKAWA Japanese Servo Movement System
✔ Raytools Dynamic Autofocus Laser Head
✔ S&A Industrial Electrónic Chiller
✔ Industrial Grade Blower
✔ Automatic Lubrication System
✔ PC with Pre-Installed System

Click here to request a JET Series quote request

Payments As Low As: $ 1,203/mo CLICK HERE to APPLY NOW
View full details

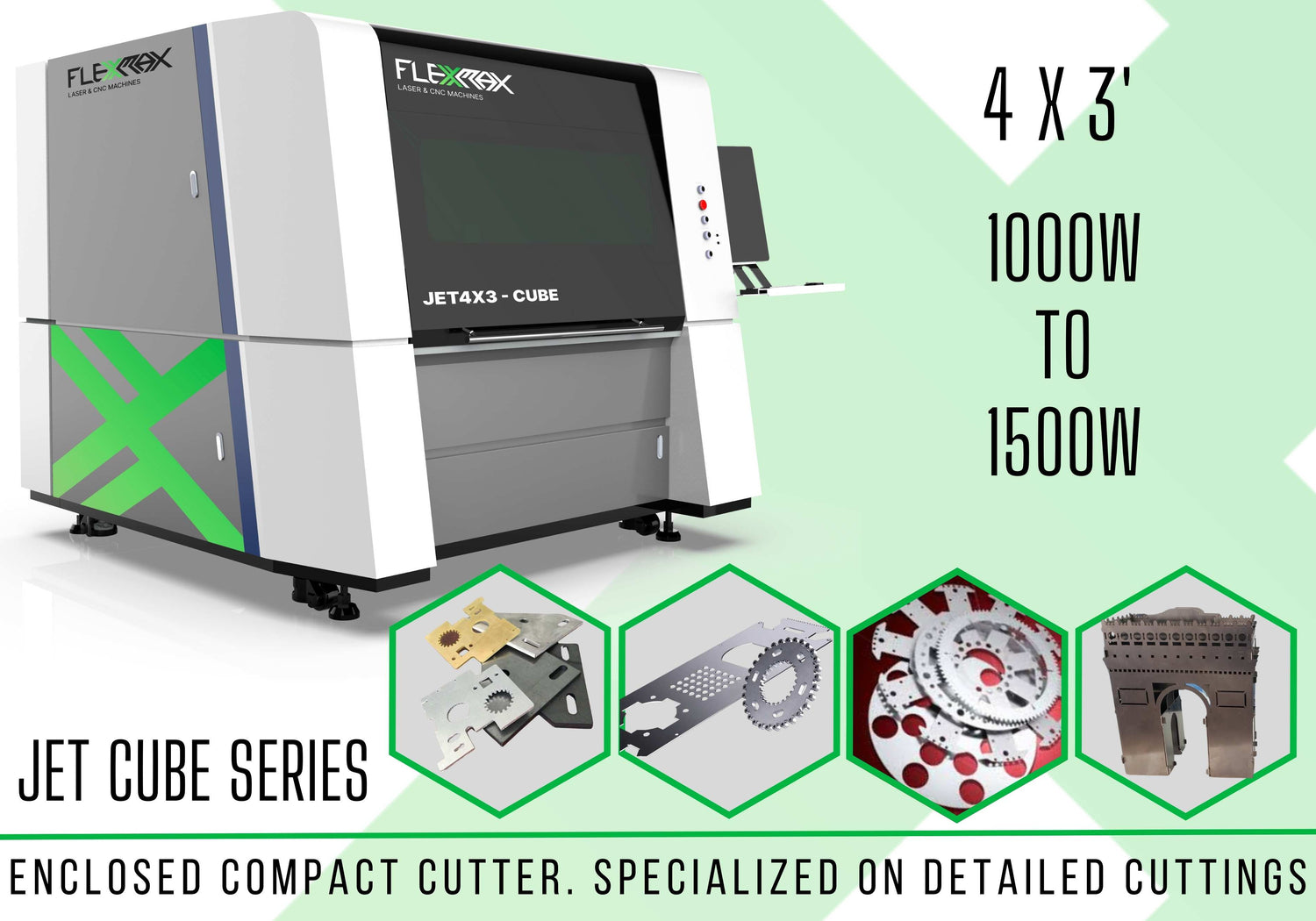

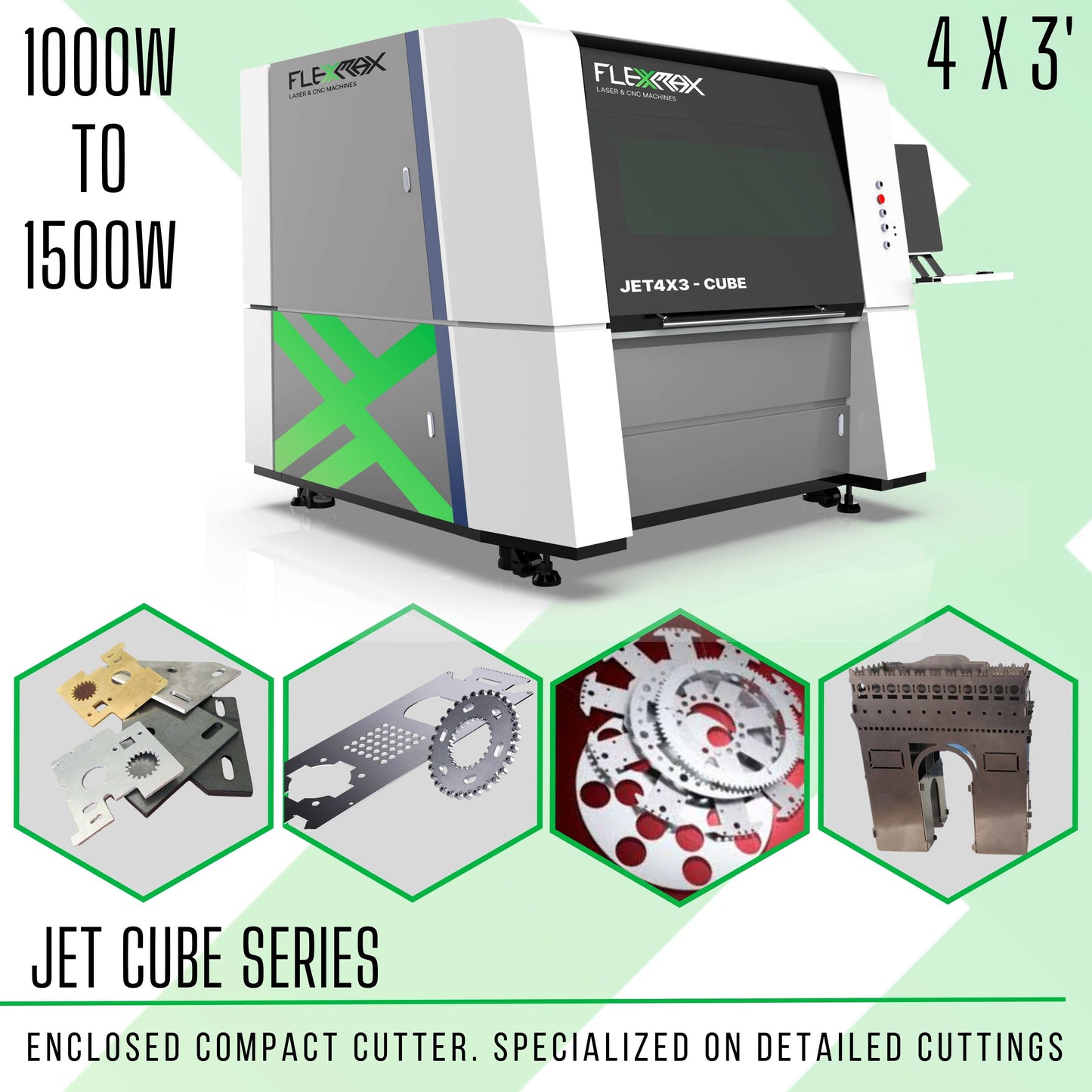

INTRODUCTION

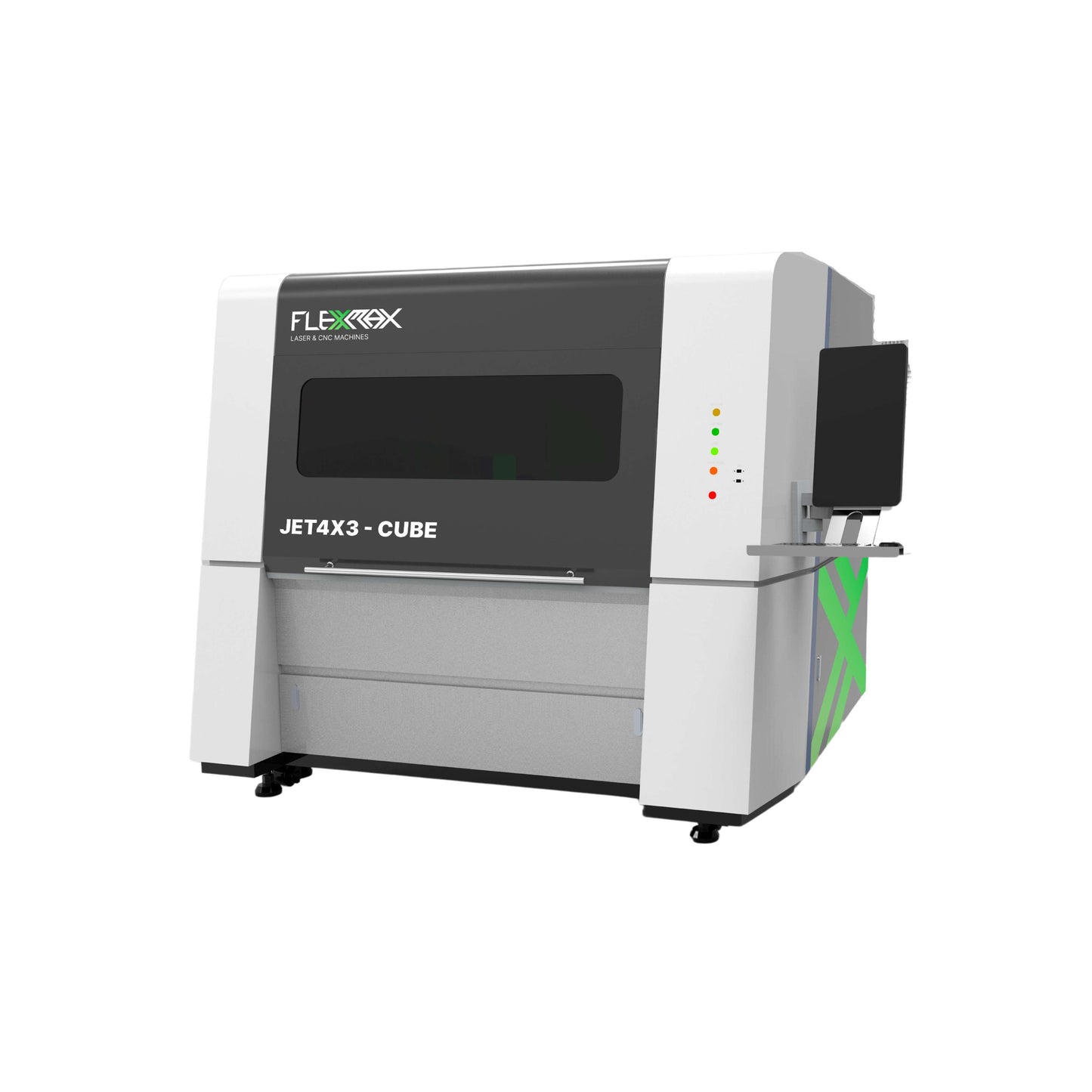

Our Compact and Fully Enclosed FlexMax Laser Fiber Metal Cutter, JET4X3-CUBE, is the safest, most economical, and cleanest way to cut detailed and complex metal designs, even for the jewelry industry.

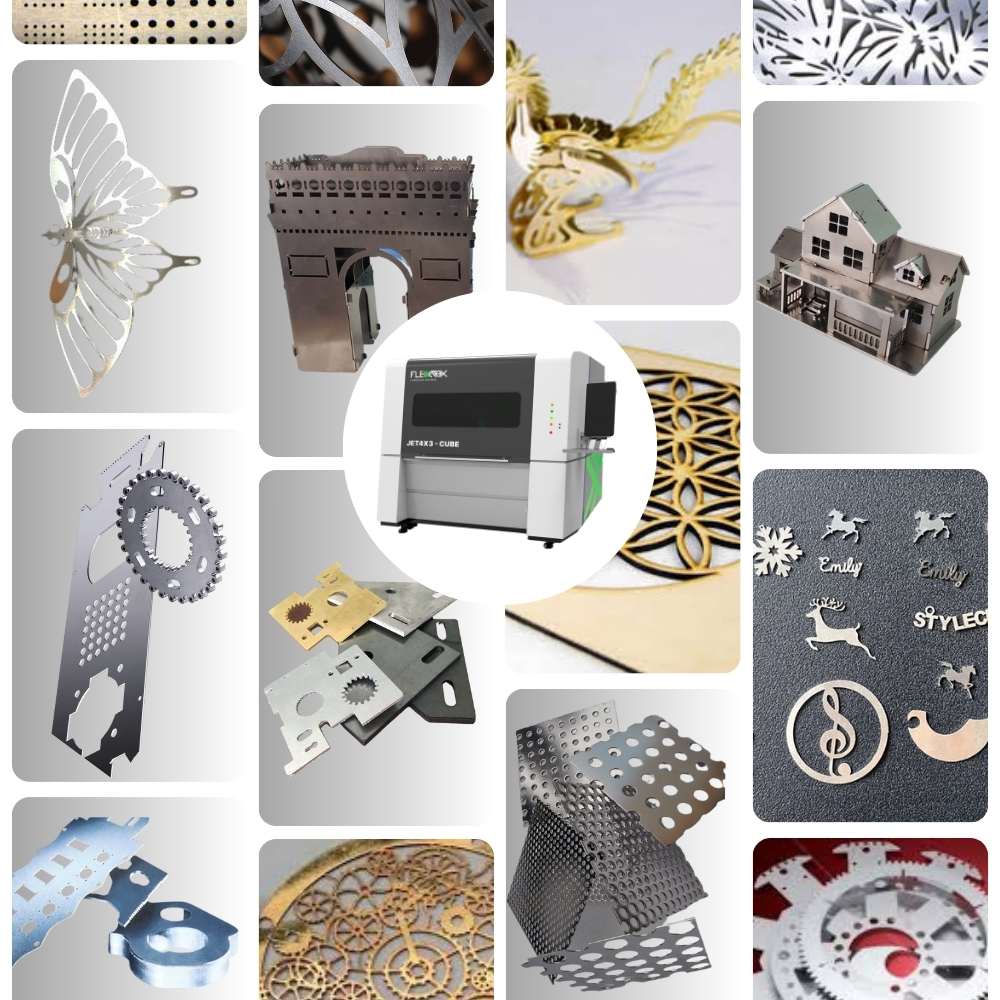

WHAT CAN I CUT?

Our NOVA Series can cut stainless steel, carbon steel, mild steel, Galvanized steel, and aluminum. This chart is referential and can vary by up to +/-30% depending on the alloy, material composition, surface, supply type, and quality (Nitrogen, Oxygen, or Air).

LASER SOURCE

Our fiber metal cutters are equipped with Max Photonics laser generators, TOP BRAND specializes in manufacturing fiber optic metal cutting sources.



AUTOFOCUS HEAD

Metal sheets are never entirely flat; they have waves or are uneven. The “Auto Focus” is an efficient height regulation system with a height sensor equipped in the cutting head; it detects the distance from the output nozzle of the laser light beam to the material's surface.

YASKAWA SERVO

Yaskawa is a Japanese brand that specializes in producing servo movement systems for high-precision industrial machines. Servo technology is known for its high precision and smooth movements.

CYPCUT SOFTWARE

CypCut is the world's most popular cutting software for abundant online support material. This system offers total and efficient machine control and allows processing files DXF, PLT, and AI LXD.

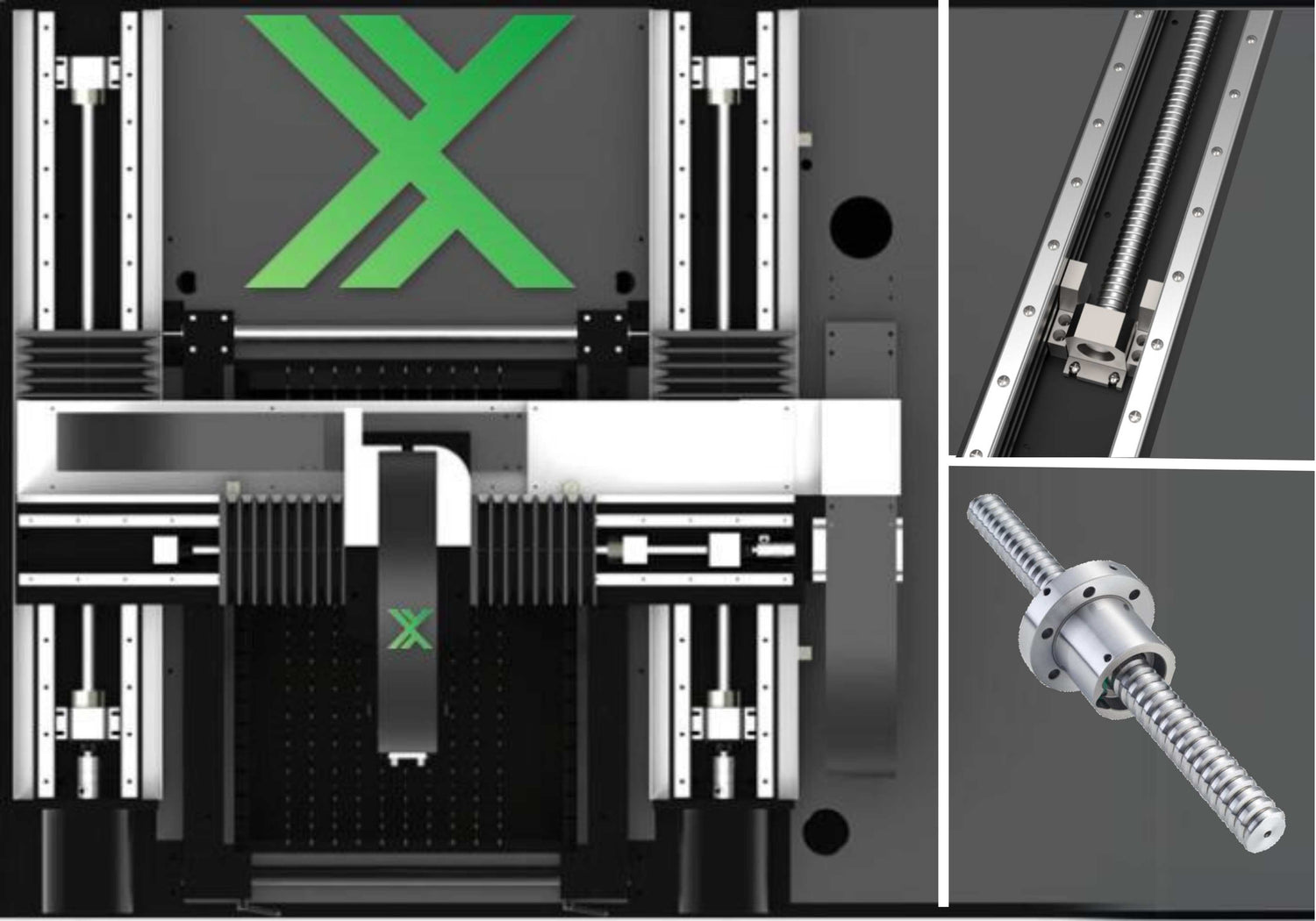

BALL & SCREW

Ball & infinite screw is the best transmission system if you need to cut small and detailed pieces of metal with high precision.

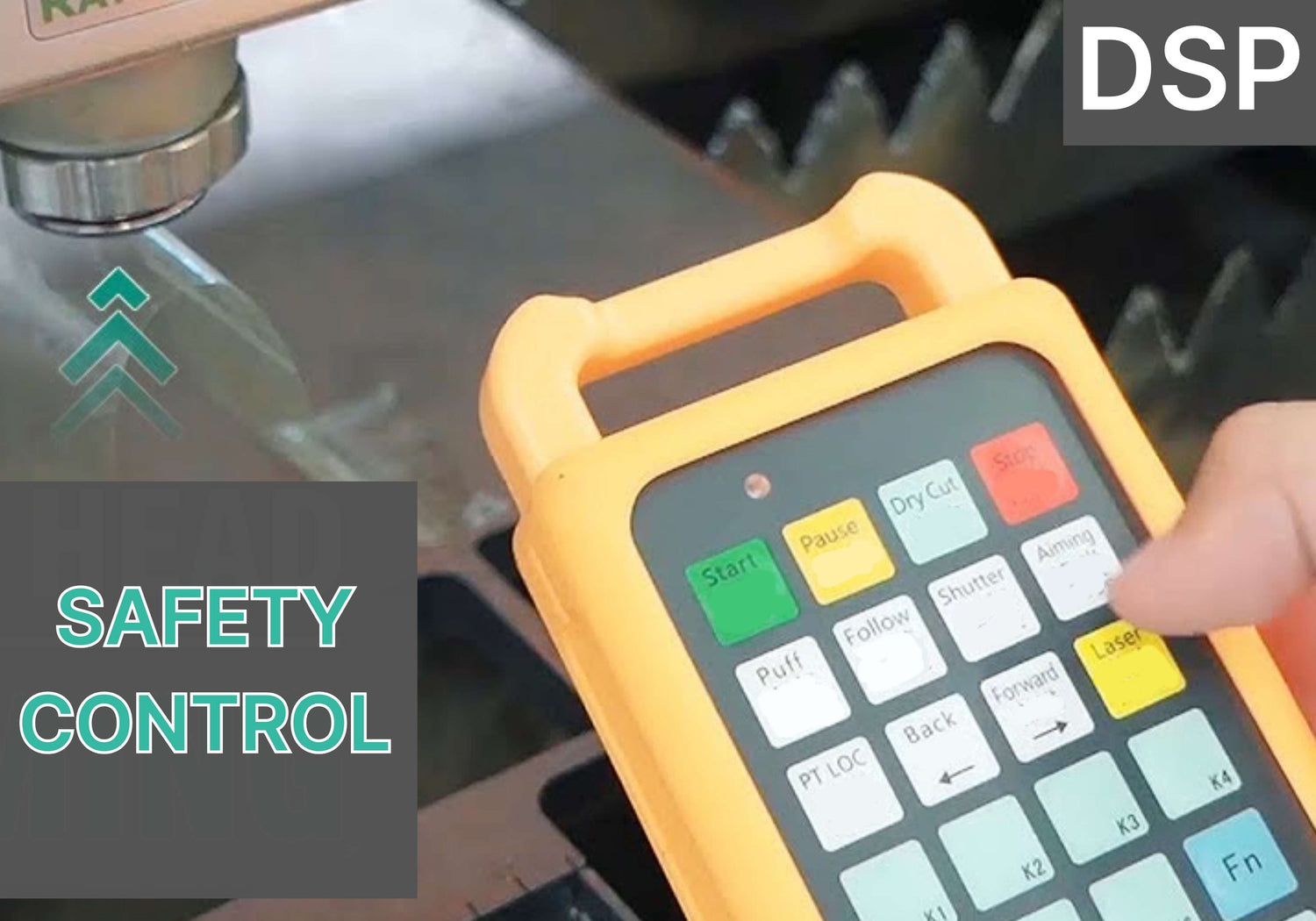

DSP EASY CONTROL

FlexMax Laser includes an industrial-grade DSP hand controller to operate the metal cutter efficiently from a safe distance.

AUTOMATIC LUBRICATION

Lubrication and maintenance are basic needs for a laser cutter, so we equip them with automatic lubrication systems, which have a technique that transfers oil to sensitive places.

INDUSTRIAL COOLING SYSTEM

This includes an “industrial” water cooling and refrigeration system; the chiller is electronically controlled, keeping the water cold. Just adjust the temperature required by the system.

FUME BLOWER SYSTEM

Maximizes the suction of dust and particles, achieving clean cuts. It channels the fumes and gases generated when working with varied materials.

FACTORY TO FACTORY

We ship the machine directly from the factory to your location anywhere in the USA. Once it arrives, an engineer will install it and train you to use it with your materials and projects. ALL-INCLUSIVE!

1000W to 1500W Fully Enclosed FlexMax Fiber Laser Metal Cutter JET CUBE Series 4x3' Workingarea

TECHNICAL SPECIFICATIONS


TECHNICAL SPECIFICATIONS - JET CUBE Series

Laser Generator Power: 1000W or 1500W.

Laser Source Brand: MAX Photonics.

Machine Weight: 2,680 lbs.

Machine Dimensions: 83 x 85 x 64 inches.

Machine Work Area: 4 x 3 ft

Software: CypCut.

Supported Formats: DXF, PLT, AI, LXD.

Cutting Speed: 5 meters x min depending on the material and thickness (Up to 0.5G).

Movement System: Full Japanese Yaskawa Servo

Transmission type: Ball & Screw (Taiwan).

Re-positioning Accuracy: ±0.02/1000 (mm).

Velocity of Displacement: 5,000mm/min.

Lubrication System: Automatic.

PC with Pre-installed Software: Yes (Integrated).

A/C System: Integrated for the electronic components zone.

Cooling Method: CWL Refrigerated Electronic Chiller (included).

Gas and Smoke Extraction (Blower): Industrial 0.75kw Included.

Operating Temperature: 10°C - 28°C.

Operating Humidity: 5% - 95% without water condensation.

Machine Energy Consumption: 4KW to 5KW, depending on the laser source power.

Voltage/Hertz: 220V/60Ghz 3P.

Warranty: 3-YEAR for 6000W generators, 2-YEAR for 4000W and 3000W generators, 1-YEAR for 1000W to 2000W generators, electronic and mechanical components, and six months for labor (The warranty does not include consumables or travel expenses).

WARRANTY

In FlexMax Laser & CNC Machines we exceed our compromise with our customers. Our most important goal is to full fill your expectations and needs.


We provide outstanding customer service to satisfy our customer request.



FLEXMAX LASER & CNC MACHINES ALSO OFFERS:

  • COMPLETE INVENTORY OF SPARE PARTS FOR ALL THE LASER ENGRAVER & CUTTER MODELS.
  • SPECIALIZED TECHNICAL SUPPORT.
  • FAST RESPONSE TO OUR CUSTOMER REQUIREMENTS
  • CONTINUOUS IMPROVEMENTS IN OUR SERVICE.

FlexMax Laser & CNC Machines offers a comprehensive warranty policy, for more information and complete terms: CLICK HERE
