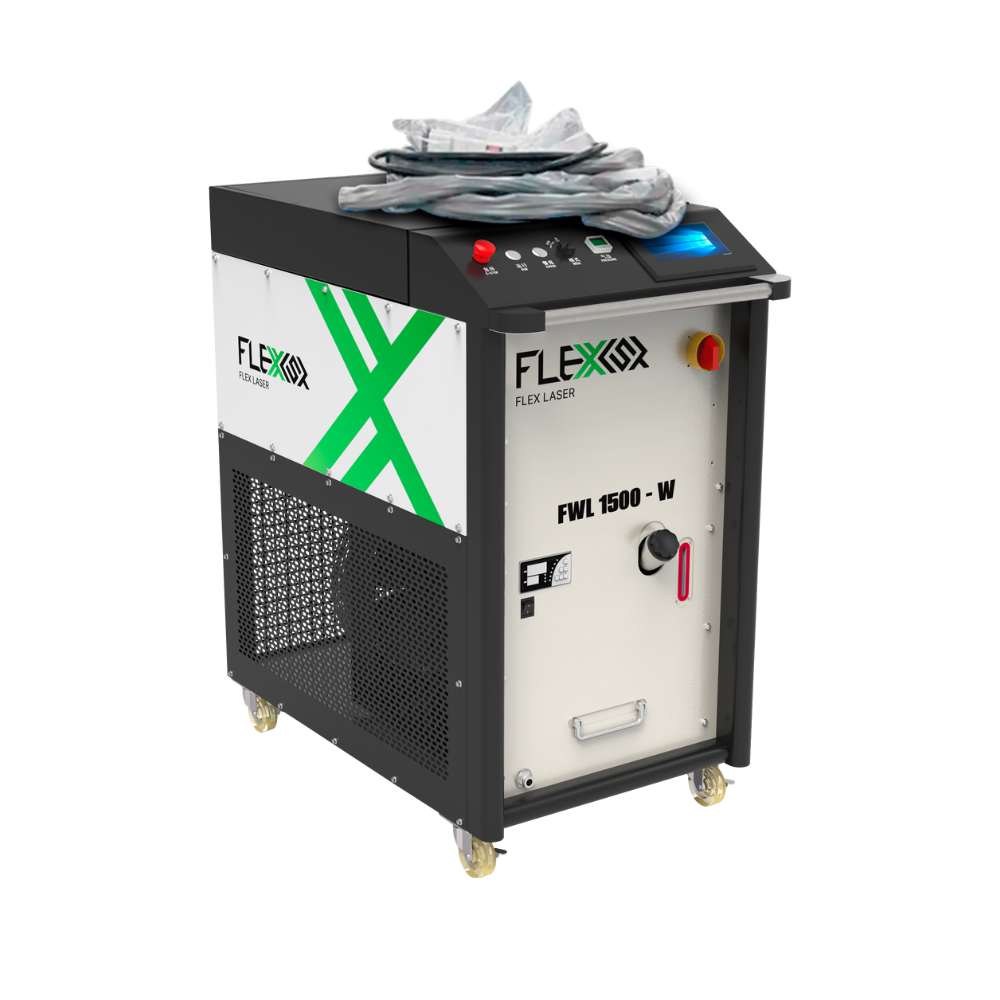

1500W or 2000W FlexMax Laser 3 in 1 Fiber Metal Welder, Cleaner and Cutter NEXUS Series

1500W or 2000W FlexMax Laser 3 in 1 Fiber Metal Welder, Cleaner and Cutter NEXUS Series

$12,500.00 USD
$12,500.00 USD
Sale Sold out

SALE METHOD: FROM OUR CA WAREHOUSE TO YOUR FACTORY WITH ONLINE AUDIOVISUAL OR OPTIONAL LOCAL TRAINING AND SUPPORT

Our NEXUS Series 3-in-1 welder, cleaner, and cutter include:

✔ 1500W or 3000W Fiber Laser Welder, Cleaner, and Cutter
✔ Heavy duty and ergonomic multi-function hand-held to weld with minimal distortion or warping, precision, and deep penetration
✔ Perform different weld bead shapes such as 8, ZIG ZAG, automatic dots, etc
✔ 6 Welding modes including laser, TIG, MIG, Micro Wire, etc
✔ Weld up to 4X faster than older technologies such as TIG, MIG, or Micro Wire
✔ Includes the automatic wire feeder
✔ LCD color touch screen high resistance control panel
✔ Weld, clean, or cut stainless, mild, and aluminum steel, galvanized steel, etc
✔ Integrated Industrial electrónic Chiller

Click here to request a NEXUS Series quote request

Payments As Low As: $ 263/mo CLICK HERE to APPLY NOW
View full details

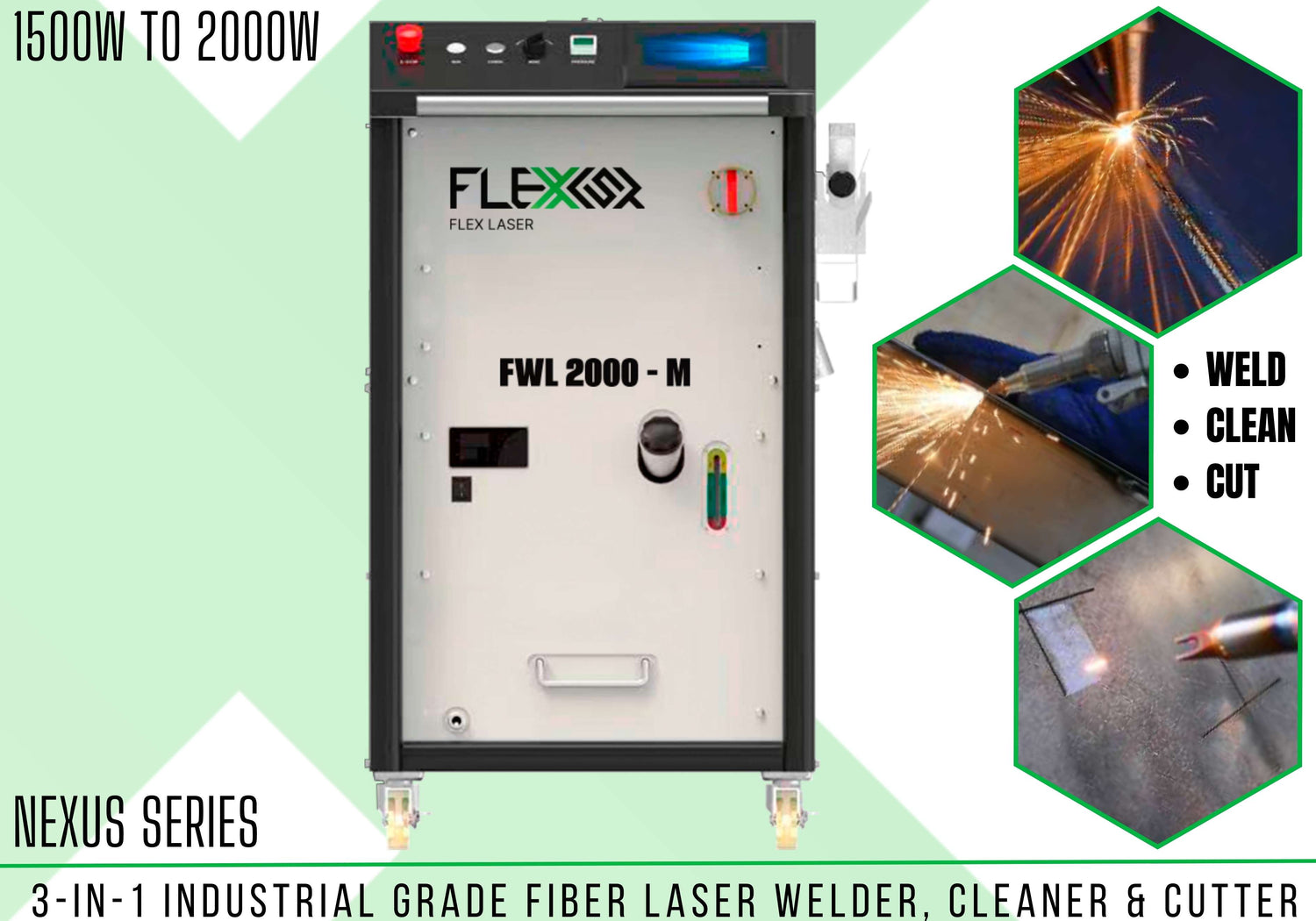

INTRODUCTION

The NEXUS Series is an advanced handheld Fiber Laser designed to cut, weld, and clean various metal materials effortlessly. It offers a range of power options from 1.5KW to 2KW, with higher power variants also available.

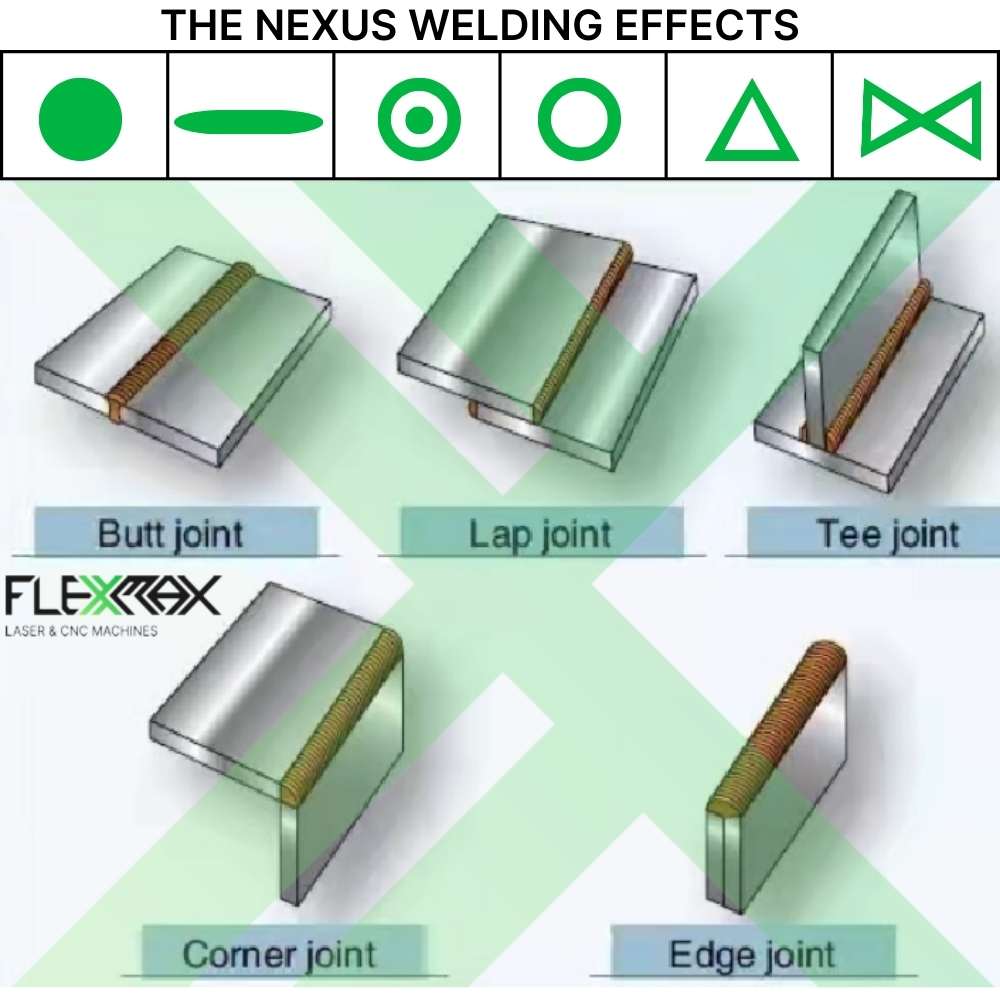

WELD BEADS

Our laser welder is capable of producing a wide range of weld bead shapes, including 8, ZIG ZAG, programmable automatic dots, lines with different thicknesses, triangle effect, and more.

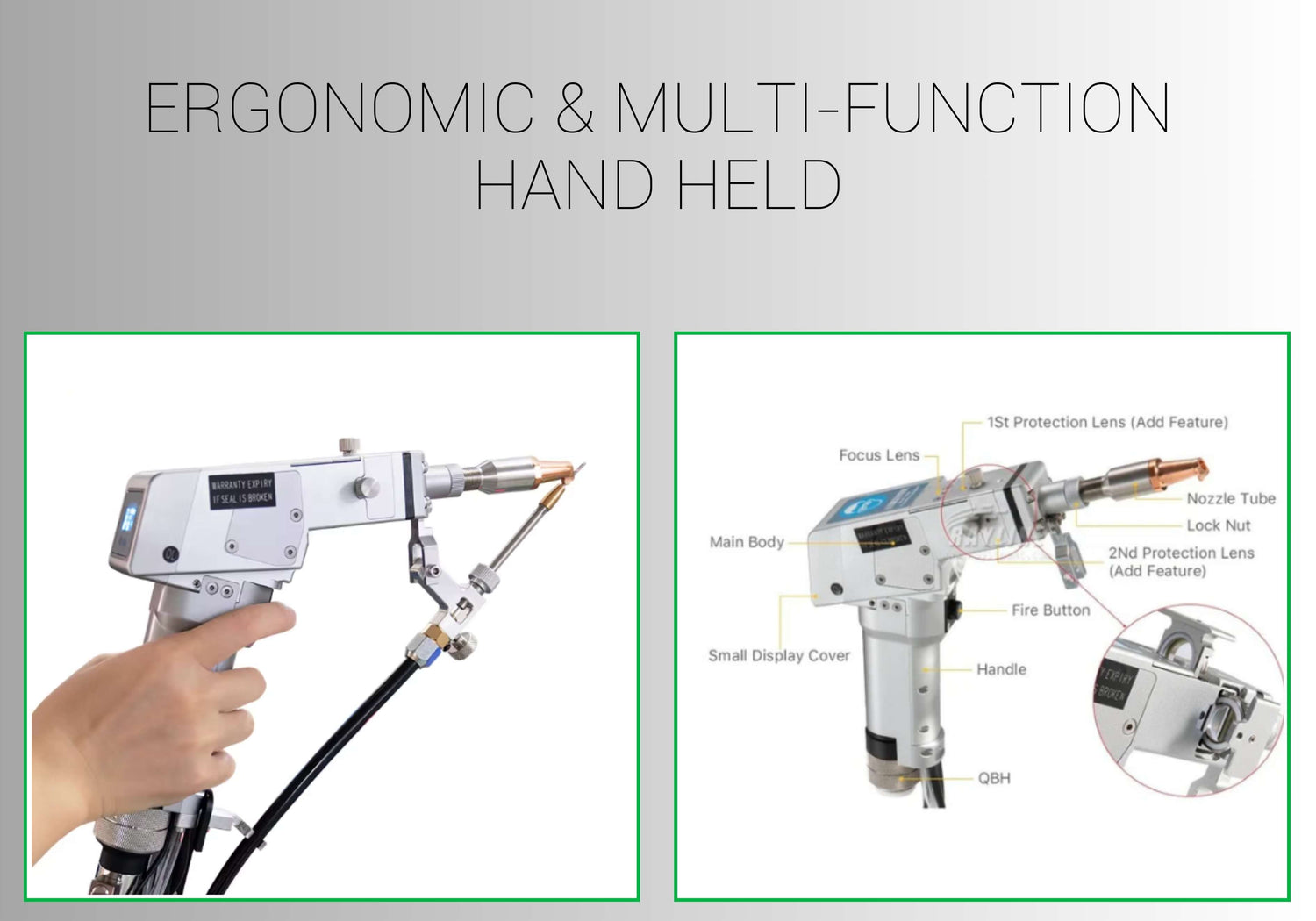

HAND HELD

Includes a high-precision ergonomic handheld equipped with a digital wire feeder for welding with input. It achieves maximum production in the shortest time and is easy to maneuver in places or points with difficult applications.

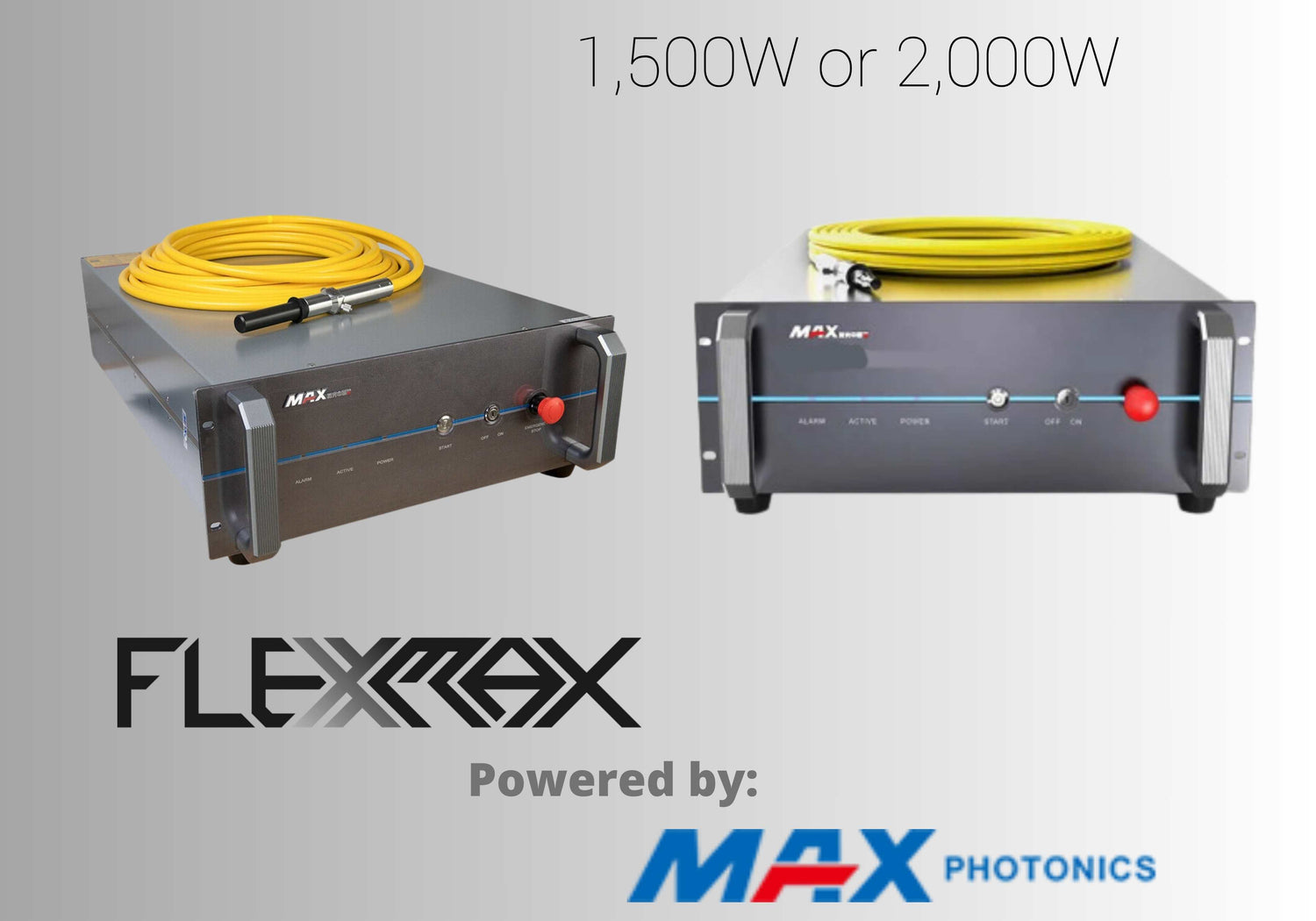

LASER SOURCE

Our fiber laser welders are equipped with Max Photonics laser generators; TOP BRAND specializes in manufacturing fiber optic metal cutting sources.

TOUCH SCREEN

Our high-resistance touch-screen control panel is fully programmable, empowering the operator to fully control welding speed, welding effect, type of weld bead, wire thickness selection, and numerous other integrated functions.

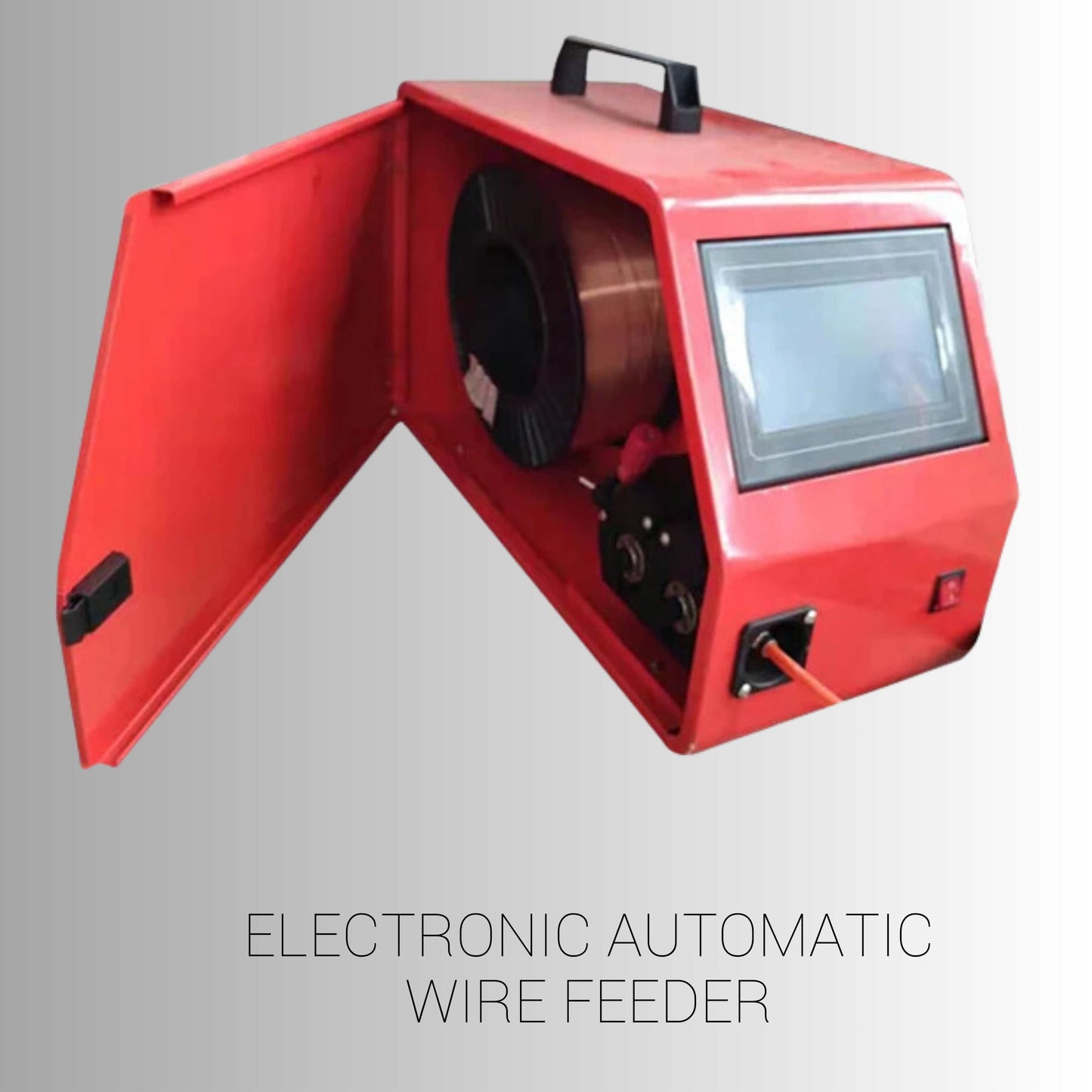

WIRE FEEDER

As part of our package, the NEXUS Series includes an automatic, fully programmable wire feeder that supports standard wire rolls up to size 1.6, readily available in the market.

WELD FAST

Our NEXUS Series welder can weld up to four times faster than older technologies such as TIG, MIG, or Microwire. This reduces production times and improves weld quality, resulting in an aesthetic weld.

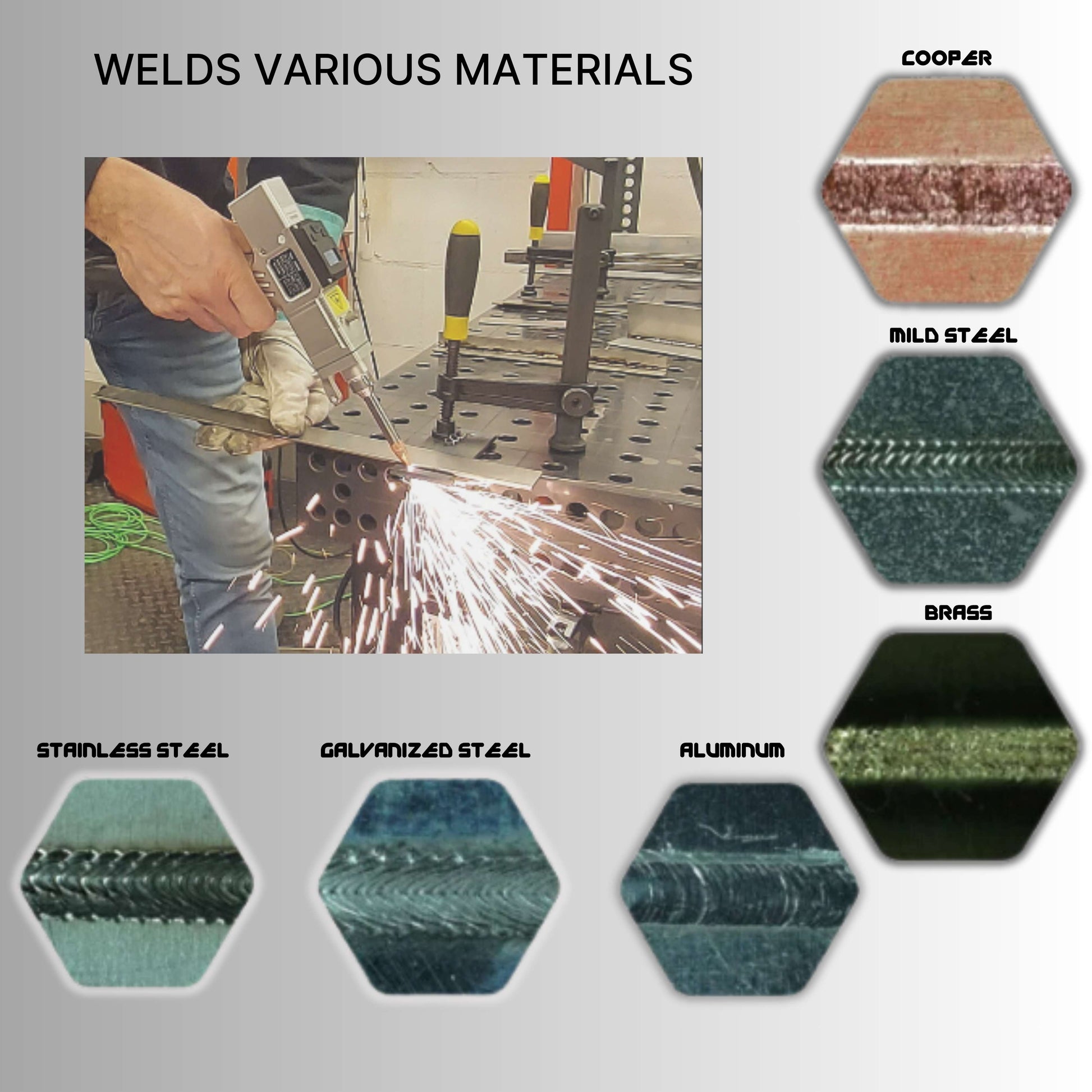

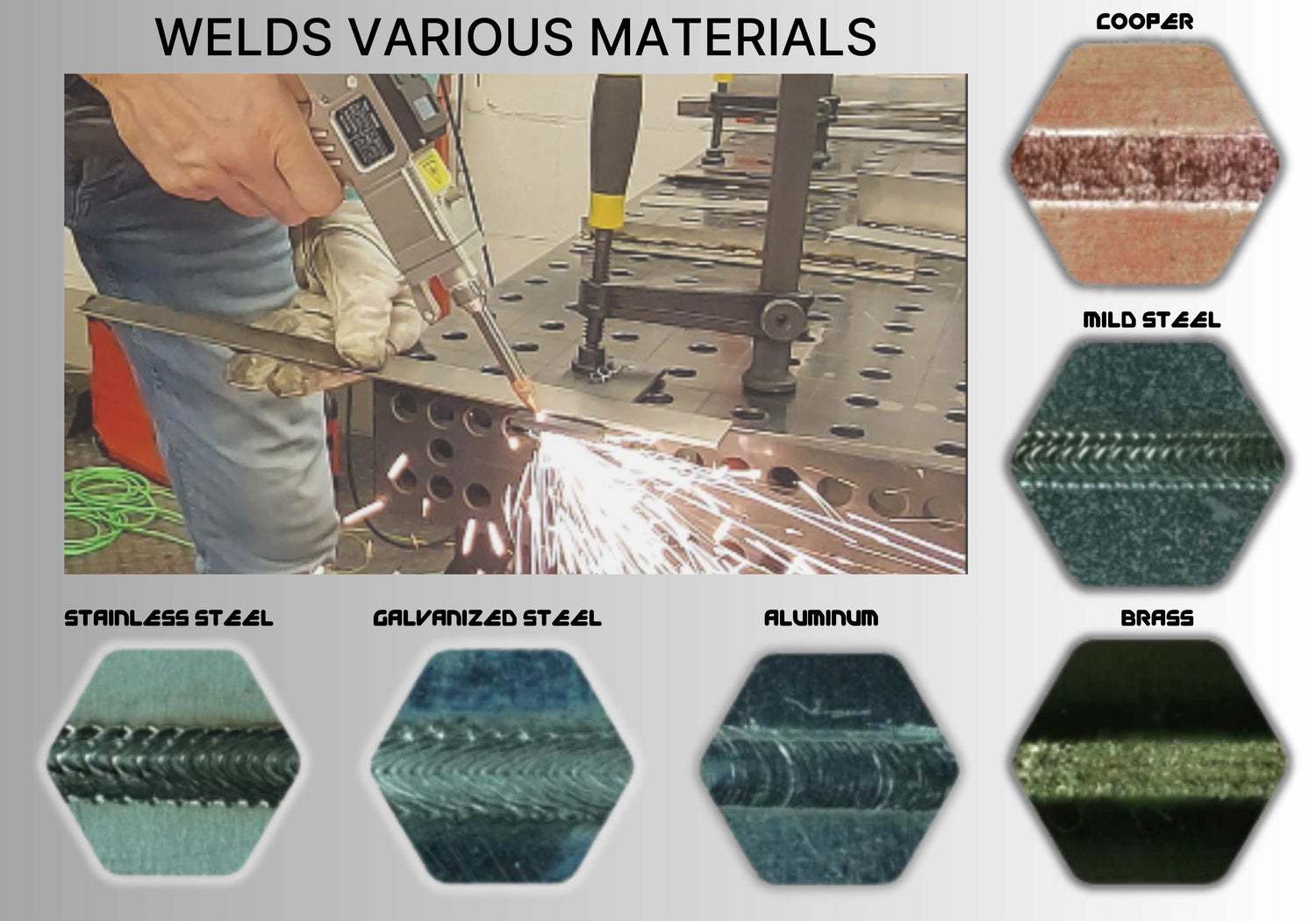

MATERIALS

Laser technology can weld metals such as mild steel, stainless steel, brass, aluminum, and galvanized steel.

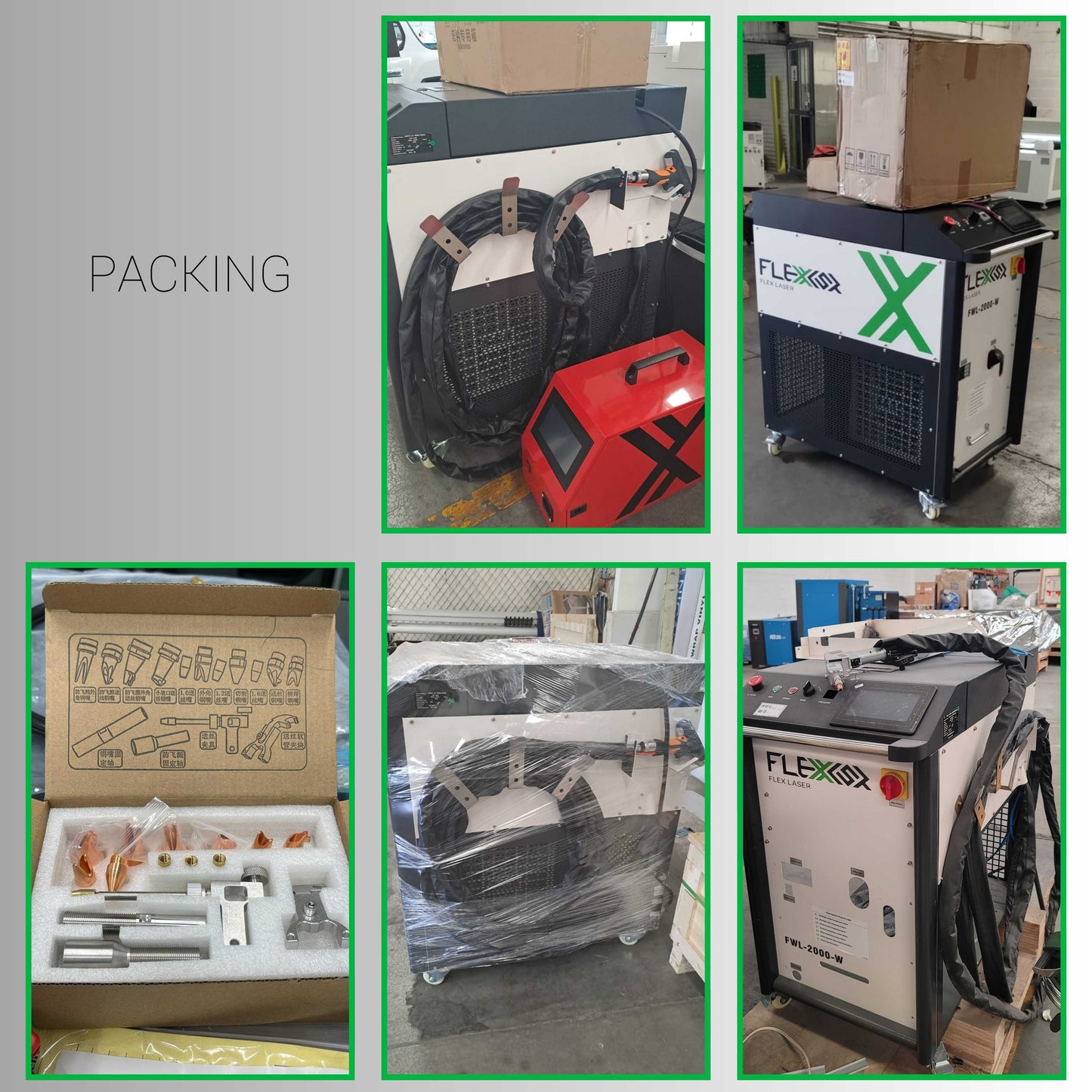

PACKING

The NEXUS 3-IN-1 is confidently housed in a sturdy wooden box and features the welder with a handheld attachment, wire feeder, and a comprehensive set of nozzles and accessories.

INDUSTRIAL COOLING SYSTEM

This includes an “industrial” water cooling and refrigeration system; the chiller is electronically controlled, keeping the water cold. Just adjust the temperature required by the system.

APPLICATIONS

Laser welding has many applications in the industry, such as metalworking, repairs, tooling/molds, the automotive and aeronautic industries, kitchenware, product manufacturing, and lighting.

FACTORY TO FACTORY

We ship the machine directly from the factory to your location anywhere in the USA. Once it arrives, an engineer will install it and train you to use it with your materials and projects. ALL-INCLUSIVE!

1500W or 2000W FlexMax Laser 3 in 1 Fiber Metal Welder, Cleaner and Cutter NEXUS Series

TECHNICAL SPECIFICATIONS


TECHNICAL SPECIFICATIONS - NEXUS Series

Laser Generator Power: 1500W or 2000W.

Laser Source Brand: MAX Photonics

Machine Weight: 270 lbs.

Machine Dimensions: 48 x 28 x 40 inches.

Control Panel: LCD Touch Screen.

Welding Speed: 0 to 120 mm/s depending on the material, effect, and thickness.

Bead Shapes: Weld Zig Zag, lines, dots, 8, and more effects.

Hand Held: Ergonomic 3-IN-1 with interchangeable lens sizes and nozzles.

Fiber cable length: 25 ft.

Wire feeder: Automatic with integrated control panel.

Cooling Method: Refrigerated Electronic Chiller (included).

Nozzle: Includes different sizes and types for various applications.

Operating Temperature: 10°C - 28°C.

Operating Humidity: 5% - 95% without water condensation.

Machine Energy Consumption: 4KW to 6KW, depending on the laser source power.

Voltage/Hertz: 220V/60Ghz 2P.

Warranty: One year for the laser source and electronic and mechanical components and six months for labor (the warranty does not include consumables or travel expenses).
