FlexMax Laser

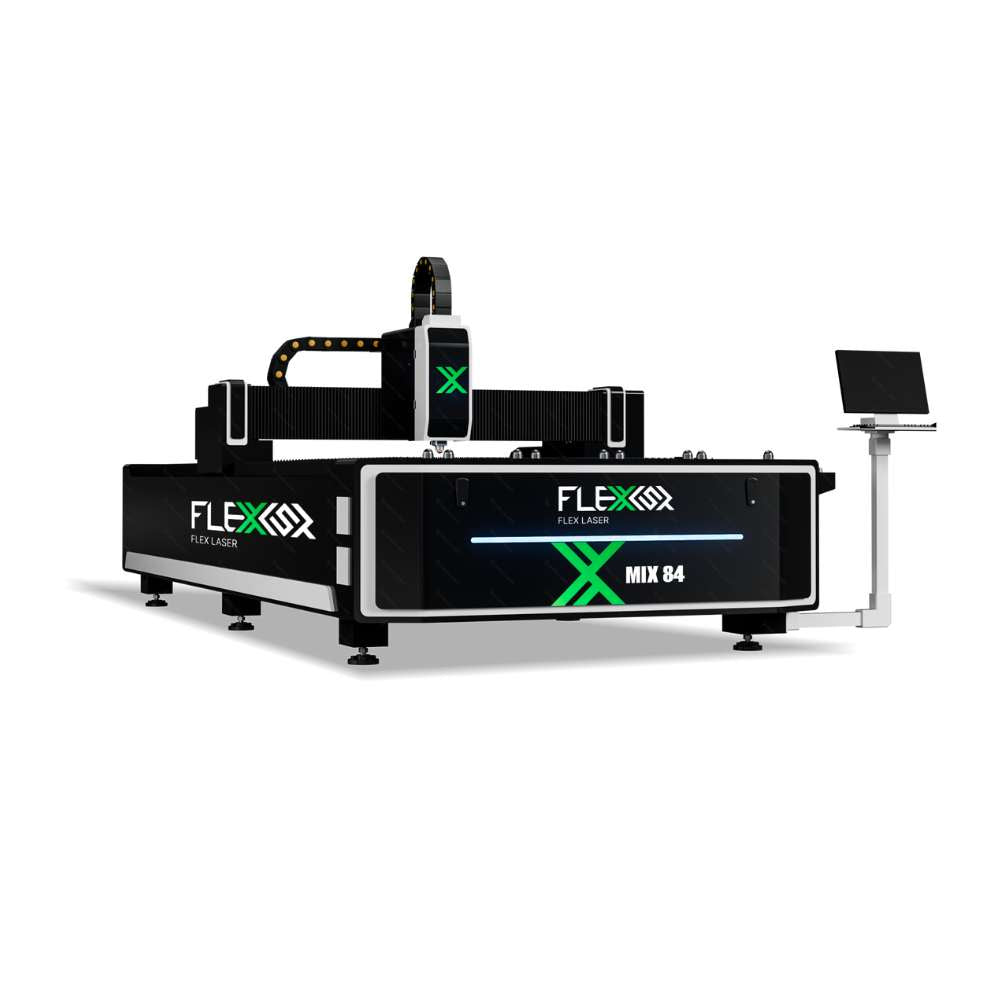

1500W to 3000W Fiber + 150W CO2 MIX Series Metal and Non-Metal Cutter 8 x 4 or 10x5 ft cutting table

1500W to 3000W Fiber + 150W CO2 MIX Series Metal and Non-Metal Cutter 8 x 4 or 10x5 ft cutting table

$54,000.00 USD
$54,000.00 USD
Sale Sold out

SALE METHOD: FROM THE FACTORY TO YOUR FACTORY WITH LOCAL TRAINING AND SUPPORT

Our NOVA Series includes:

✔ FREE Shipping* (Forklift is required)
✔ 4-DAY Full Pack On-site Installation and training
✔ 1500W, 2000W, or 3000W Fiber Laser Source + 150W CO2 RECI W8 Tube
✔ Working Area: 8 x 4', and 10 x 5'
✔ CypOne Professional Cutting Software
✔ Full Servo Movement System
✔ Dynamic Autofocus Laser Head
✔ Industrial Electrónic Chiller (Double)
✔ Industrial Grade Blower
✔ Automatic Lubrication System
✔ PC with Pre-Installed System

   Click here to request a MIX Series quick quote

Payments As Low As: $ 1,139/mo CLICK HERE to APPLY NOW
View full details

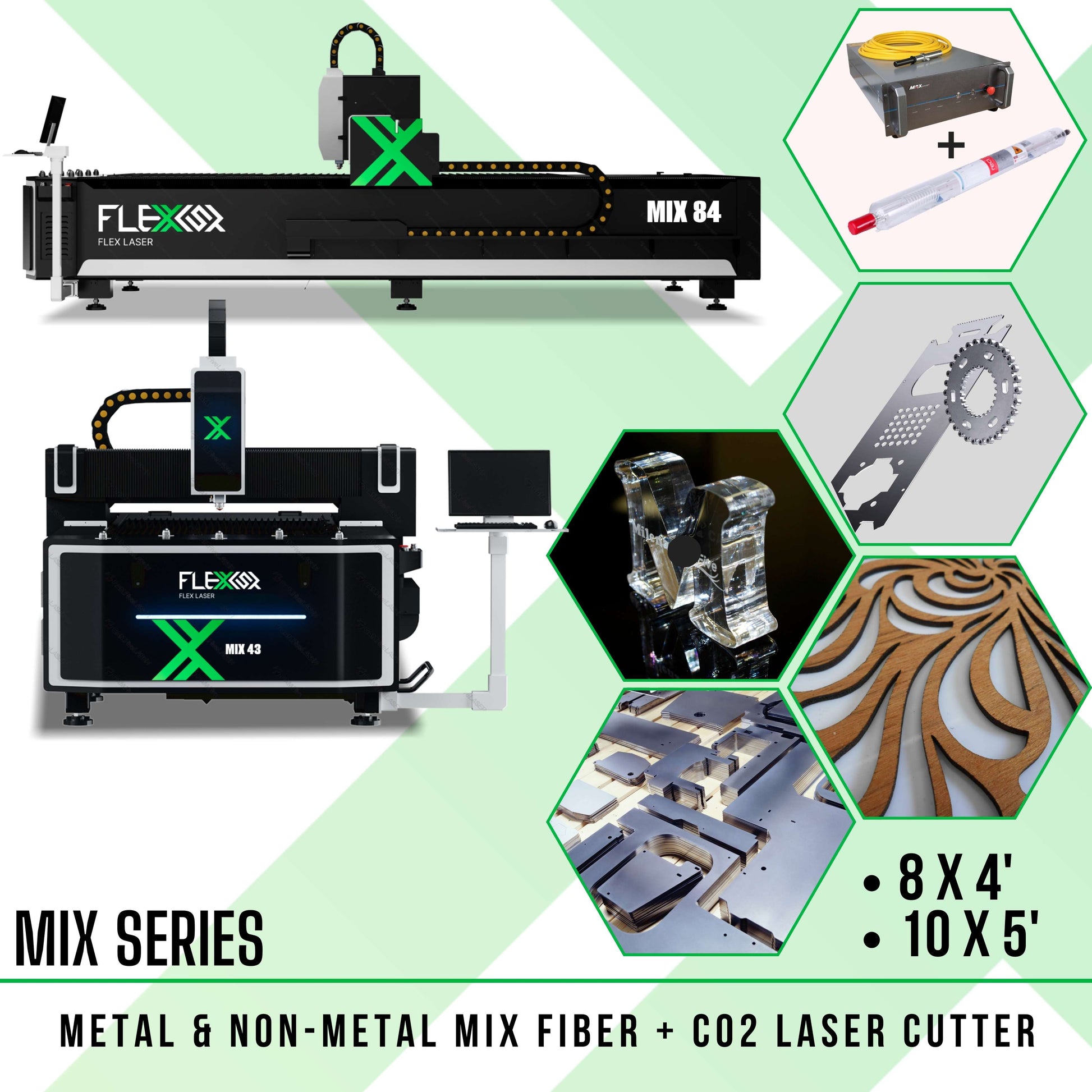

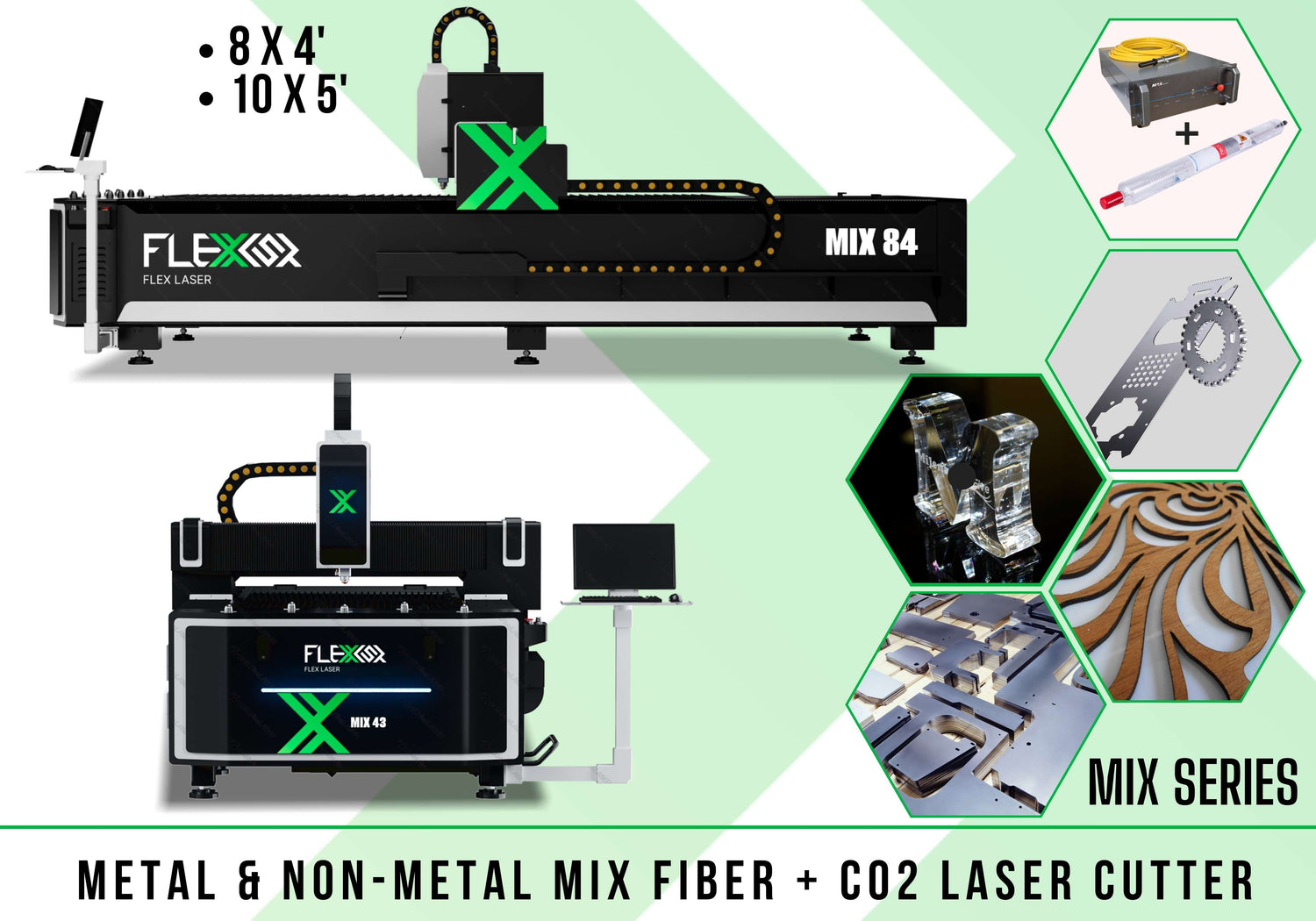

INTRODUCTION

Behold our MIX Series Fiber + CO2, the machine that does it all. With its powerhouse metal cutting capabilities and the versatility of a classic CO2 laser, it's the ultimate choice for cutting wood, plastics like acrylic, and more.

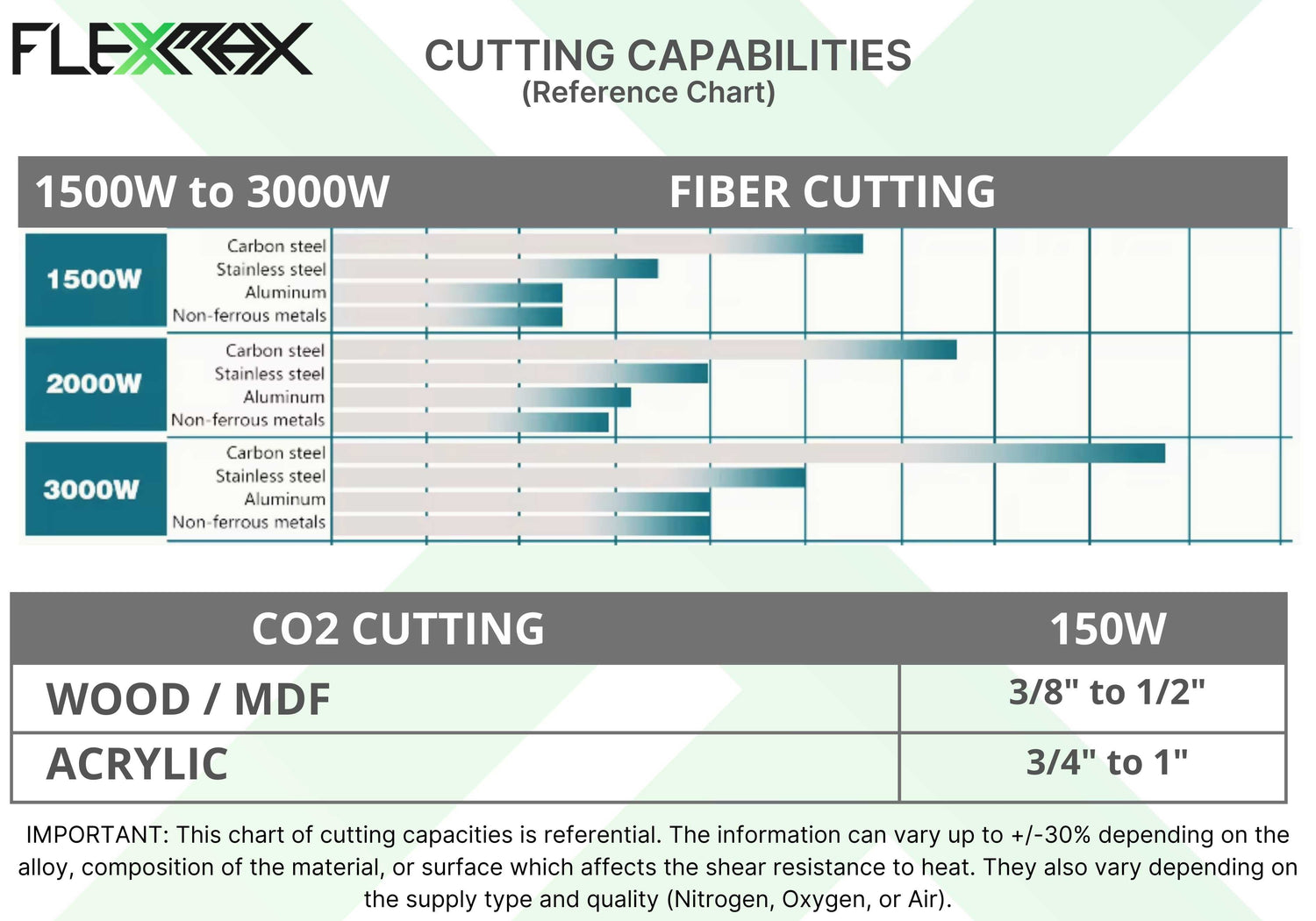

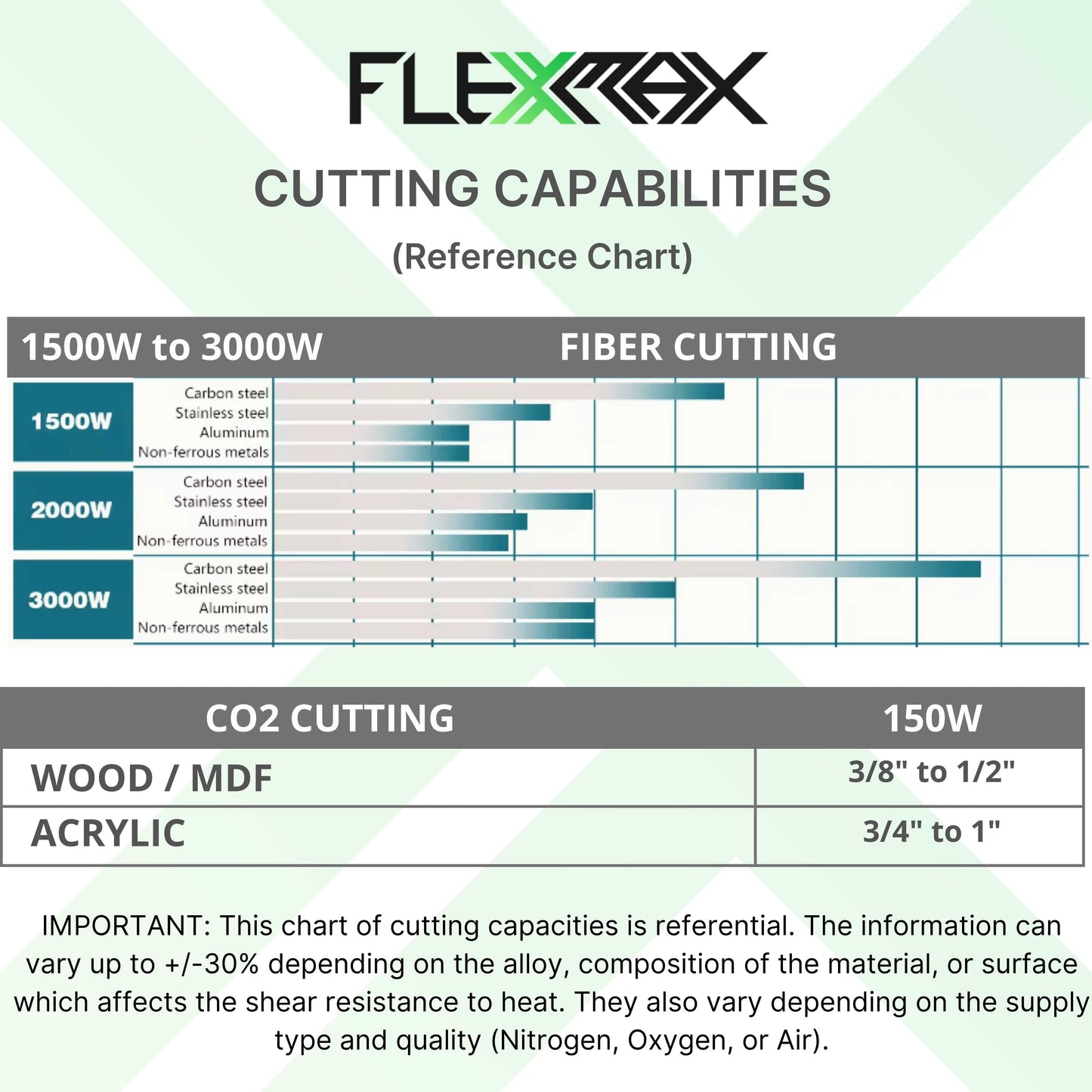

WHAT CAN I CUT?

The MIX Series excels at cutting various metals, including stainless steel, mild steel, and galvanized steel, as well as non-metals such as aluminum, wood, and acrylic.

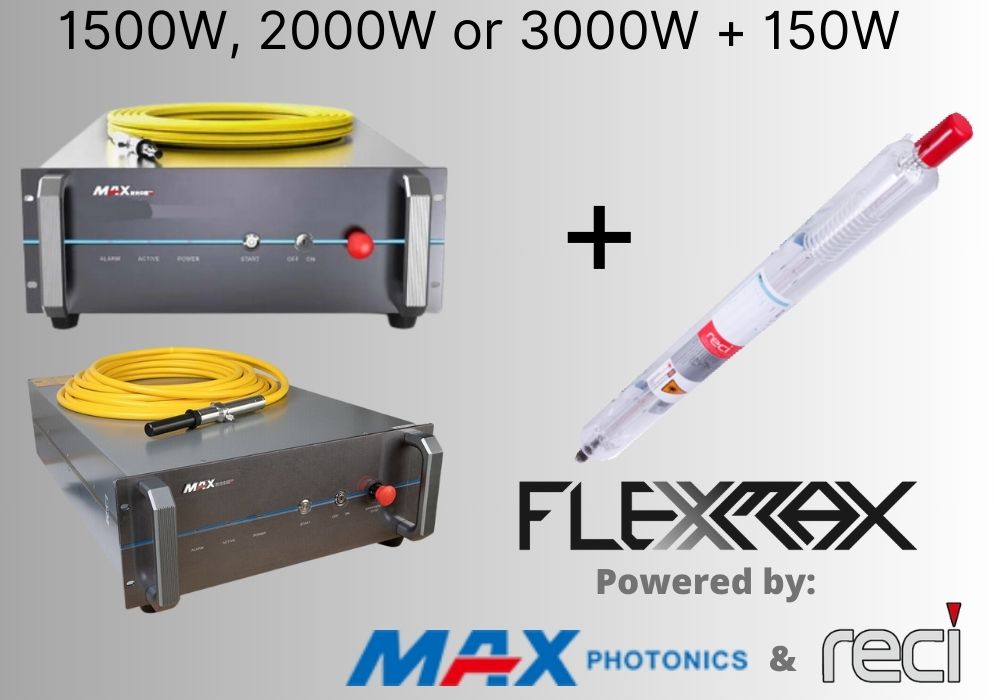

FIBER + TUBE LASER

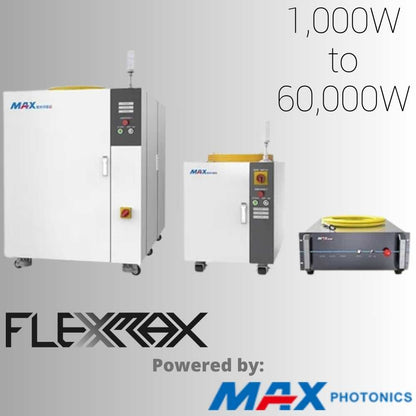

Our fiber metal cutters are equipped with Max Photonics laser generators; TOP BRAND specializes in manufacturing fiber optic metal cutting sources and RECI 150W CO2 Tube.

AUTOFOCUS HEAD

Metal sheets are never entirely flat; they have waves or are uneven. The “Auto Focus” is an efficient height regulation system with a height sensor equipped in the cutting head; it detects the distance from the output nozzle of the laser light beam to the material's surface.

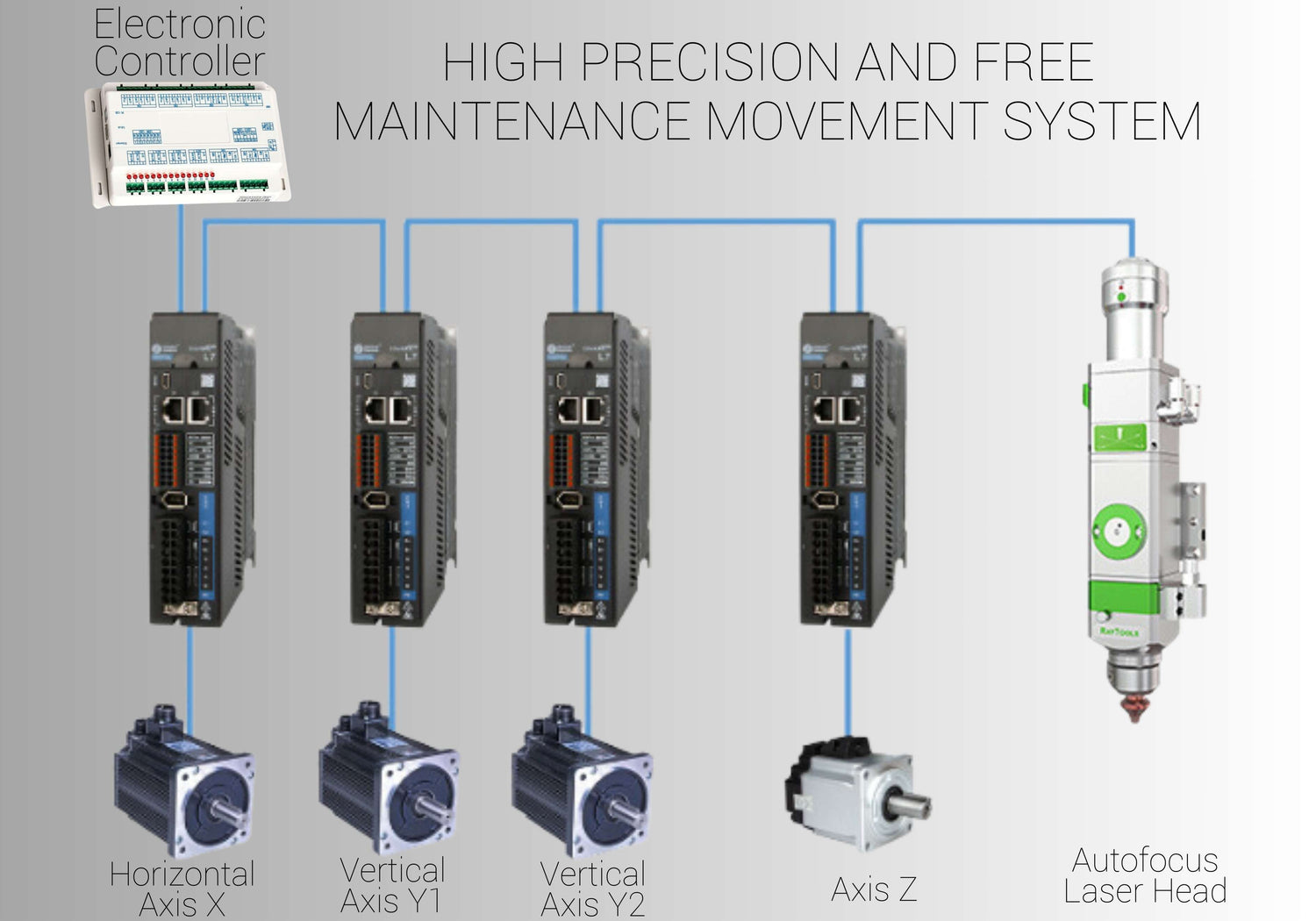

SERVO MOVEMENT

High precision, detailed capacity, and speed are crucial to obtaining the best laser cutting quality. FlexMax Laser incorporates servo motors on the steel X, Y, and X axes and digitally controlled drivers. Servo technology is known for its high precision and smooth movements.

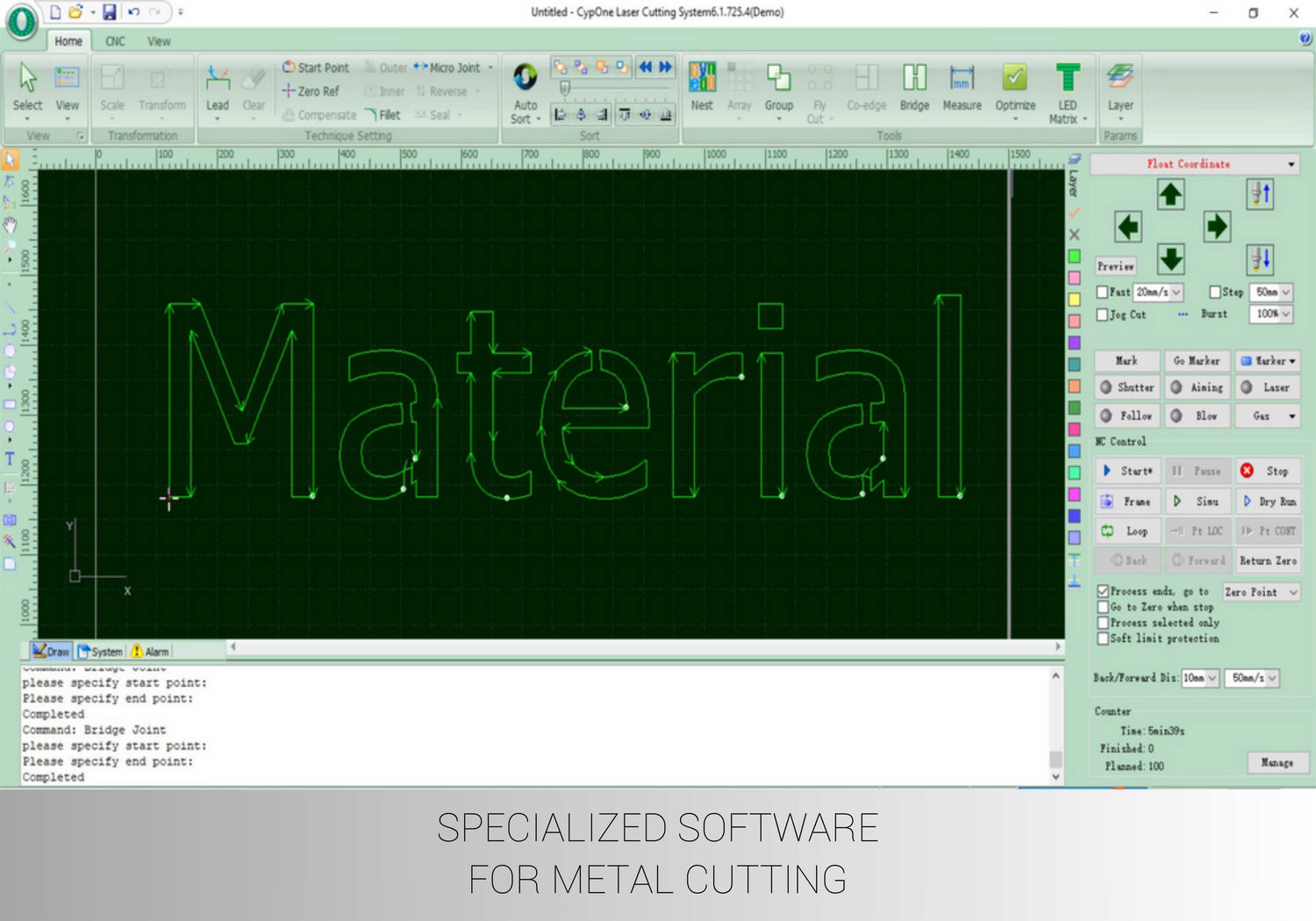

CUTTING SOFTWARE

We include one of the world's most potent and popular cutting software, pre-installed CypOne or Au3tec. These systems offer total and efficient machine control and allow processing files DXF, PLT, and AI LXD.

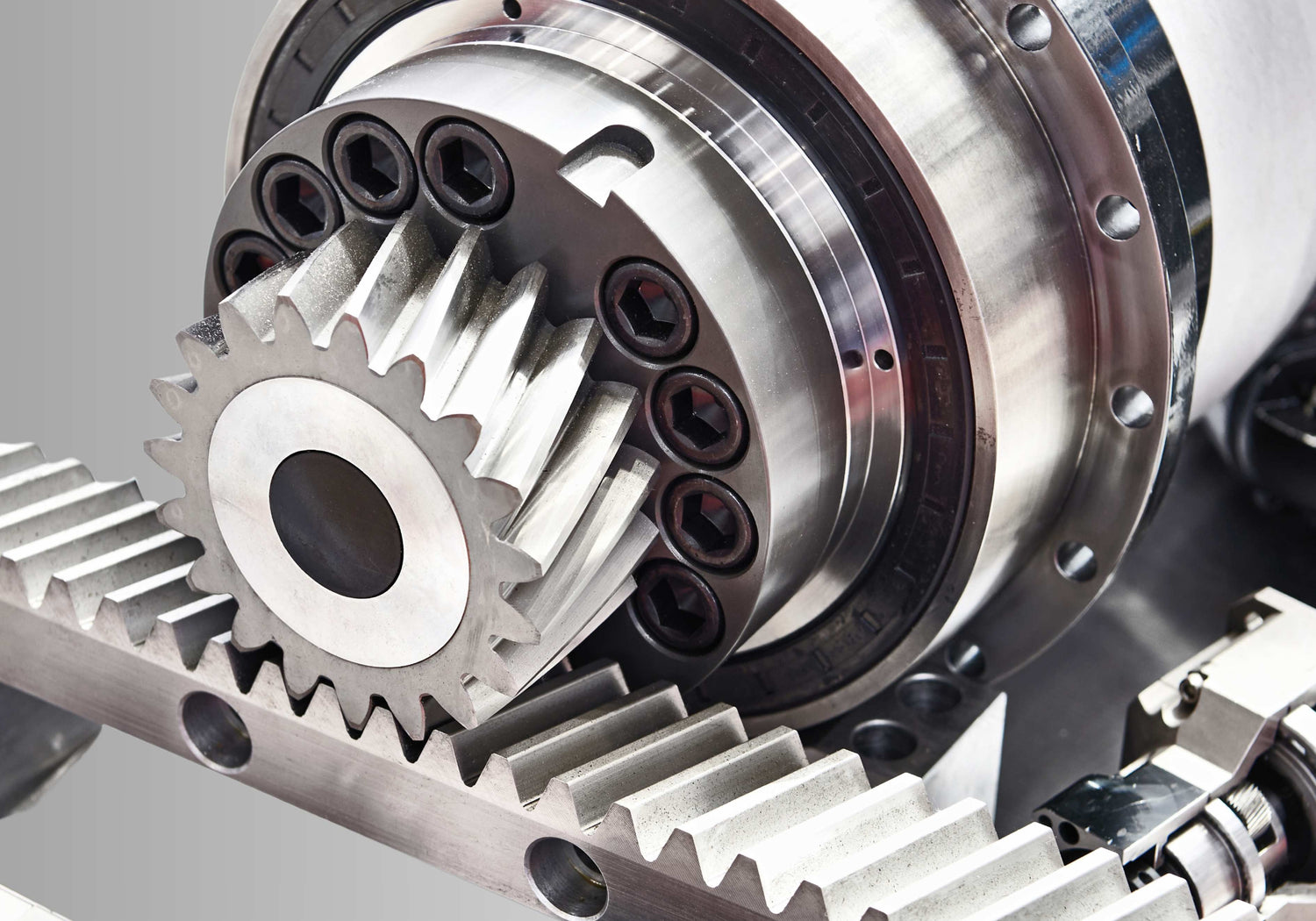

RACK AND PINION DRIVE SYSTEM

The best displacement system. FlexMax is among the first to include this system based on precise gears that help reduce vibration and achieve unsurpassed cutting quality with “0” offsets. It also minimizes wear and tear on the machine throughout the years.

DSP EASY CONTROL

FlexMax Laser includes an industrial-grade DSP hand controller to operate the metal cutter efficiently from a safe distance.

AUTOMATIC LUBRICATION

Lubrication and maintenance are basic needs for a laser cutter, so we equip them with automatic lubrication systems, which have a technique that transfers oil to sensitive places.

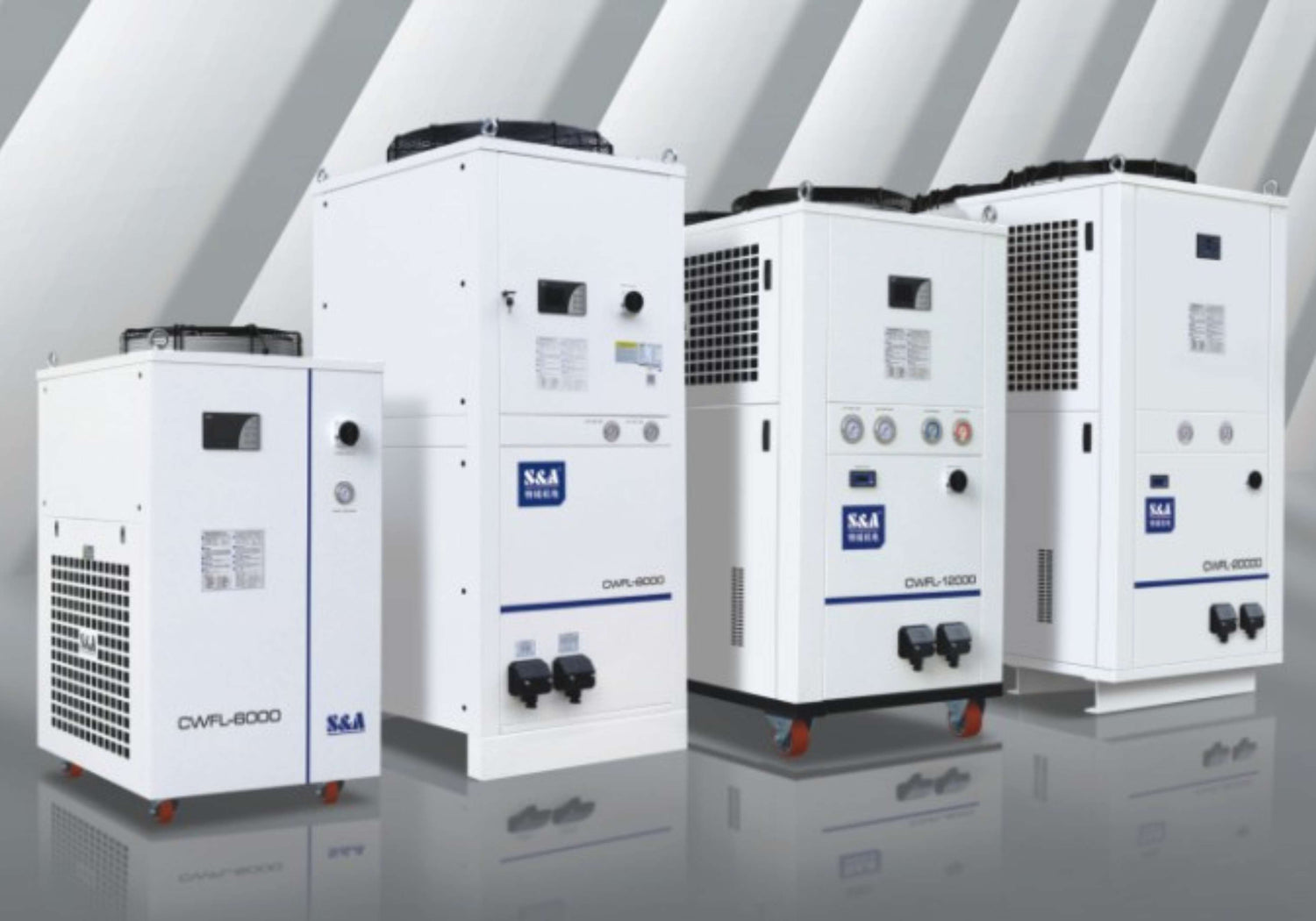

INDUSTRIAL COOLING SYSTEM

This includes an “industrial” water cooling and refrigeration system; the chiller is electronically controlled, keeping the water cold. Just adjust the temperature required by the system.

FUME BLOWER SYSTEM

Maximizes the suction of dust and particles, achieving clean cuts. It channels the fumes and gases generated when working with varied materials.

FACTORY TO FACTORY

We ship the machine directly from the factory to your location anywhere in the USA. Once it arrives, an engineer will install it and train you to use it with your materials and projects. ALL-INCLUSIVE!

1500W to 3000W Fiber + 150W CO2 MIX Series Metal and Non-Metal Cutter 8 x 4 or 10x5 ft cutting table

TECHNICAL SPECIFICATIONS


TECHNICAL SPECIFICATIONS - MIX Series

Laser Generator Power: MAX 1500W, 2000W, or 3000W.

Laser Tube: RECI W8 150W.

Machine Weight: MIX10X5: 4,200 lbs, MIX8X4: 3,700 lbs.

Machine Dimensions: MIX10X5: 195 x 89 x 75 inches, MIX8X4:  165 x 86 x 75 inches.

Machine Work Area: MIX10X5: 10 x 5 ft, MIX8X4: 8 x 4 ft

Software: CypOne.

Supported Formats: DXF, PLT, AI, LXD.

Cutting Speed: 07 to 10 meters x min depending on the material and thickness (Up to 1G).

Movement System: Full Servo

Transmission type: Rack and Pinion (Taiwan).

Re-positioning Accuracy: ±0.02/1000 (mm).

Velocity of Displacement: 10,000mm/min.

Lubrication System: Automatic.

PC with Pre-installed Software: Yes (Integrated).

Cooling Method: 2 units of CWL Refrigerated Electronic Chiller (included).

Gas and Smoke Extraction (Blower): Industrial 2.2kw Included.

Operating Temperature: 10°C - 28°C.

Operating Humidity: 5% - 95% without water condensation.

Machine Energy Consumption: 4KW to 7KW, depending on the laser source power.

Voltage/Hertz: 220V/60Ghz 3P.

Warranty: 2-YEAR for 3000W generators, 1-YEAR for 1500W and 2000W generators, electronic and mechanical components, and six months for the laser tube and labor (The warranty does not include consumables or travel expenses).

WARRANTY

In FlexMax Laser & CNC Machines we exceed our compromise with our customers. Our most important goal is to full fill your expectations and needs.


We provide outstanding customer service to satisfy our customer request.



FLEXMAX LASER & CNC MACHINES ALSO OFFERS:

  • COMPLETE INVENTORY OF SPARE PARTS FOR ALL THE LASER ENGRAVER & CUTTER MODELS.
  • SPECIALIZED TECHNICAL SUPPORT.
  • FAST RESPONSE TO OUR CUSTOMER REQUIREMENTS
  • CONTINUOUS IMPROVEMENTS IN OUR SERVICE.

FlexMax Laser & CNC Machines offers a comprehensive warranty policy, for more information and complete terms: CLICK HERE
