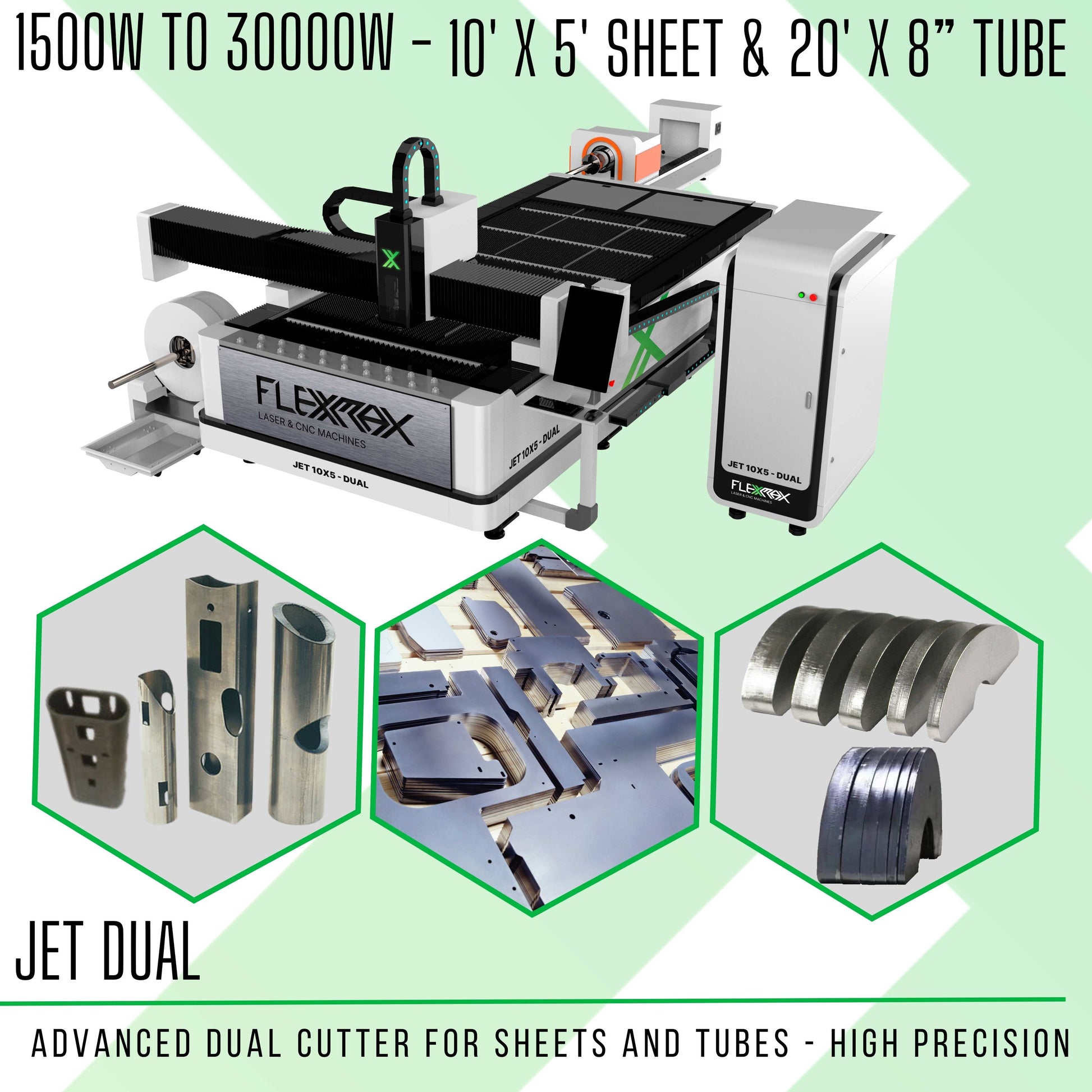

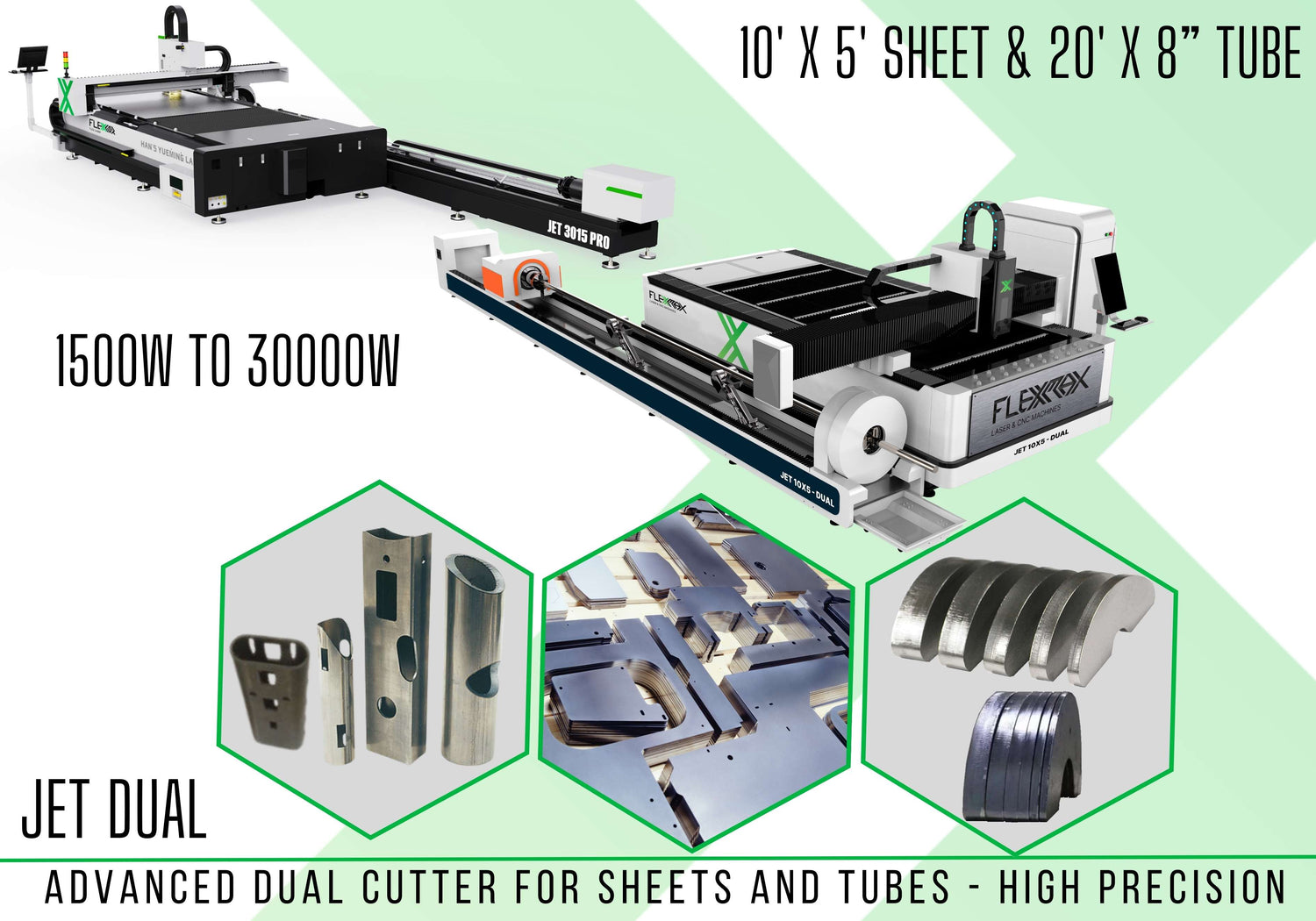

1500W to 3000W FlexMax Fiber Laser Metal Cutter JET DUAL Series for 10x5' sheets and 20' tubes cutting area

1500W to 3000W FlexMax Fiber Laser Metal Cutter JET DUAL Series for 10x5' sheets and 20' tubes cutting area

$98,000.00 USD
$98,000.00 USD
Sale Sold out

SALE METHOD: FROM THE FACTORY TO YOUR FACTORY WITH LOCAL TRAINING AND SUPPORT

Our JET DUAL Series Cutter includes:

✔ FREE Shipping* (Forklift is required)
✔ 5-DAY Full Pack On-site Installation and training
✔ 1500W, 2000W, or 3000W Fiber Laser Source
✔ Working Area: 10 x 5' (sheet) and 20' length x 8" diameter (tubes)
✔ CypCut Professional Cutting Software
✔ YASKAWA Japanese Servo Movement System
✔ Raytools Dynamic Autofocus Laser Head
✔ S&A Industrial Electrónic Chiller
✔ Automatic Lubrication System
✔ PC with Pre-Installed System

Click here to request a JET Series quote request

Payments As Low As: $ 2,068/mo CLICK HERE to APPLY NOW
View full details

INTRODUCTION

Our JET DUAL Series is the most suitable method for cutting metal sheets and tubes. The FlexMax Laser Fiber, model JET10X5-DUAL, is the safest, fastest, economical, and cleanest way to cut metals such as stainless steel, carbon steel, galvanized steel, and aluminum.

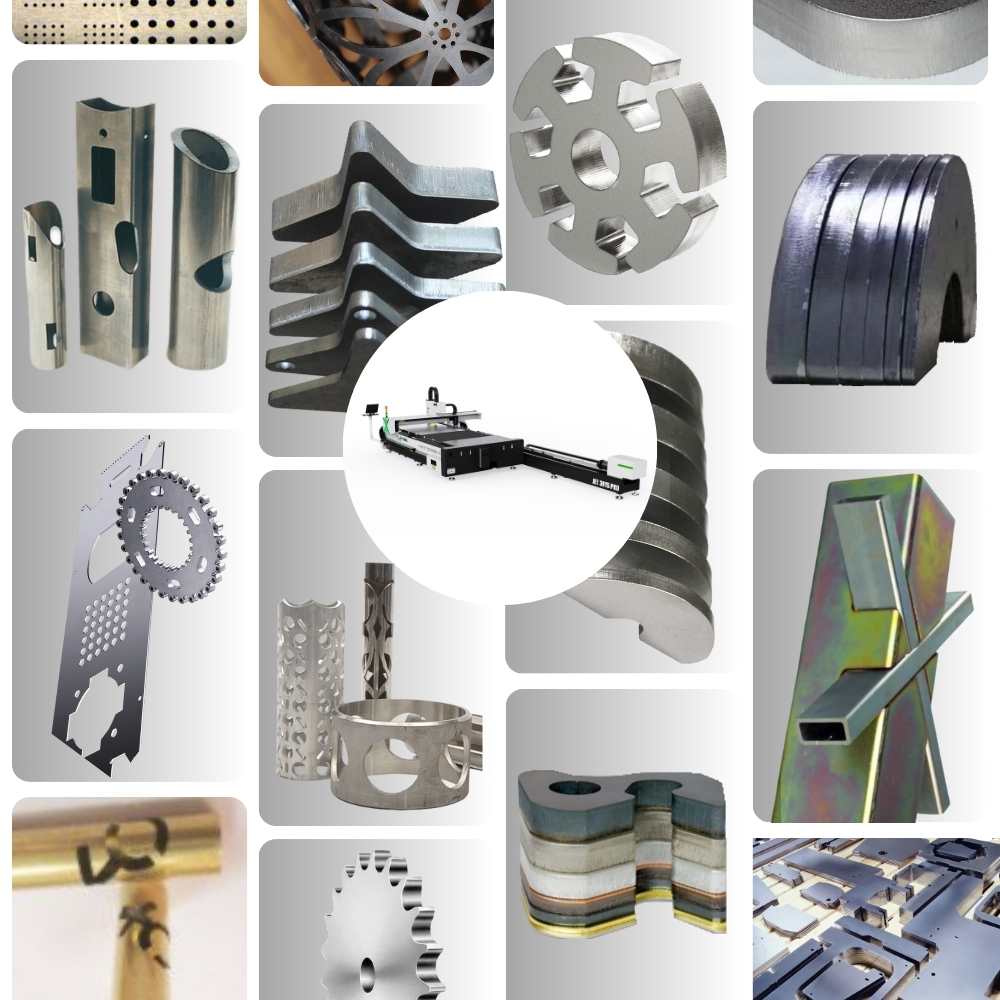

WHAT CAN I CUT?

Our NOVA Series can cut stainless steel, carbon steel, mild steel, Galvanized steel, and aluminum. This chart is referential and can vary by up to +/-30% depending on the alloy, material composition, surface, supply type, and quality (Nitrogen, Oxygen, or Air).

LASER SOURCE

Our fiber metal cutters are equipped with Max Photonics laser generators, TOP BRAND specializes in manufacturing fiber optic metal cutting sources.



AUTOFOCUS HEAD

Metal sheets are never entirely flat; they have waves or are uneven. The “Auto Focus” is an efficient height regulation system with a height sensor equipped in the cutting head; it detects the distance from the output nozzle of the laser light beam to the material's surface.

YASKAWA SERVO

Yaskawa is a Japanese brand that specializes in producing servo movement systems for high-precision industrial machines. Servo technology is known for its high precision and smooth movements.

CYPCUT SOFTWARE

CypCut is the world's most popular cutting software for abundant online support material. This system offers total and efficient machine control and allows processing files DXF, PLT, and AI LXD.

RACK AND PINION DRIVE SYSTEM

The best displacement system. FlexMax is among the first to include this system based on precise gears that help reduce vibration and achieve unsurpassed cutting quality with “0” offsets. It also minimizes wear and tear on the machine throughout the years.

DSP EASY CONTROL

FlexMax Laser includes an industrial-grade DSP hand controller to operate the metal cutter efficiently from a safe distance.

AUTOMATIC LUBRICATION

Lubrication and maintenance are basic needs for a laser cutter, so we equip them with automatic lubrication systems, which have a technique that transfers oil to sensitive places.

INDUSTRIAL COOLING SYSTEM

This includes an “industrial” water cooling and refrigeration system; the chiller is electronically controlled, keeping the water cold. Just adjust the temperature required by the system.

FUME BLOWER SYSTEM

Maximizes the suction of dust and particles, achieving clean cuts. It channels the fumes and gases generated when working with varied materials.

FACTORY TO FACTORY

We ship the machine directly from the factory to your location anywhere in the USA. Once it arrives, an engineer will install it and train you to use it with your materials and projects. ALL-INCLUSIVE!

1500W to 3000W FlexMax Fiber Laser Metal Cutter JET DUAL Series for 10x5' sheets and 20' tubes cutting area

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS - JET DUAL Series

Laser Generator Power: 1500W, 2000W, or 3000W.

Laser Source Brand: MAX Photonics.

Machine Weight: 10,900 lbs.

Machine Dimensions: 260 x 155 x 77 inches (Includes the tube's cutting device).

Machine Work Area: 10 x 5 ft (sheet) / 20 ft length x 8" diameter )

Software: CypCut.

Supported Formats: DXF, PLT, AI, LXD.

Cutting Speed: 10 meters x min depending on the material and thickness (Up to 1.0G).

Movement System: Full Japanese Yaskawa Servo

Transmission type: Rack and Pinion (Taiwan).

Re-positioning Accuracy: ±0.02/1000 (mm).

Velocity of Displacement: 10,000mm/min.

Lubrication System: Automatic.

PC with Pre-installed Software: Yes (Integrated).

A/C System: Integrated for the electronic components zone.

Cooling Method: CWL Refrigerated Electronic Chiller (included).

Operating Temperature: 10°C - 28°C.

Operating Humidity: 5% - 95% without water condensation.

Machine Energy Consumption: 4KW to 8KW, depending on the laser source power.

Voltage/Hertz: 220V/60Ghz 3P.

Warranty: 3-YEAR for 6000W generators, 2-YEAR for 4000W and 3000W generators, 1-YEAR for electronic and mechanical components, and six months for labor (The warranty does not include consumables or travel expenses).

WARRANTY

In FlexMax Laser & CNC Machines we exceed our compromise with our customers. Our most important goal is to full fill your expectations and needs.


We provide outstanding customer service to satisfy our customer request.



FLEXMAX LASER & CNC MACHINES ALSO OFFERS:

  • COMPLETE INVENTORY OF SPARE PARTS FOR ALL THE LASER ENGRAVER & CUTTER MODELS.
  • SPECIALIZED TECHNICAL SUPPORT.
  • FAST RESPONSE TO OUR CUSTOMER REQUIREMENTS
  • CONTINUOUS IMPROVEMENTS IN OUR SERVICE.

FlexMax Laser & CNC Machines offers a comprehensive warranty policy, for more information and complete terms: CLICK HERE
