FlexMax Laser

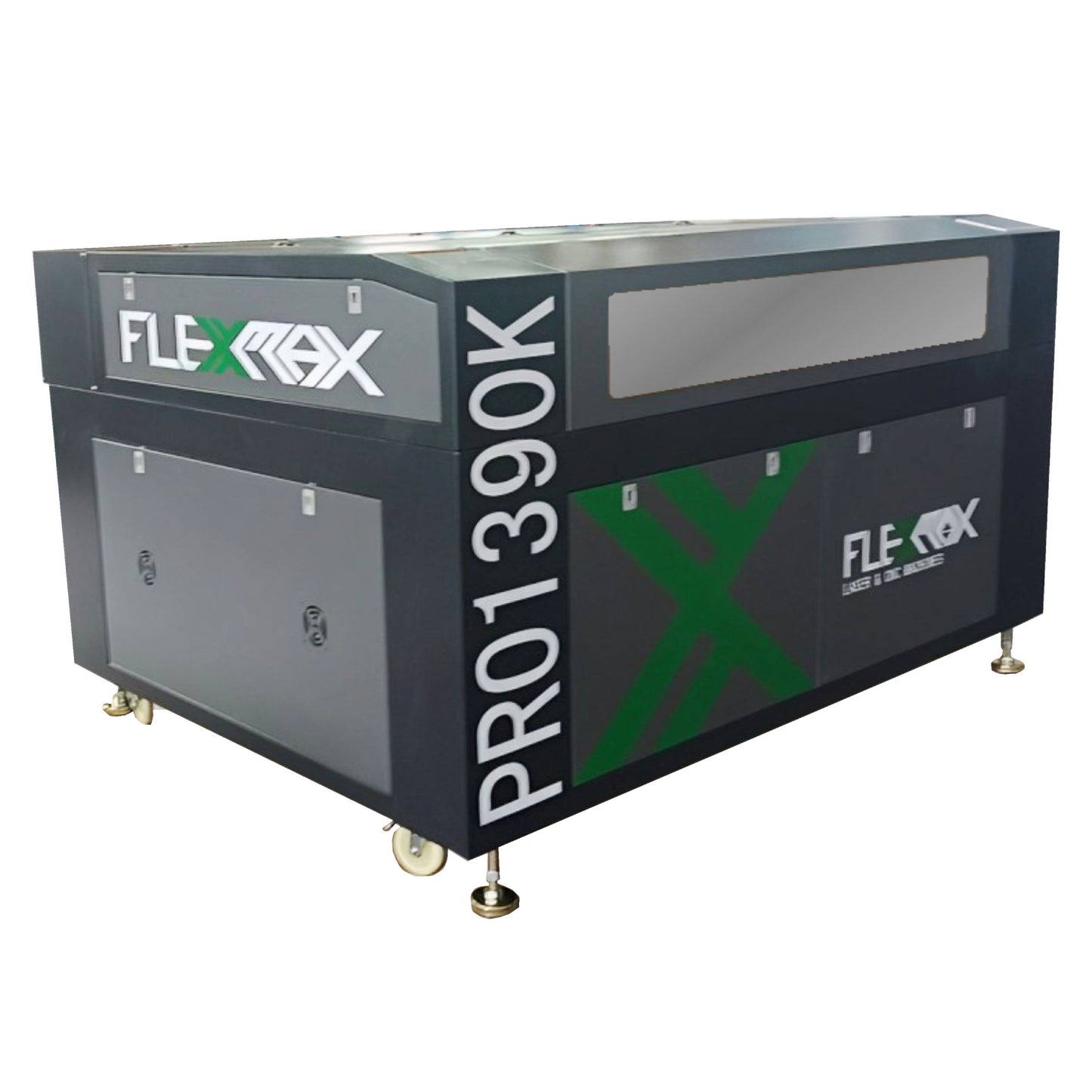

24 x 16, 36 x 24, 51 x 36 inches Up/Down worktable CO2 Cutting & Engraving machine FlexMax Laser PRO-K Series

24 x 16, 36 x 24, 51 x 36 inches Up/Down worktable CO2 Cutting & Engraving machine FlexMax Laser PRO-K Series

Regular price $5,990.00 USD
Regular price Sale price $5,990.00 USD
Sale Sold out

SALE METHOD: FROM OUR CA WAREHOUSE TO YOUR FACTORY WITH OPTIONAL LOCAL TRAINING AND SUPPORT

Our PRO-K Series Up/Down CO2 tube cutting machine includes:

✔ Rotary Tool to engrave cylindrical objects
✔ 20-inch automatic adjustable worktable (up/down)
✔ 100W CO2 Laser Tube (PRO5136K), or 80W (PRO2416K, PRO3624K)
✔ Working Area: 24x 16, 36 x 24, and 51 x 36"
✔ Includes LightBURN™ Software Last Version (SmartCarve optional)
✔ Equipped with a micro-step X/Y high-precision movement system
✔ Features an LCD color screen
✔ Comes with either aluminum slats or a honeycomb heavy-duty worktable
✔ Includes a red dot point light to check the position of the laser beam
✔ Equipped with an S&A CW5200 Industrial Electronic Chiller
✔ 750W Industrial Grade Blower included
✔ Independent air regulation system for adjusting the cut or engrave quality
✔ Various integrated safety features include door sensors, emergency stop, pedal, etc.
✔ Operates at a 24/7 Cycle duty cycle

Click here to request a PRO Series quick quote

View full details

INTRODUCTION

The PRO-K Series is a versatile CO2 cutter and engraver with an Up/Down automatic worktable and rotary device, capable of performing cuttings and engravings on almost any product or material.

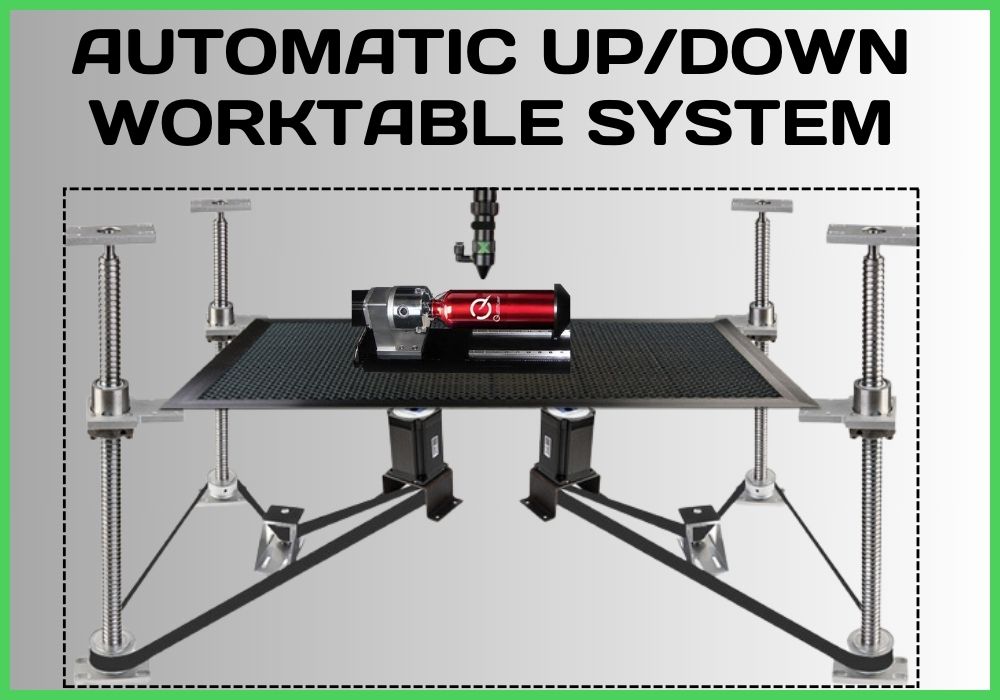

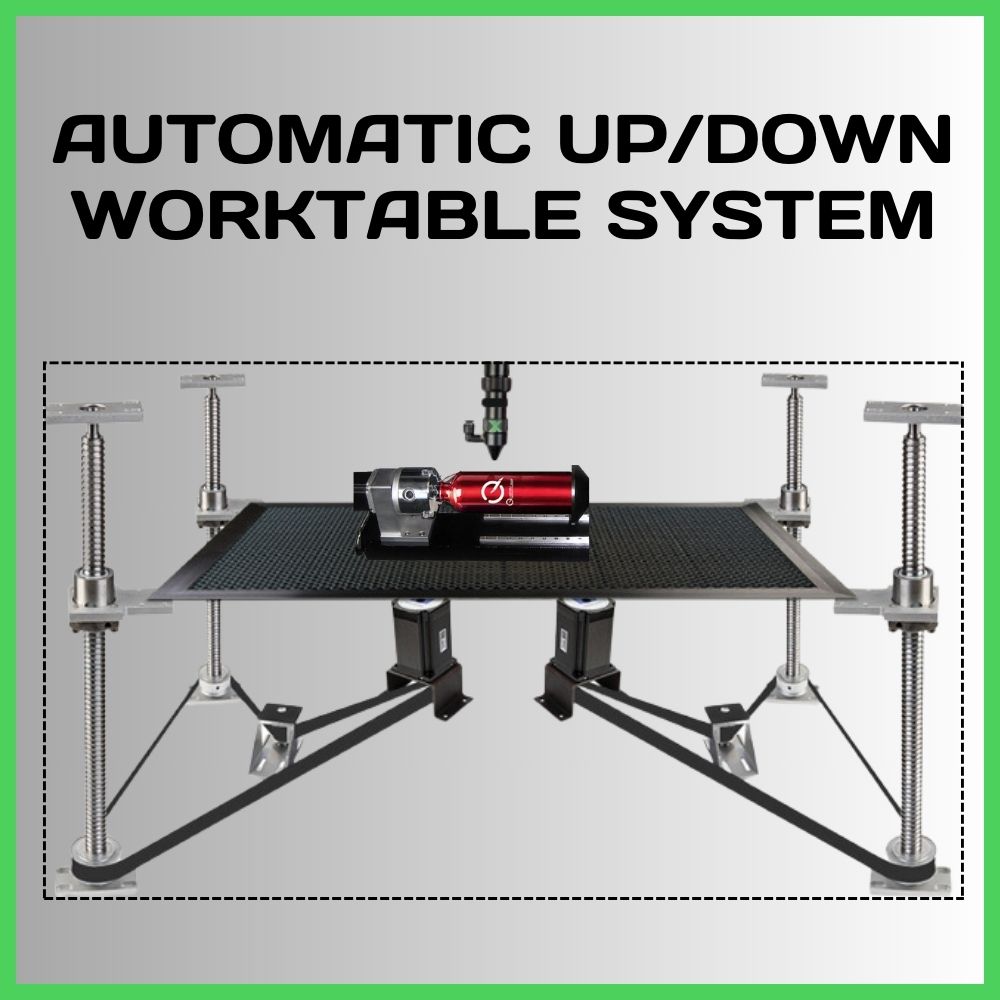

UP/DOWN WORKTABLE

The PRO-K comes with a heavy-duty adjustable up-and-down worktable system, capable of supporting and working with large products of varying thicknesses.

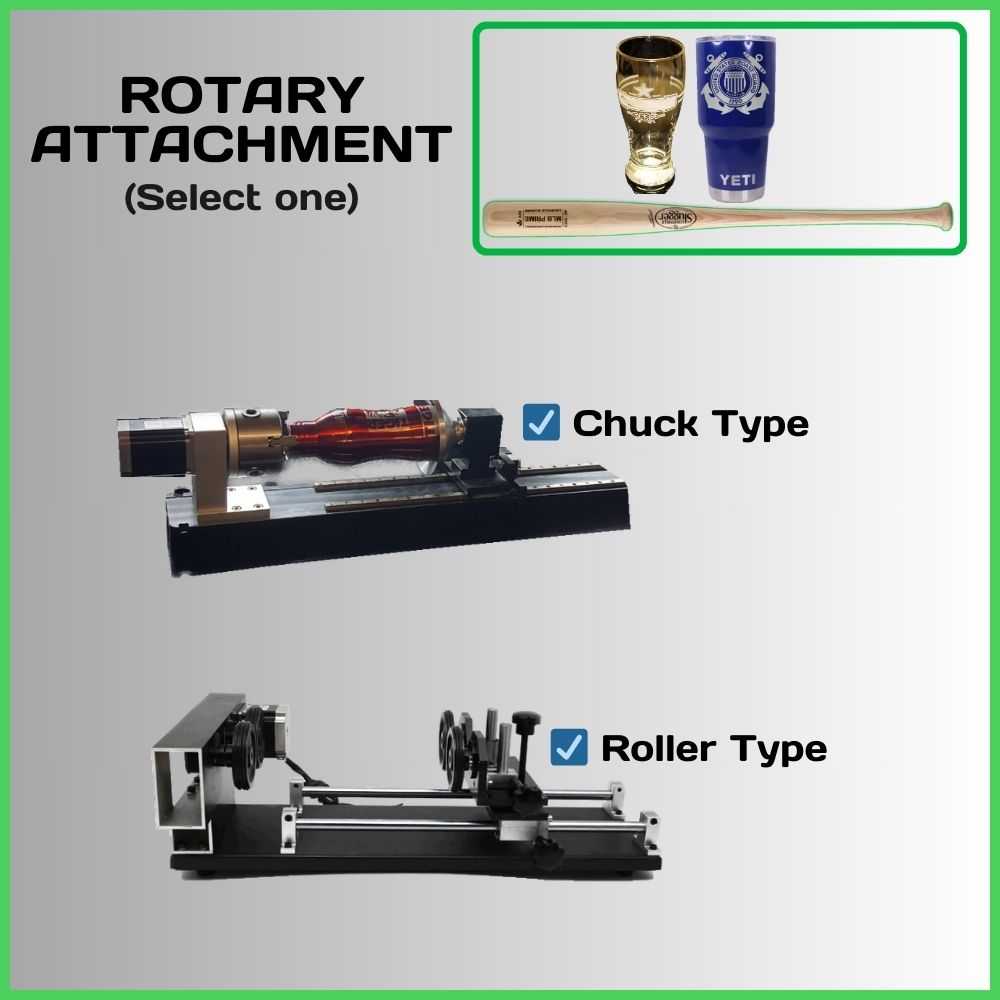

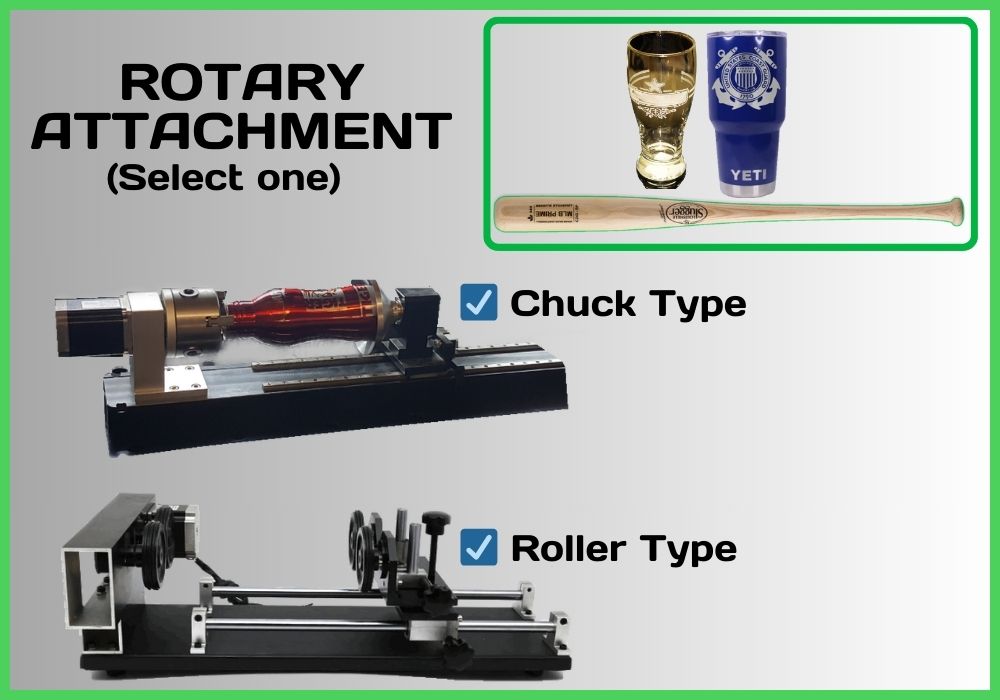

ROTARY TOOL

Our laser cutter and engraver includes a rotating device called “ROTARY TOOL”; this is useful, ideal, and necessary to engrave with high-quality and precision all types of
cylindrical articles.

WHAT CAN CUT OR ENGRAVE?

Experience the power of the PRO, which can efficiently process various soft and hard materials. Our system delivers exceptional engraving and cutting performance.

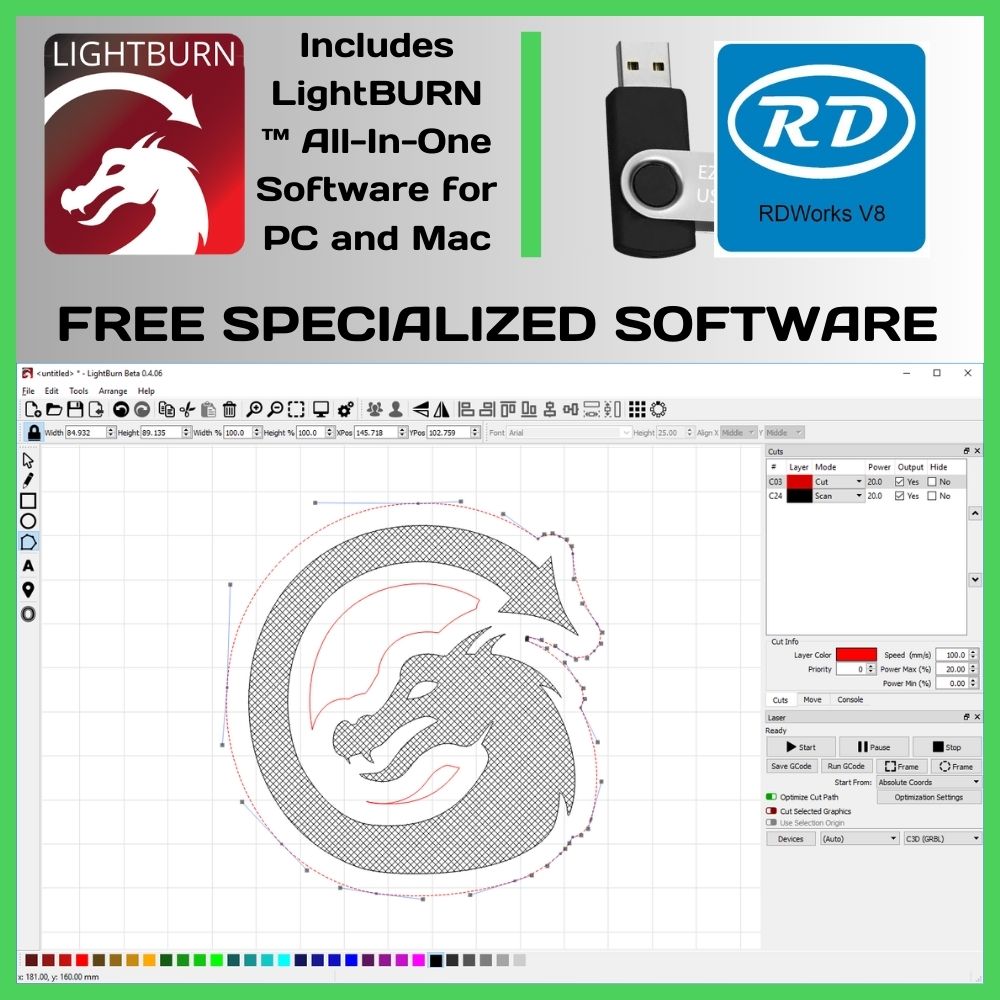

LIGHTBURN

LightBURN™ is the most popular and widely used software in the United States. It is valued for its simple, comprehensive functions and extensive online support and tips.

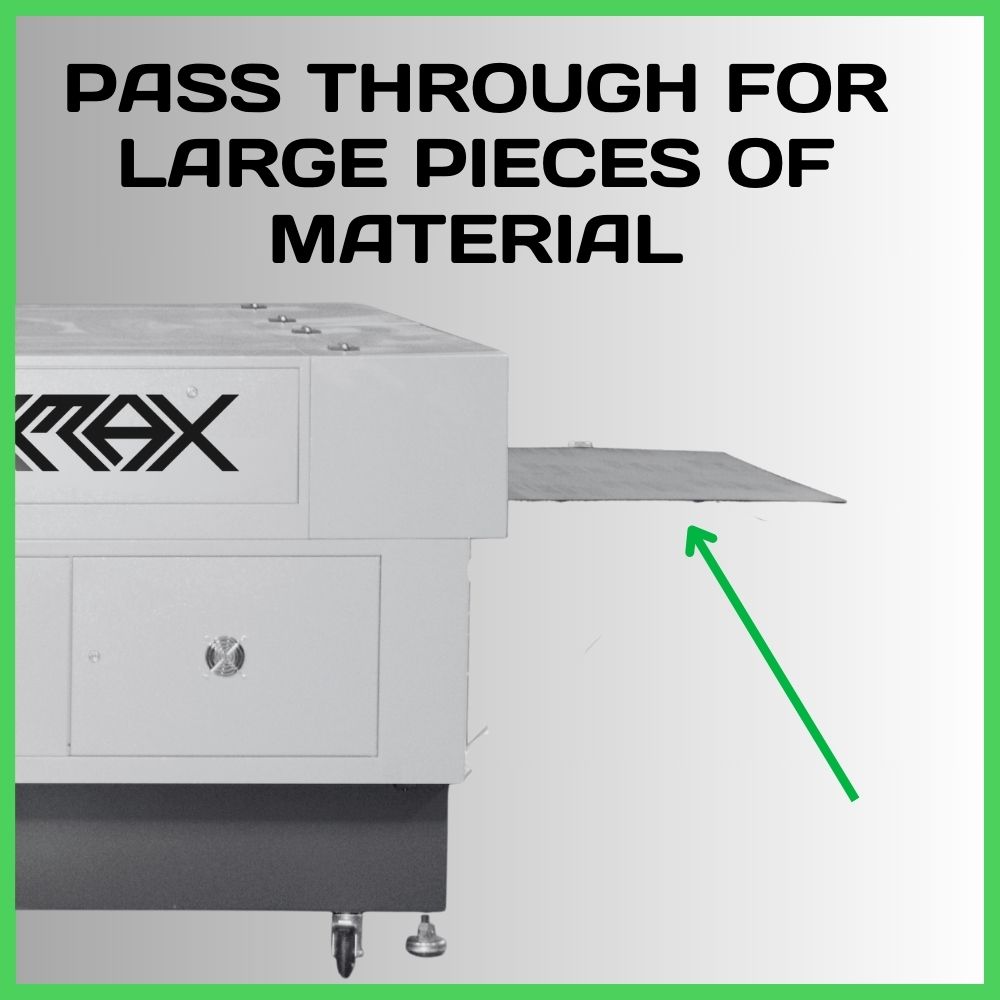

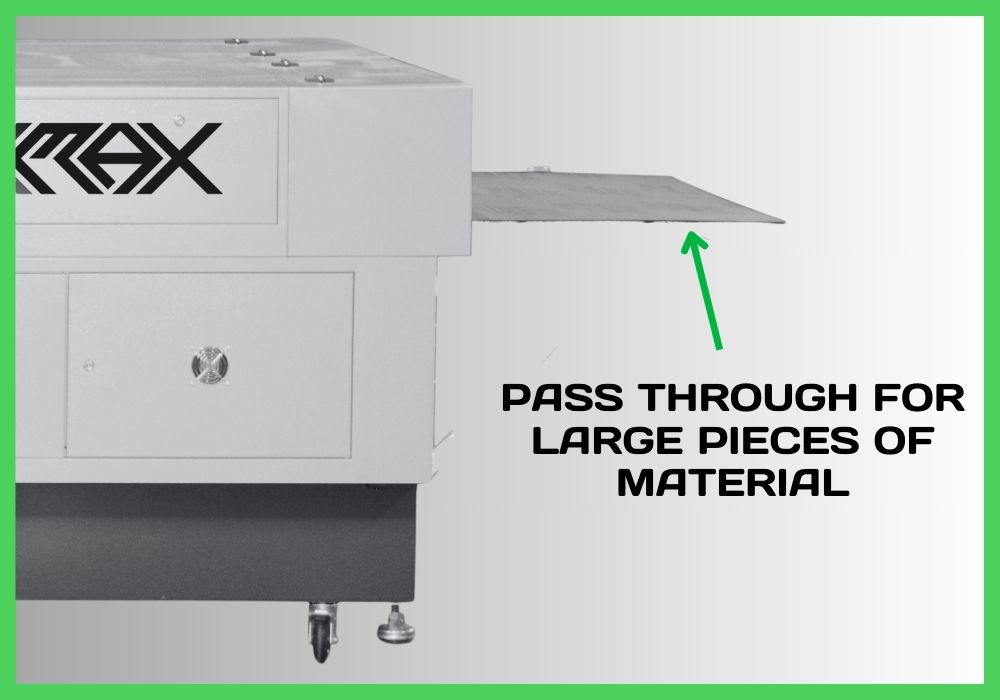

PASS THROUGHT

If a large work area is required to handle medium—and large-sized jobs and projects, the PRO-K is the system you need. It includes a pass-through from back to front.

AIR VALVE

Adjusting the lens nozzle is crucial to achieving cleaner and finer work. It must adapt to the specific material and type of work (cutting or engraving) being carried out at that moment.

EFFICIENT TRANSMISSION

Thanks to its high-quality components, its laser head positioning system, engraving, and cutting performance are fast and highly accurate.

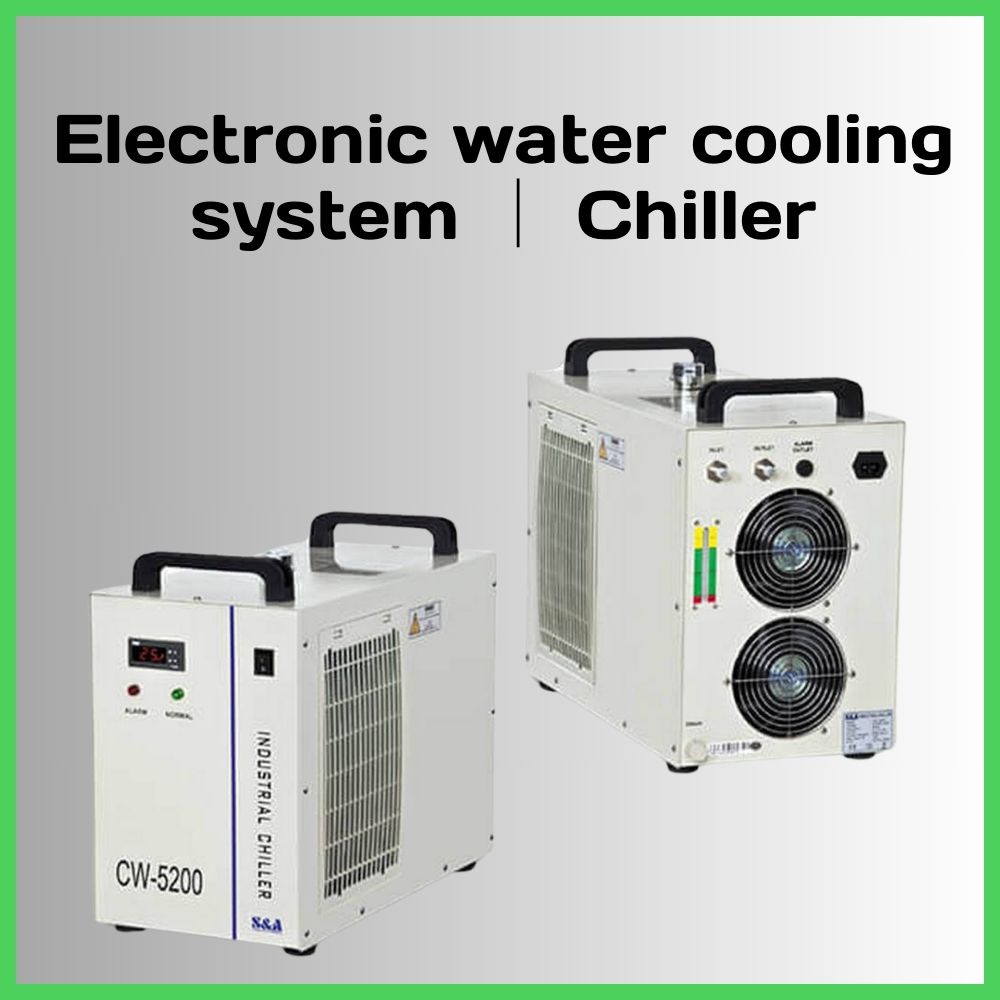

COOLING SYSTEM

The electronic water chiller helps to maintain the laser tube temperature during operation by keeping the water at a consistent room temperature.

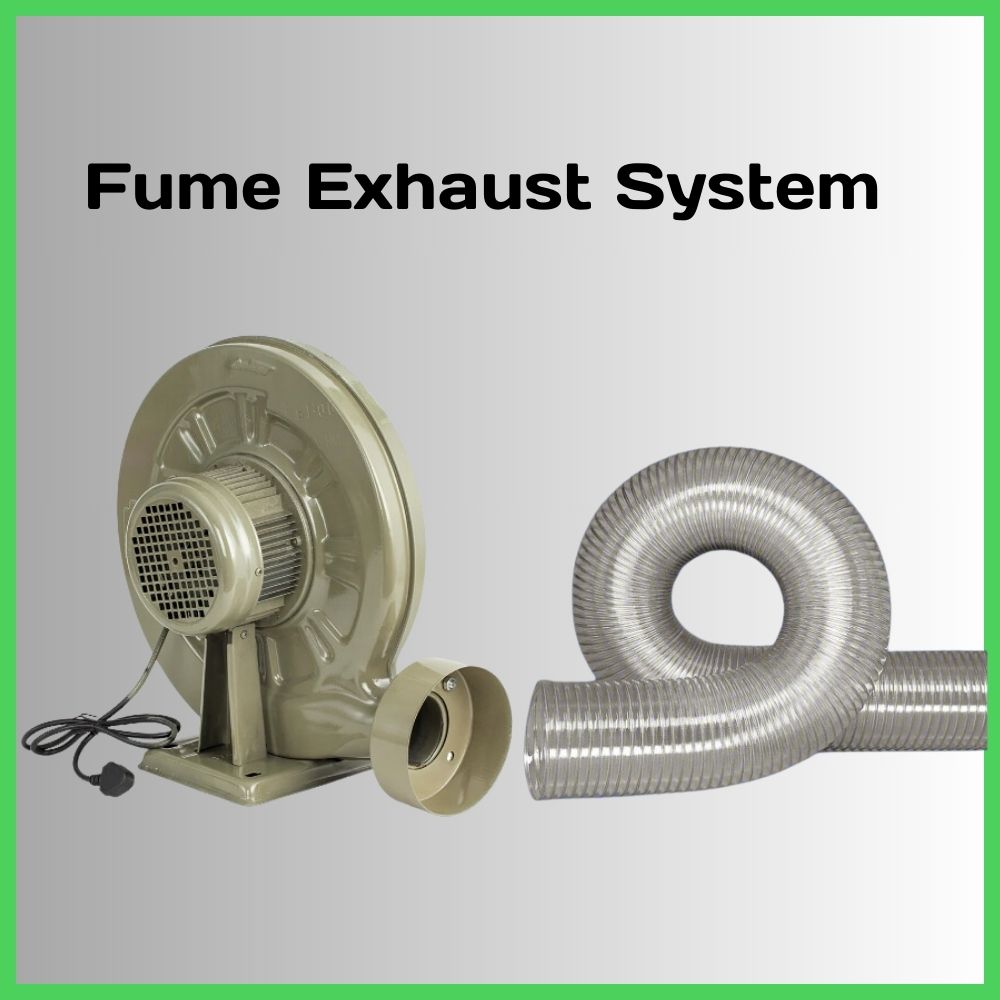

EXHAUST SYSTEM

Our PRO Series has a 750W exhaust system and 8 feet of flexible ventilation duct tubing, which can be installed when the machine is operated in a small enclosed area.

INSTALLATION & TRAINING

Optionally, we offer installation and on-site training as part of our ALL-INCLUSIVE services. Our technician will travel to your location to ensure you receive the best service.

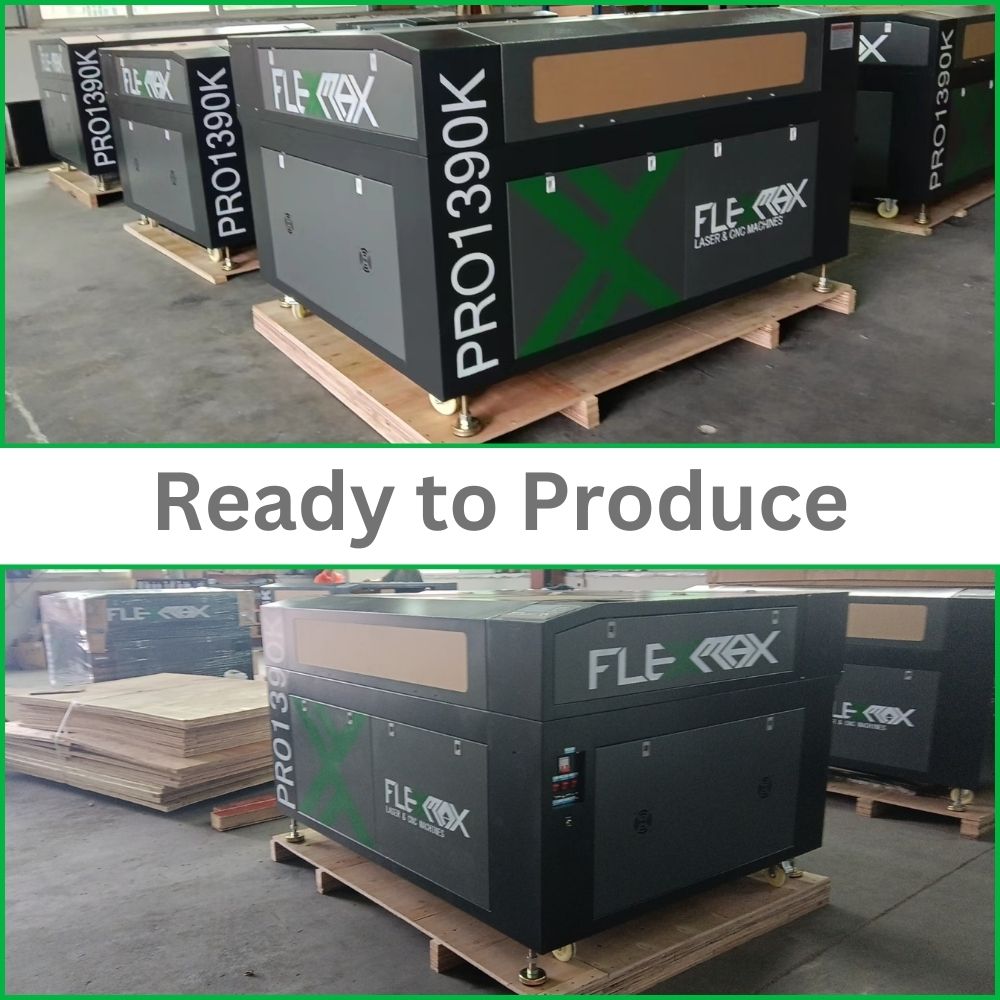

WAREHOUSE TO FACTORY

FlexMax Laser receives containers frequently in the La Puente, CA warehouse. You can pick the machine up there, and we can deliver it to your location.

24 x 16, 36 x 24, 51 x 36 inches Up/Down worktable CO2 Cutting & Engraving machine FlexMax Laser PRO-K Series

Collapsible content

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS - PRO K Series

Laser Type: CO2 High-temperature resistant glass tube.

Laser Power: PRO2416-K and PRO3624-K: 80W. PRO5136-K: 100W.

Working Area: PRO2416-K: 24 x 16 x 20 (Z) inches. PRO3624-K: 36 x 24 x 20 (Z) inches. PRO5136-K: 51x 36 x 20 (Z) inches.

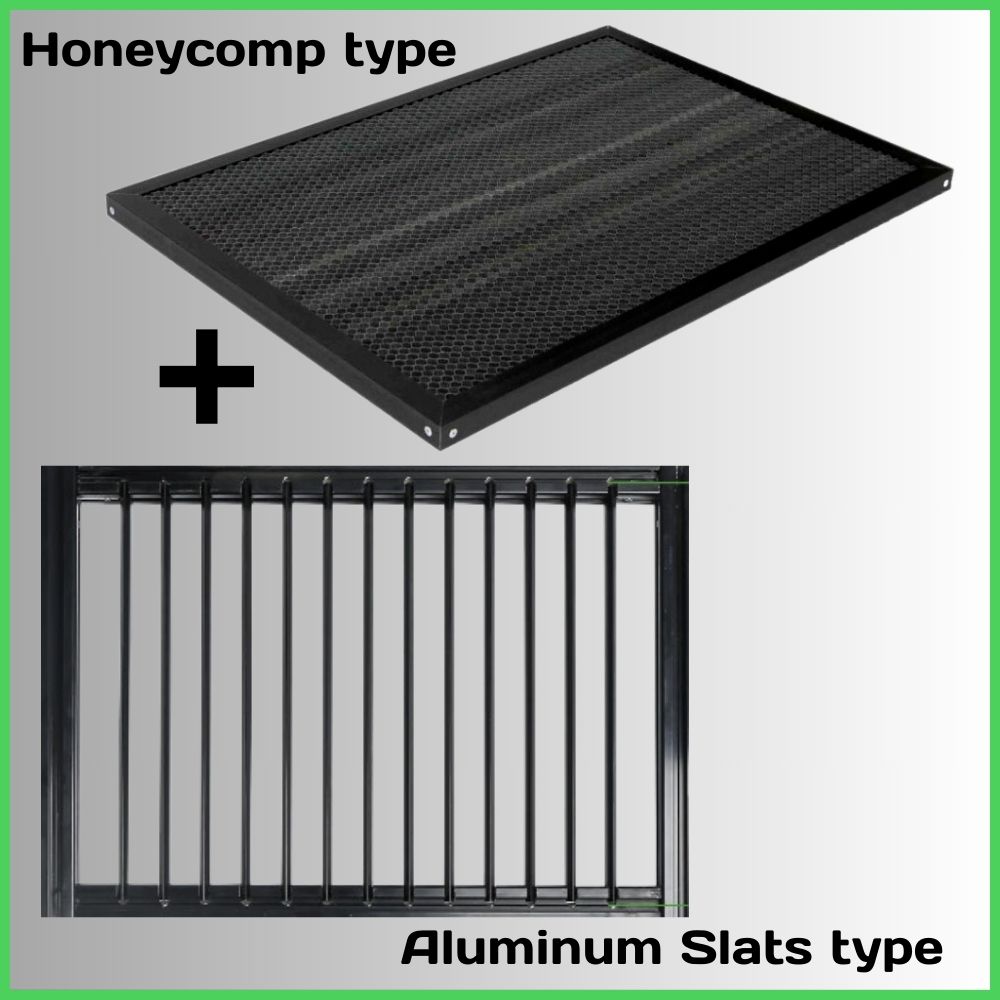

Worktable Type: two types, removable honeycomb, and aluminum Knife Slats.

Machine & Crate Weight: PRO2416-K: 375 pounds (170 kg) Crate: 460 lbs. PRO3624-K: 485 pounds (220 kg) Crate: 570 lbs. PRO5136-K: 760 Pounds (345kg) Crate: 890 lbs.

 Material Pass-through: Yes (Back to Front side)

Machine & Crate Dimensions: PRO2416-K: 53” Length x 37” Width x 42” Height. PRO3624-K: 57” Length x 45” Width x 42” Height. PRO5136-K: 76” Length x 63” Width x 48” Height.

Driving System: 2-phase high-precision step motor driver.

Resolution Ratio: 5000 DPI

Control Software: LightBURN™ Last Version, RD Works Last Version (You Choose), vectors, and graphics processing.

Graphics Format Supported: BMP, JPG, GIF, JPEG, and JPE.

Vector format supported: ai, cut, dsb, dst, dxf, nc, oux, out, plt, smc, yln, ymd, saw, at.

Connection Port: USB (Wireless Options Available).

Working Voltage: 220V 60 GHz. (110V Available using our voltage regulator option)

Power Consumption: PRO2416-K: 1200W. RO3624-K: 1300W. PRO5136-X2: 1520W

Operation Temperature: 5°C - 25°C (41 °F- 77 °F).

Operating humidity: 5 - 95% Non-condensing.

Manuals: Installation, Operation, and Maintenance Digital).

Warranty: 1-Year

WARRANTY

In FlexMax Laser & CNC Machines we exceed our compromise with our customers. Our most important goal is to full fill your expectations and needs.


We provide outstanding customer service to satisfy our customer request.



FLEXMAX LASER & CNC MACHINES ALSO OFFERS:

  • COMPLETE INVENTORY OF SPARE PARTS FOR ALL THE LASER ENGRAVER & CUTTER MODELS.
  • SPECIALIZED TECHNICAL SUPPORT.
  • FAST RESPONSE TO OUR CUSTOMER REQUIREMENTS
  • CONTINUOUS IMPROVEMENTS IN OUR SERVICE.

FlexMax Laser & CNC Machines offers a comprehensive warranty policy, for more information and complete terms: CLICK HERE
