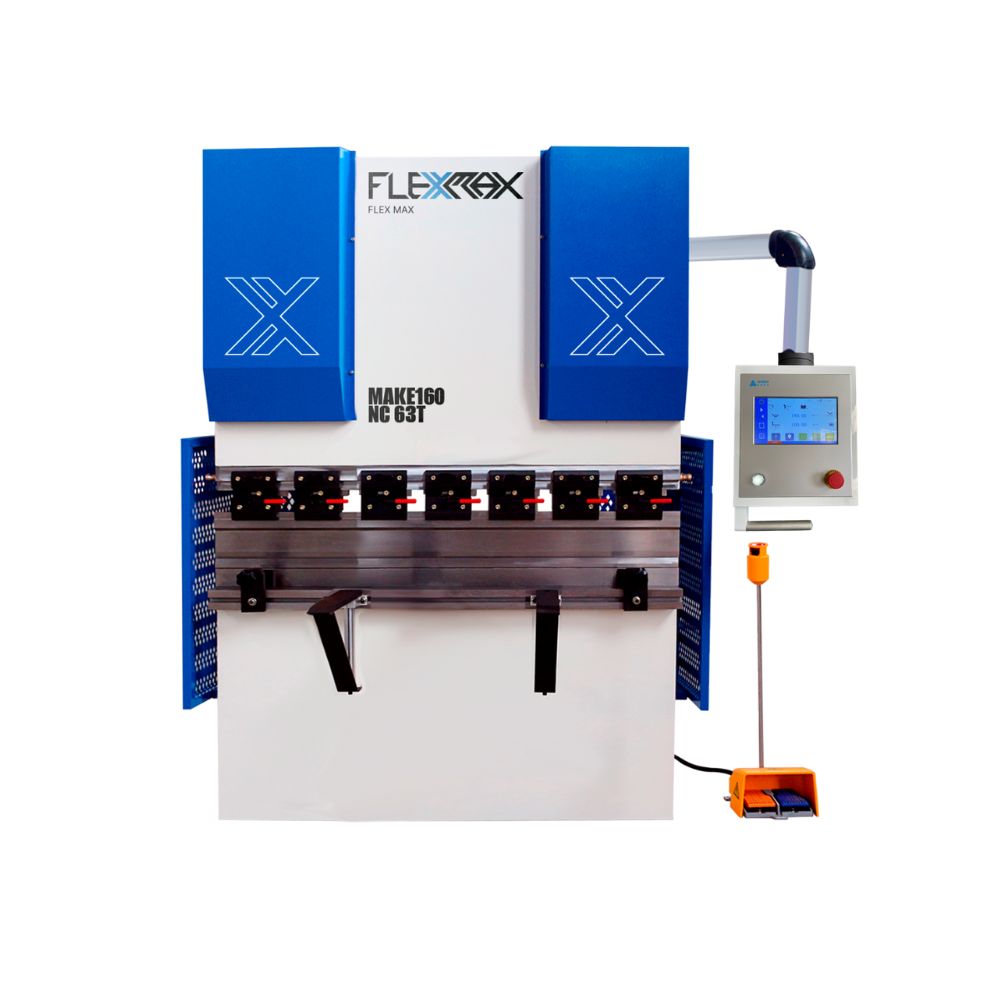

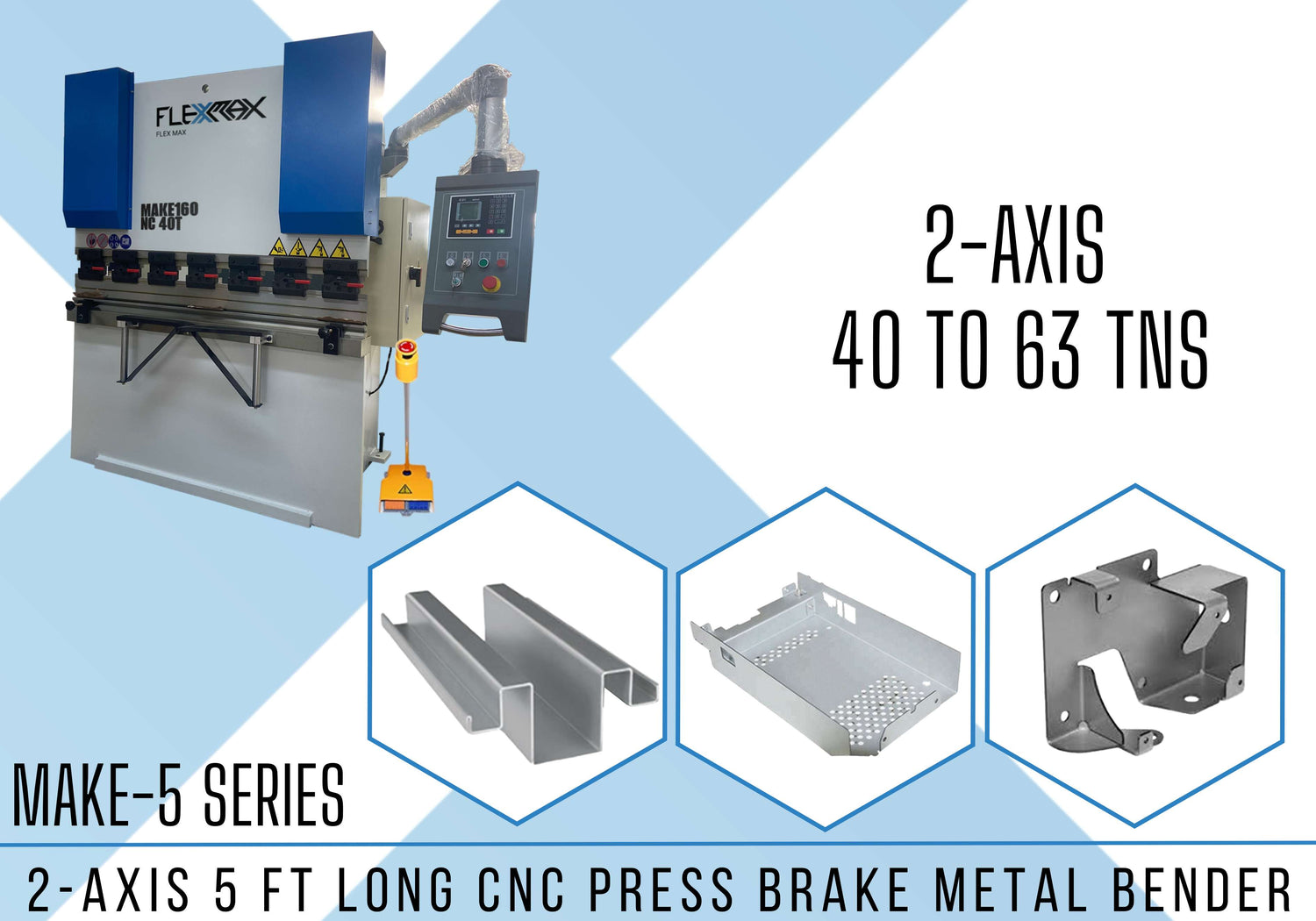

40tns to 63tns, 5ft long FlexMax CNC 2-AXIS MAKE-5 Series Hydraulic Press Brake Metal Bender

40tns to 63tns, 5ft long FlexMax CNC 2-AXIS MAKE-5 Series Hydraulic Press Brake Metal Bender

$26,000.00 USD
$26,000.00 USD
Sale Sold out

SALE METHOD: FROM THE FACTORY TO YOUR FACTORY WITH LOCAL TRAINING AND SUPPORT

Our MAKE-5 Series 5.2 feet long press brake metal bender includes:

✔ FREE Shipping* (Tow truck crane is required to unload)
✔ 3-DAY Full Pack On-site Installation and training
✔ 40 and 63 tons force pressure
✔ 5.2 feet long bending area (Available 8 ft and 10ft)
✔ 40 tons bending capacity: Mild steel from C12 (5ft piece long) to 1/2" (8" piece long). Stainless steel bends at 30% less capacity on average, depending on the alloy
✔ 63 tons bending capacity: Mild steel from 3/16" (5ft piece long) to 1/2" (10" piece long). (Stainless steel bends at 30% less capacity on average, depending on the alloy)
✔ E21NC with 40 programs control system
✔ SIEMENS Powerful Motor
✔ 2 Axis (X/R) high precision movement
✔ Heavy-duty frame designed to reduce vibrations
✔ Rexroth by Bosch hydraulic valve to control the oil fluid perfectly
✔ First or Haldex hydraulic pump
✔ Gooseneck tooling Multi-Vee Die included
✔ The foot pedal grants complete overbending functions
✔ Schneider electric components
✔ Bend stainless steel, mild steel, aluminum, and brass

Click here to request a MAKE Series quick quote

Payments As Low As: $ 548/mo CLICK HERE to APPLY NOW
View full details

INTRODUCTION

Our MAKE-5 Series, with a 5-foot bending capacity, offers a hydraulic system with compact and simplified electricity. It is equipped with the E21NC control system and Rexroth hydraulic valve, which gives your project high-precision performance.

TOP COMPONENTS

Our MAKE Series features top-of-the-line components from the world's leading brands to ensure exceptional quality tailored to each model.

E21NC CONTROL

The E21NC is the most reliable and secure option available. Its key features include intelligent unilateral positioning and the capacity to store 40 programs, each with 25 steps.

BENDING OPTIONS

Experience support for standard tools available on the market, ideal for all your bending needs.

STANDARD GOOSENECK + MULTI-V

The package includes the multipurpose gooseneck punch, and the versatile MULTI-V die tool.

FOOT SWITCH

Experience the flexibility and durability of our foot switch, designed with its emergency button to ensure safe and secure operation. Achieve precision with ease.

TORSION BAR

Achieve less friction, longer lifespan, less resistance, fast-moving speed, multi-point control, easy gap adjustment, and less maintenance.

ADJUSTABLE R AXIS

The r-axis allows you to control the vertical movement of the back gauge with precision. The sturdy and smooth material ensures high precision, making your work easier.

SAFETY FEATURES

Ensure worker safety with our advanced MSD device and light curtain, providing laser protection against rapid slider movement. Protect against potential dangers and keep workers safe from harm.

FACTORY TO FACTORY

We ship the machine directly from the factory to your location anywhere in the USA. Once it arrives, an engineer will install it and train you to use it with your materials and projects. ALL-INCLUSIVE!

40tns to 63tns, 5ft long FlexMax CNC 2-AXIS MAKE-5 Series Hydraulic Press Brake Metal Bender

TECHNICAL SPECIFICATIONS

Models: MAKE-5-NC40T and MAKE-5-NC63T.
Controller: E21 NC Computer Controller with 40 programs control system.
Bending force: 40 tons (MAKE-5-NC40T) and 63 tons (MAKE-5-NC63T)
Bending area: 5.2 ft (63” / 1600mm)

AXIS: 2 Axis (X/R)
Punches: European type (facilitates quick change)
Cylinders: Hydraulic machined from solid with quality sealing
Distance between columns: 1200 mm
Throat depth: 250 mm
RAM stroke: 120mm
Maximum opening height: 250 mm
RAM speed reduction: 85 mm/sec
RAM Back/Work speed: 80mm/sec / 5~12mm/sec
Linearity of bent parts: 0.5 mm
Front Sliding Arms: 2 (Included)
Bending angle precision: 30
Temperature and Humidity Operation: 10°C - 28°C / 5% - 95% without water condensation
Motor capacity: 6KW to 7.5KW Siemens
Lower table: Robust, ideal for quick matrix changes
Bender structure: Steel made with tension relief welded
Pedal: Included high precision
Dimensions: 65" x 55" x 81"
Weight: 7,000 pounds (MAKE-5-NC40T) and 8,500 pounds (MAKE-5-NC63T)
Voltage / Hertz: 220V/60 GHz 3-PHASE
Warranty: 1 year for mechanical and electronic parts

WARRANTY

In FlexMax Laser & CNC Machines we exceed our compromise with our customers. Our most important goal is to full fill your expectations and needs.


We provide outstanding customer service to satisfy our customer request.



FLEXMAX LASER & CNC MACHINES ALSO OFFERS:

  • COMPLETE INVENTORY OF SPARE PARTS FOR ALL THE LASER ENGRAVER & CUTTER MODELS.
  • SPECIALIZED TECHNICAL SUPPORT.
  • FAST RESPONSE TO OUR CUSTOMER REQUIREMENTS
  • CONTINUOUS IMPROVEMENTS IN OUR SERVICE.

FlexMax Laser & CNC Machines offers a comprehensive warranty policy, for more information and complete terms: CLICK HERE
