FlexMax Laser

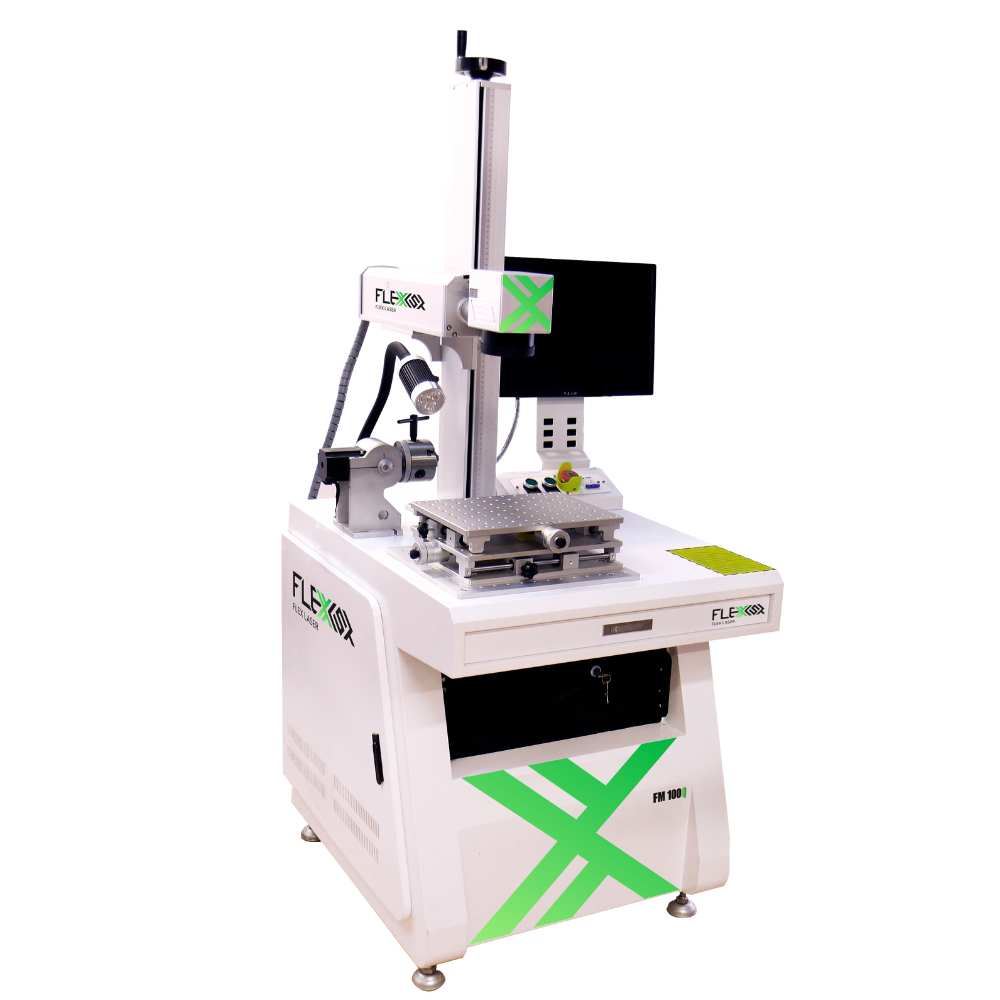

50W, 100W & 120W Industrial Grade workstation fiber marking, engraving and cutting QUARTZ STATION Series FlexMax Laser

50W, 100W & 120W Industrial Grade workstation fiber marking, engraving and cutting QUARTZ STATION Series FlexMax Laser

$11,990.00 USD
$11,990.00 USD
Sale Sold out

SALE METHOD: FROM OUR CA WAREHOUSE TO YOUR FACTORY WITH OPTIONAL LOCAL TRAINING AND SUPPORT

Our QUARTZ STATION Series marking and engraving machine includes the following:

✔ QUARTZ-BASED system to resist pronged performances
✔ Engrave, mark, and even cut by repetitions
✔ 50W, 100W, and 120W MAX Laser Sources.
✔ 32" pole for engraving with a maximum area of 15.7" x 15.7".
✔ OPEX Quartz based germany lens: 4.0 x 4.0", optionally 6.8 x 6.8"
✔ Integrated Windows PC.
✔ EzCAD or LightBURN™ Software Last Version.
✔ Mark ETCH, MIRROR, ANNEAL finishes, and even basic colors (50W).
✔ Multi-Function Rotary Tool to process cylindrical objects, including rings.
✔ Ergonomic workstation design.
✔ Engrave 900% faster than regular CO2 machines.
✔ Includes a red dot point light to check the position of the laser beam.
✔ Mark 0.015mm letters, numbers, symbols, or micro drawings of 0.2mm.
✔ Engrave high-definition portraits, logos, codes, numbers, etc.
✔ Industrial Grade. Operates at a 24/7 Cycle duty cycle.

Click here to request a QUARTZ Series quick quote

Payments As Low As: $ 253/mo CLICK HERE to APPLY NOW
View full details

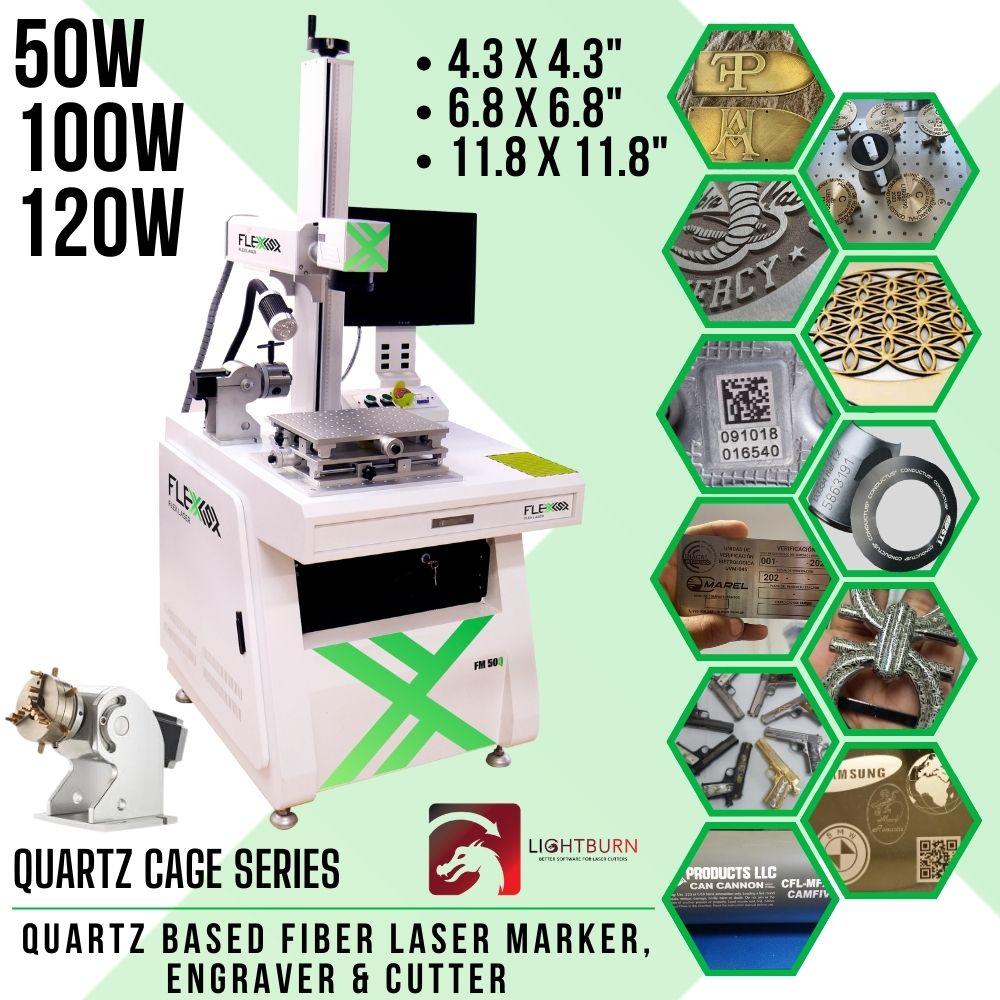

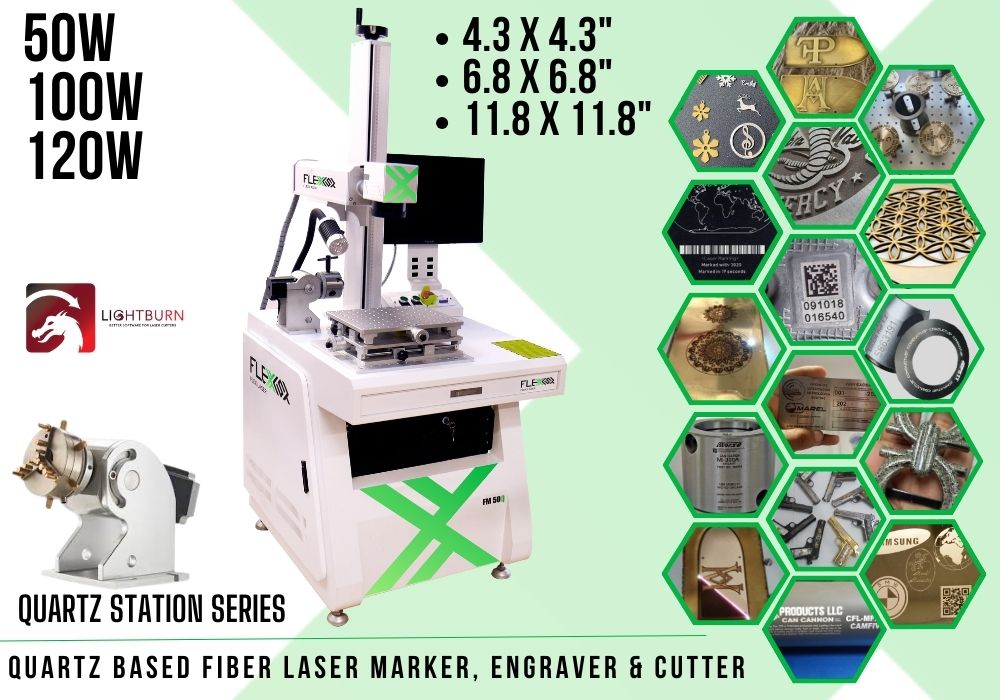

INTRODUCTION

The QUARTZ STATION Series guarantees long-term performance with its main components constructed from durable quartz. Quartz excels in withstanding high temperatures and facilitates repeated engraving, etching, and cutting of metals.

DIFFERENT EFFECTS

The MARK Series excels in achieving various effects on metals, plastics, and other industrial materials. With the ability to adjust parameters, it can mark or engrave in grays, primary mate colors, deeps, and more.

SOFTWARE

It includes two specialized software options (EXCAD or LIGHTBURN); you can import designs from your favorite design program or even create basic designs directly there, such as importing images and generating codes, etc.

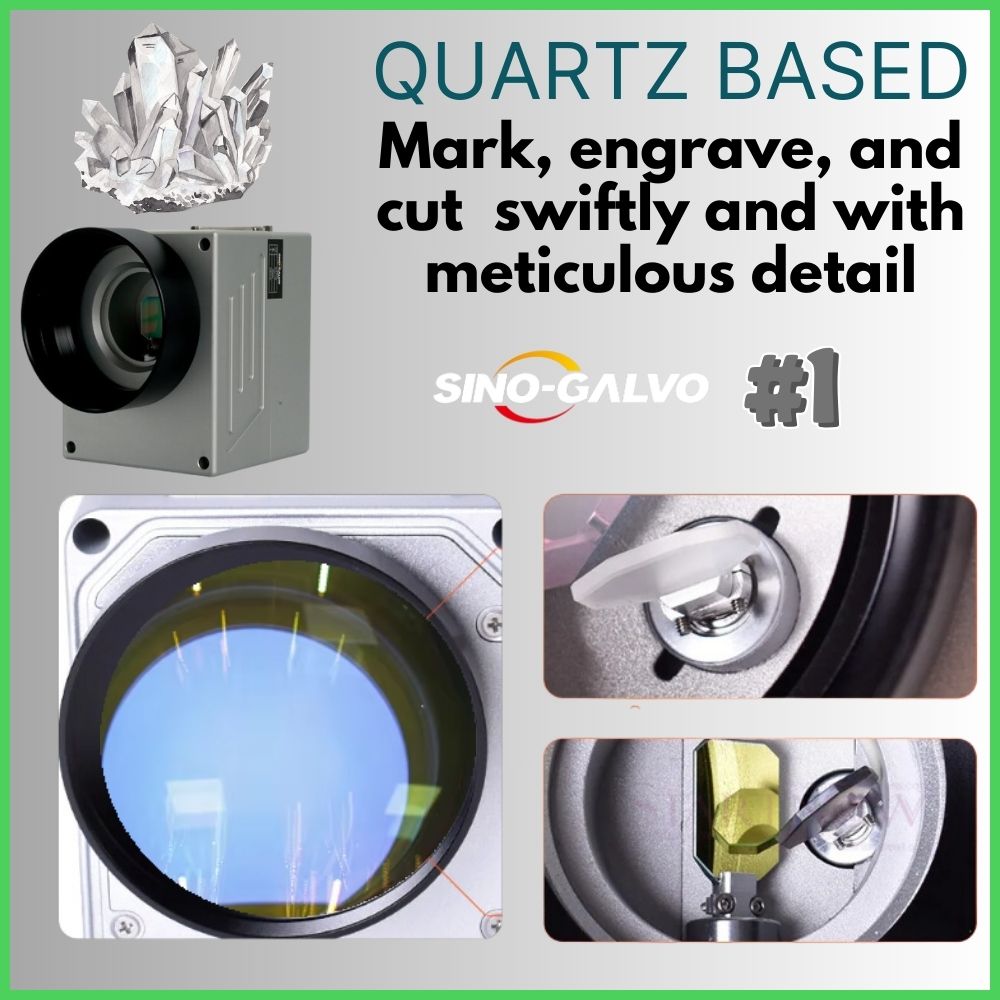

QUARTZ GALVO

Our Galvo is exclusively built with quartz. When tackling lengthy design engravings or cuts, which lead to longer processing times, rest assured: the quartz-built Galvo safeguards your investment and delivers unparalleled results.

LASER SOURCE

Our MARK & QUARTZ Series is powered by MAX Photonics; these stable generators deliver a huge electric frequency range, enabling the marking and engraving of thousands of tonalities.

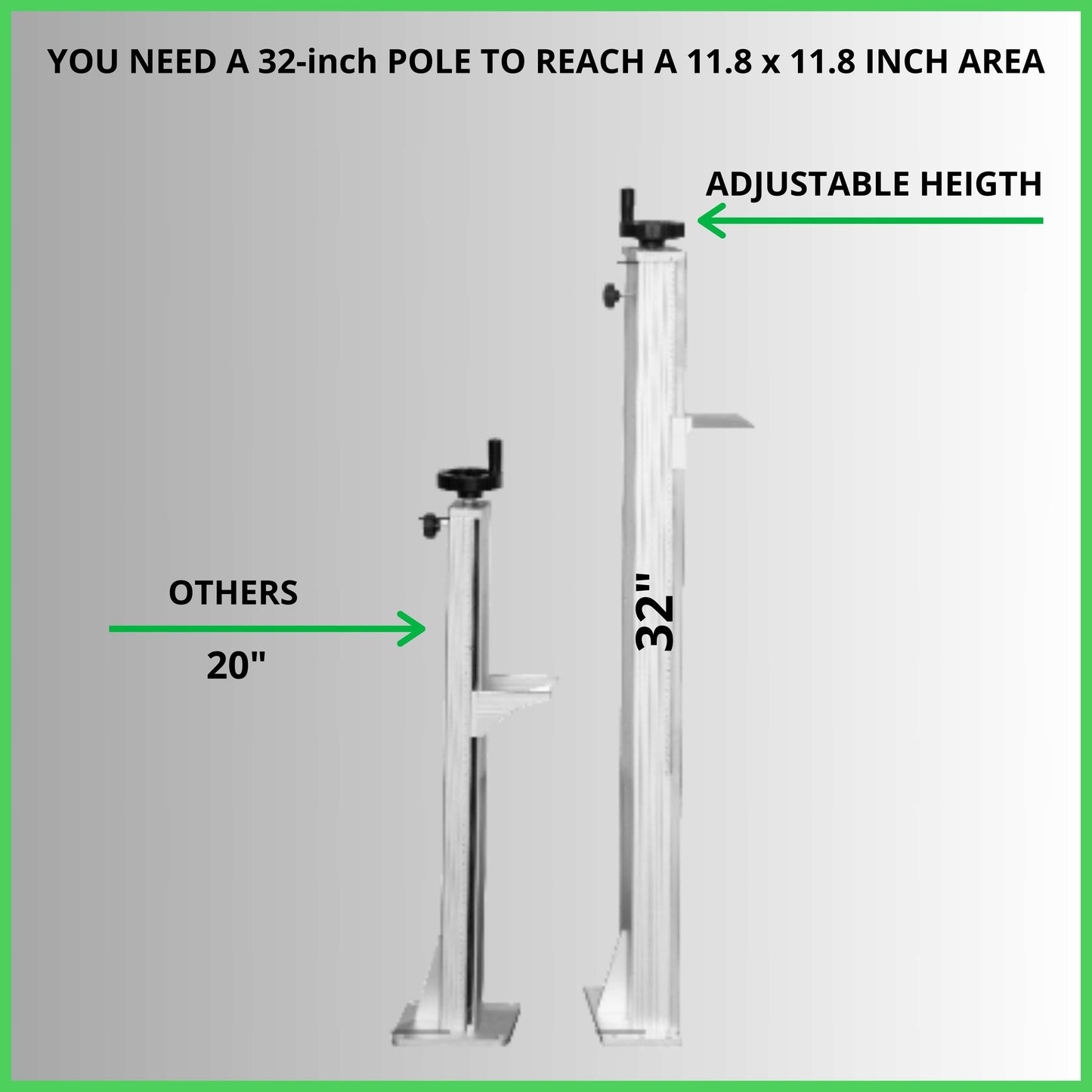

32 INCH POLE

A 32-inch pole is essential for your machine to reach a large field as it functions as a projector. It is imperative to have additional height to engrave or mark 11.8 x 11.8 or 15.7 x 15.7 areas.

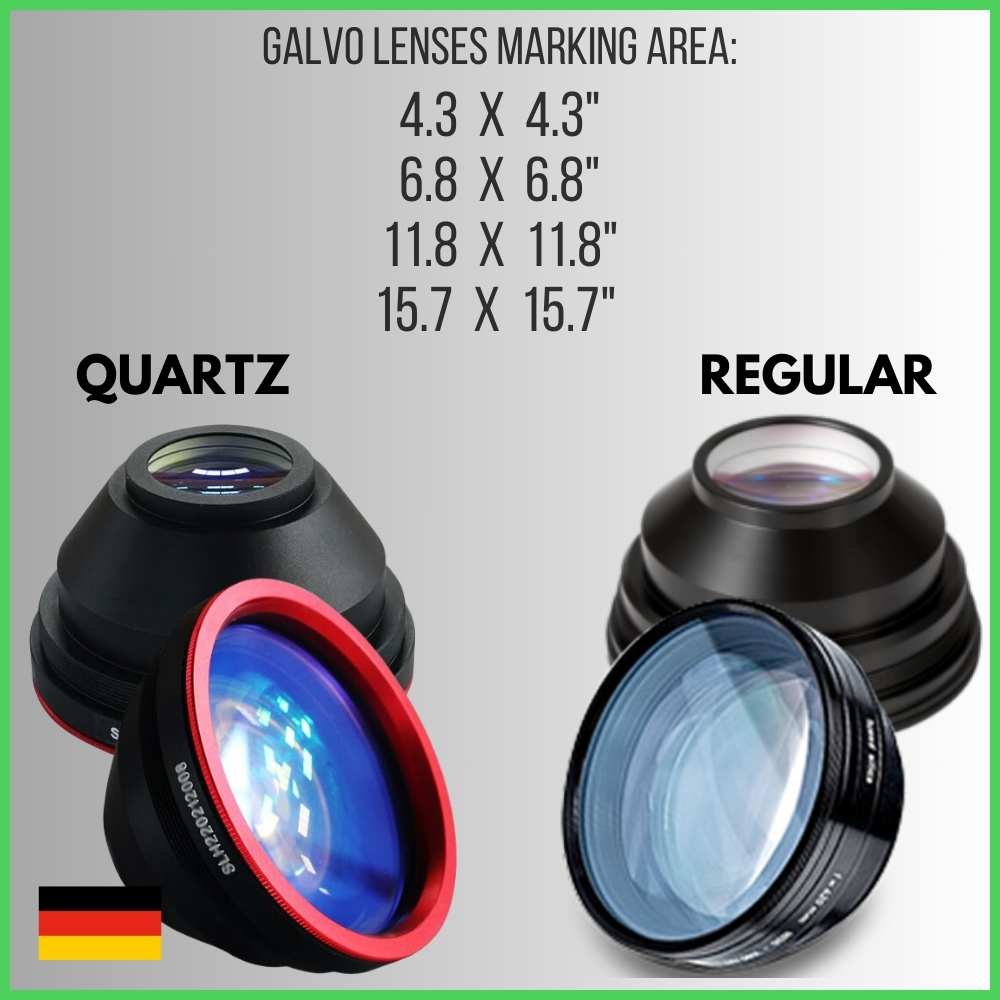

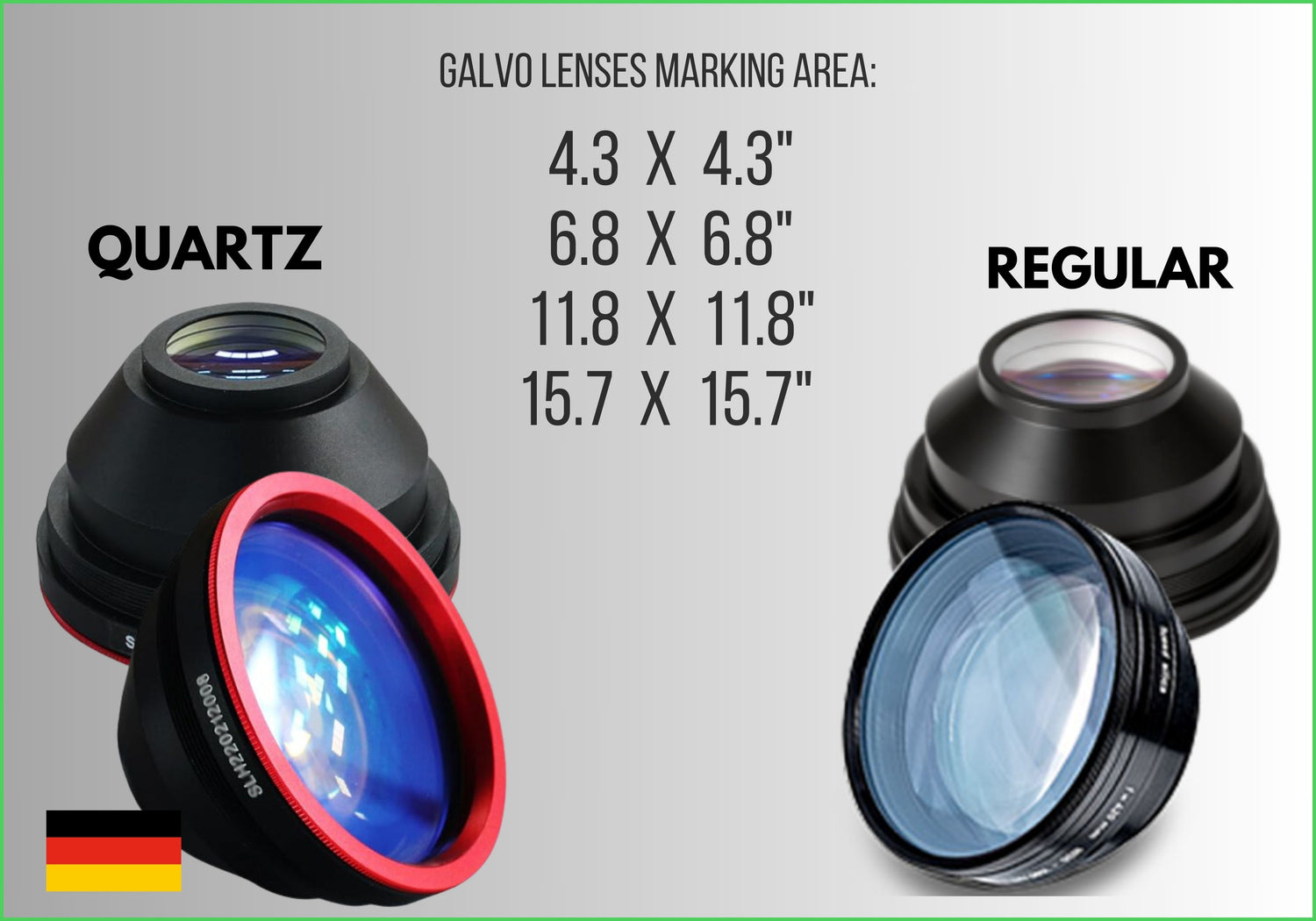

QUARTZ LENS

The FlexMax Laser fiber machines excel at performing markings and engravings, thanks to the precision of the lenses. Our use of quartz lenses and regular lenses with varying working areas ensures top-notch results.

ROTARY TOOLS

Every application demands the perfect tool. That's why we provide a range of rotary devices to meet your needs, whether you require marking inside or outside, on multiple products simultaneously, or elsewhere.

WORKTABLES

Cutting, conveyor, rotary, 2D, etc. FlexMax Laser offers an extensive range of workable options, the perfect solution for every project, whatever the product shape, production target, or other factors.

QUARTZ BASED

What does a quartz-based system mean? The fiber laser marking, engraving, and cutting machines use mirrors and glass components to conduct the laser beam; these components could be damaged early, but by using quartz, you avoid this.

INSTALLATION & TRAINING

Optionally, we offer installation and on-site training as part of our ALL-INCLUSIVE services. Our technician will travel to your location to ensure you receive the best service.

QUARTZ SAMPLES

The QUARTZ Series is suitable for processing various materials in different industries, including heavy-duty metalworking, customization, jewelry, automotive, aeronautics, kitchenware, etc.

50W, 100W & 120W Industrial Grade workstation fiber marking, engraving and cutting QUARTZ STATION Series FlexMax Laser

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS - QUARTZ STATION Series

Laser source power: 50W, 100W, and 120W MAX PHOTONICS Laser Source

Engraving lens: 4.0" x 4.0" OPEX German Quartz based lens (6.8" x 6.8", 11.8" x 11.8", and 15.7" x 15.7" regular lens are available for this model)

Dial Range: 0 a 0.5 mm

Minimum width of a line: Line: 0.15mm Minimum

Utilization (cycle): 24/7 Industrial grade

Minimum Width: Character: 0.15mm Minimum

Software: EZCAD 2.0 Included or Lightburn Galvo

Laser pauses power increase: Laser pauses power increase < 1% controlled by the software.

Possible formats: include graphics of all types, Texts, Barcodes, QR codes, Data Matrix codes, three-dimensional codes, Automatic sequential marking of dates, Batch numbers or serial numbers, and frequencies.

Repeatability Accuracy: + 0.001mm

Engraving Speed:7000mm/s (High Speed)

Frequency Speed range: 25Khz to 99Khz

Laser Wavelength: 1064nm

Divergence: 0.3 mard

Laser beam quality: 1.2 to 1.8 (M2)

Post Height: 32 inches adjustable

Cutting HEAVY-DUTY Worktable: Included

X/Y table: 2D Ajustable (Option)

Cooling system: Air (internal fans)

Rotary Tool (rotary accessory): Multi-Purpose 360 Degrees or suitable for rings (Optional)

Operating Humidity: 5%-85% without water condensation

Operating Temperature: 10C-25C

Dimensions: 28 x 24 x 59 inches with the pole installed

Weight: 286/440 pounds

Voltage/Hertz: 220V + 10% 60 GhZ 4A (can be connected to 110V with Voltage Regulator)

Machine energy consumption: 1050W to 1700W, depending on the laser source.

Warranty: 1 Year (Mechanical and Electronic due to factory defects).

WARRANTY

In FlexMax Laser & CNC Machines we exceed our compromise with our customers. Our most important goal is to full fill your expectations and needs.


We provide outstanding customer service to satisfy our customer request.



FLEXMAX LASER & CNC MACHINES ALSO OFFERS:

  • COMPLETE INVENTORY OF SPARE PARTS FOR ALL THE LASER ENGRAVER & CUTTER MODELS.
  • SPECIALIZED TECHNICAL SUPPORT.
  • FAST RESPONSE TO OUR CUSTOMER REQUIREMENTS
  • CONTINUOUS IMPROVEMENTS IN OUR SERVICE.

FlexMax Laser & CNC Machines offers a comprehensive warranty policy, for more information and complete terms: CLICK HERE
