FlexMax Laser

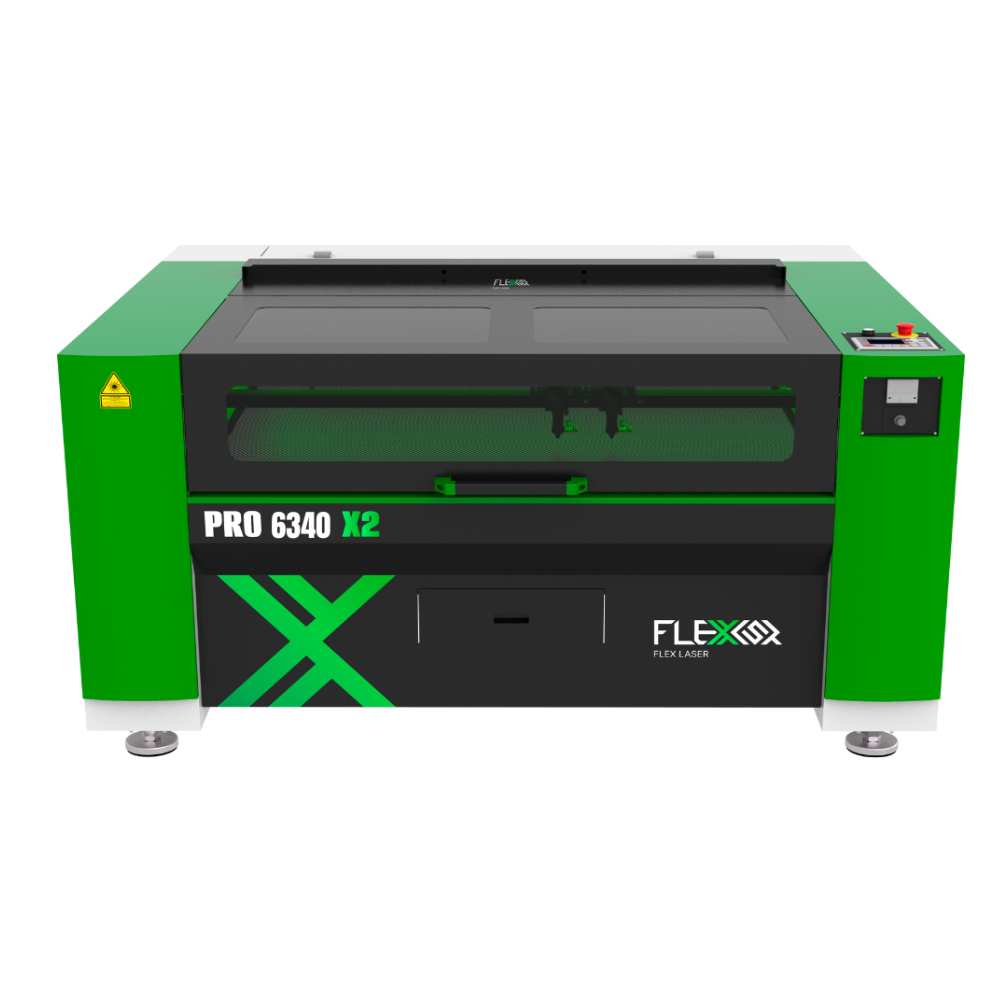

51 x 36, 63 x 40 inches Double 100W to 150W CO2 Tube Cutter & Engraver FlexMax Laser PRO X2 Series

51 x 36, 63 x 40 inches Double 100W to 150W CO2 Tube Cutter & Engraver FlexMax Laser PRO X2 Series

Regular price $8,190.00 USD
Regular price Sale price $8,190.00 USD
Sale Sold out

SALE METHOD: FROM OUR CA WAREHOUSE TO YOUR FACTORY WITH OPTIONAL LOCAL TRAINING AND SUPPORT

Our PRO Series X2 double CO2 tube cutting & engraving machine includes:

✔ Working Area: 51 x 36" or 63 x 40"
✔ 100W, 130W, or 150W RECI Laser Tube (150W available only for 63x40 size)
✔ Includes LightBURN™ Software Last Version (SmartCarve optional)

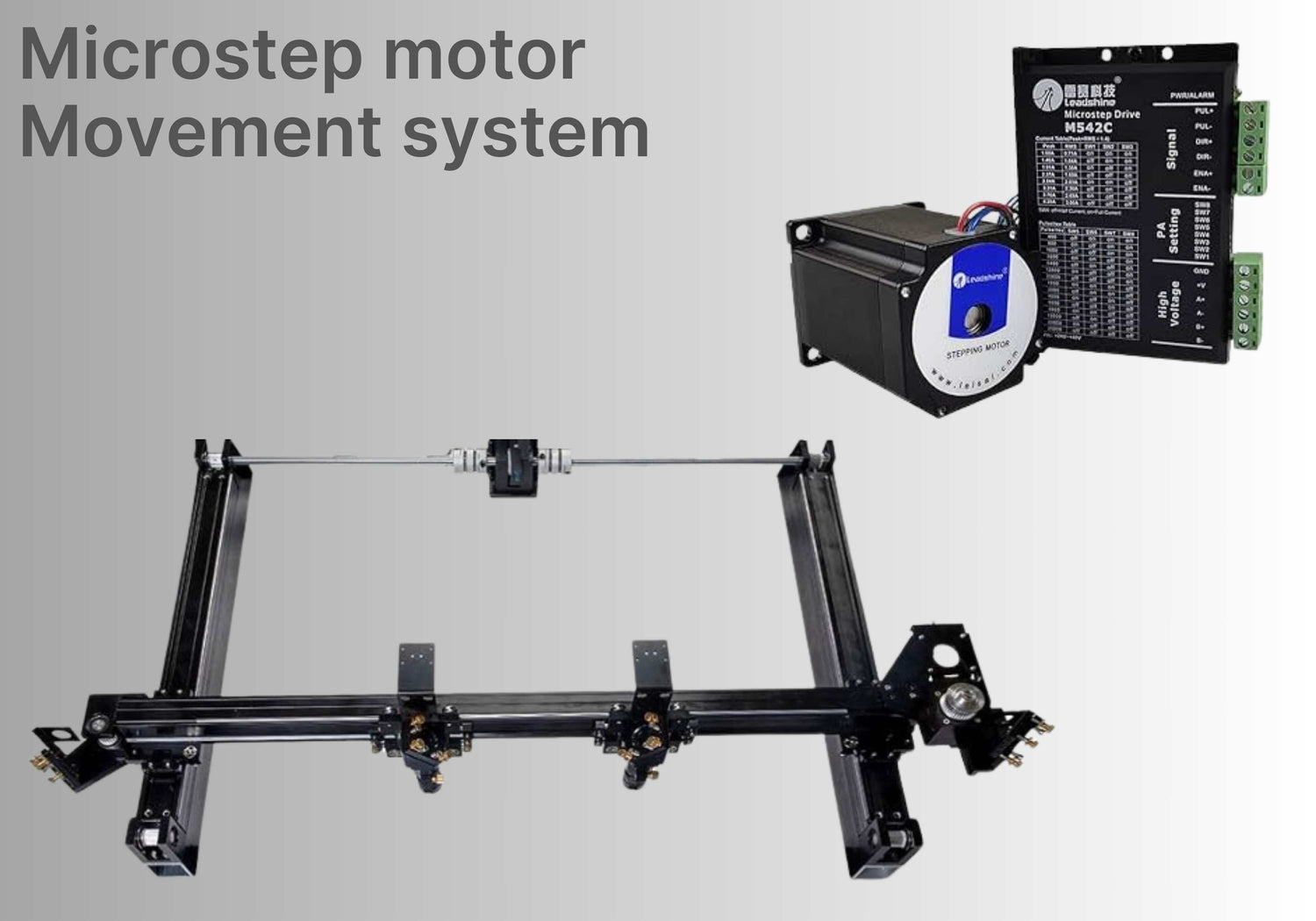

✔ Equipped with a micro-step X/Y high-precision movement system
✔ Features an LCD color screen
✔ Comes with either aluminum slats or a honeycomb heavy-duty worktable
✔ Includes a red dot point light to check the position of the laser beam
✔ Equipped with an S&A CW5202 Industrial Electronic Chiller
✔ 750W Industrial Grade Blower included
✔ Independent air regulation system for adjusting the cut or engrave quality
✔ Various integrated safety features include door sensors, emergency stop, pedal, etc.
✔ Operates at a 24/7 Cycle duty cycle

Click here to request a PRO Series quick quote

View full details

INTRODUCTION

Our PRO X2 Series is designed for high production, offering redundancy to the factory that uses them. Equipped with DOUBLE 100W, 130W, or 150W CO2 laser tubes, they allow you to cut production time in half

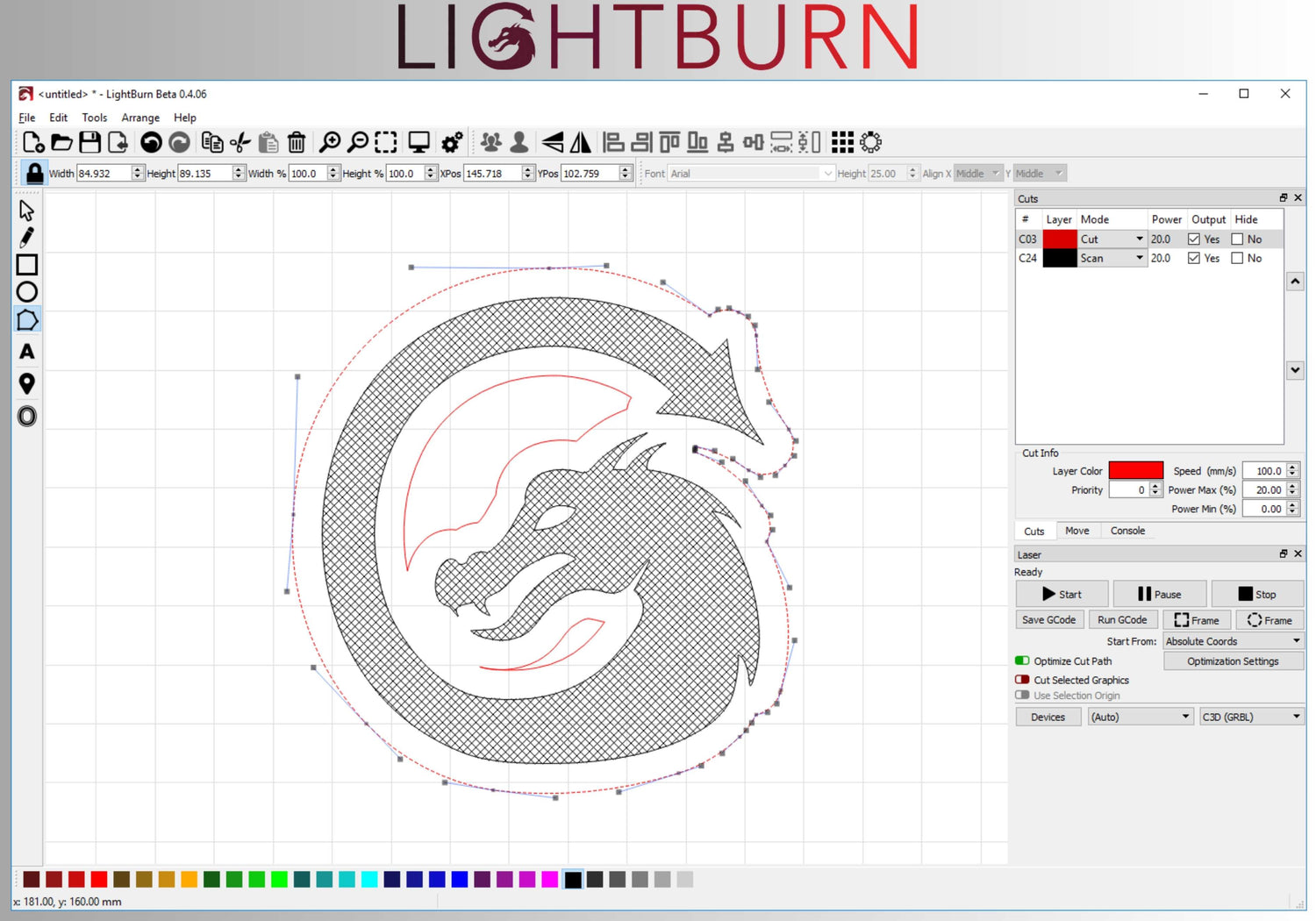

LIGHTBURN

LightBURN™ is the most popular and widely used software in the United States. It is valued for its simple, comprehensive functions and extensive online support and tips.

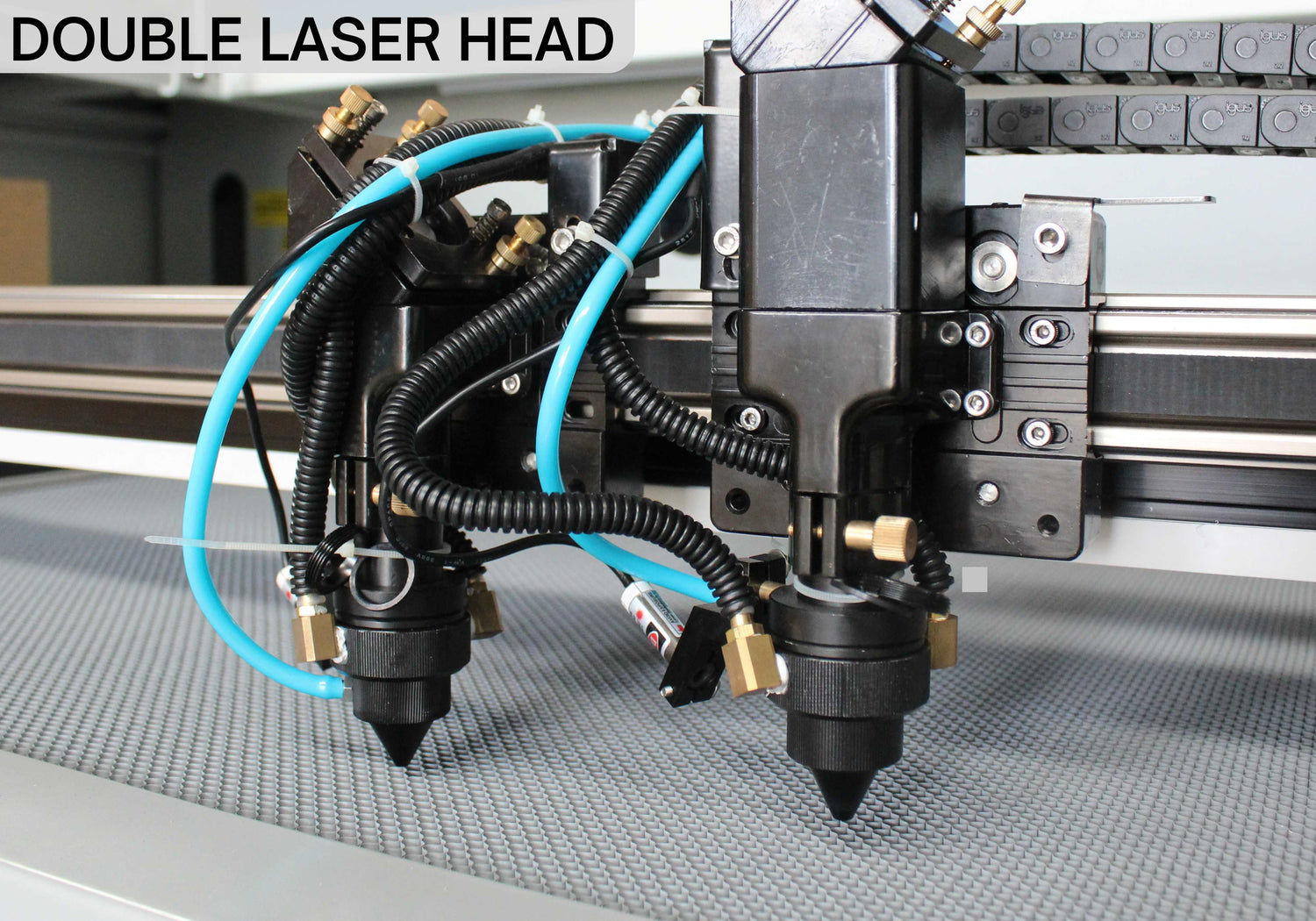

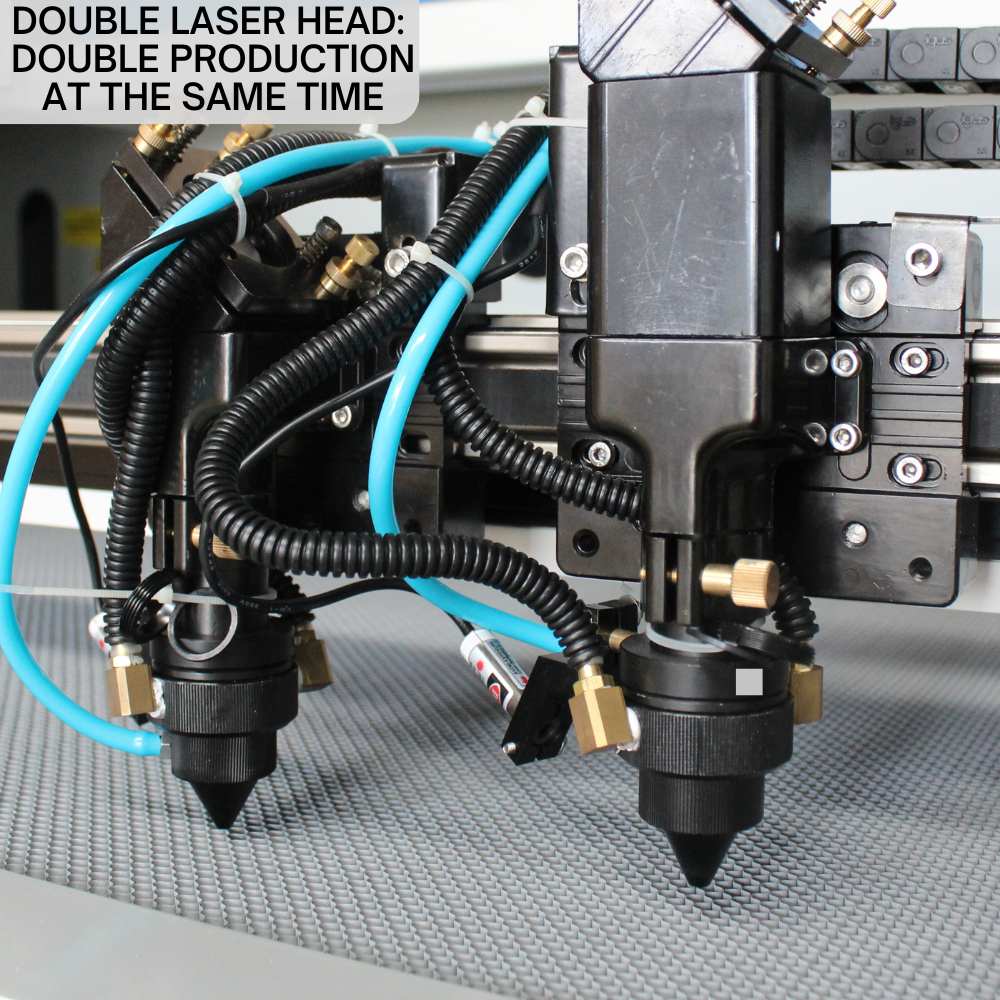

DOUBLE LASER TUBE

Having dual laser tubes in your machine allows you to cut or engrave production in half the time by virtually dividing the machine into two sections.

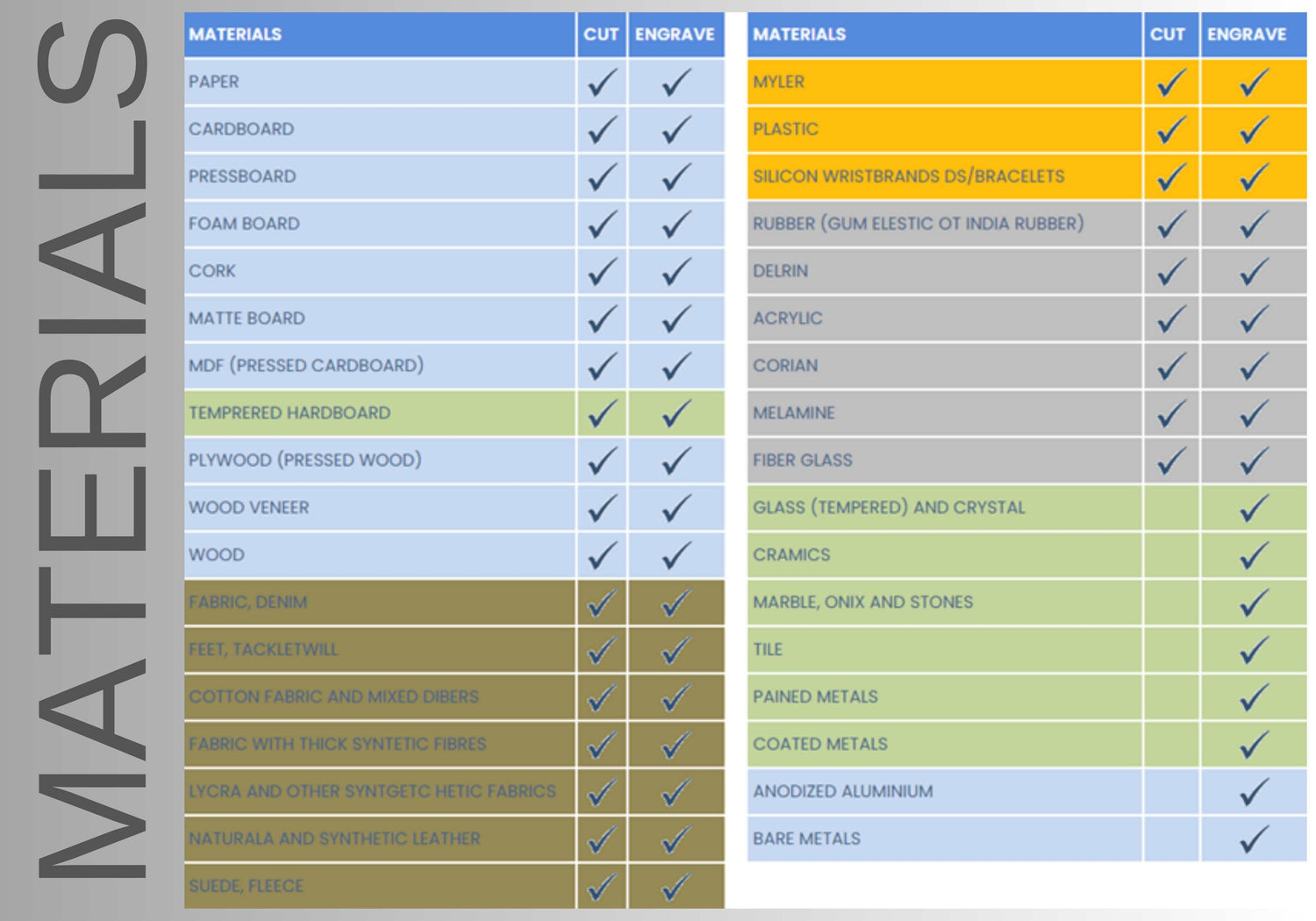

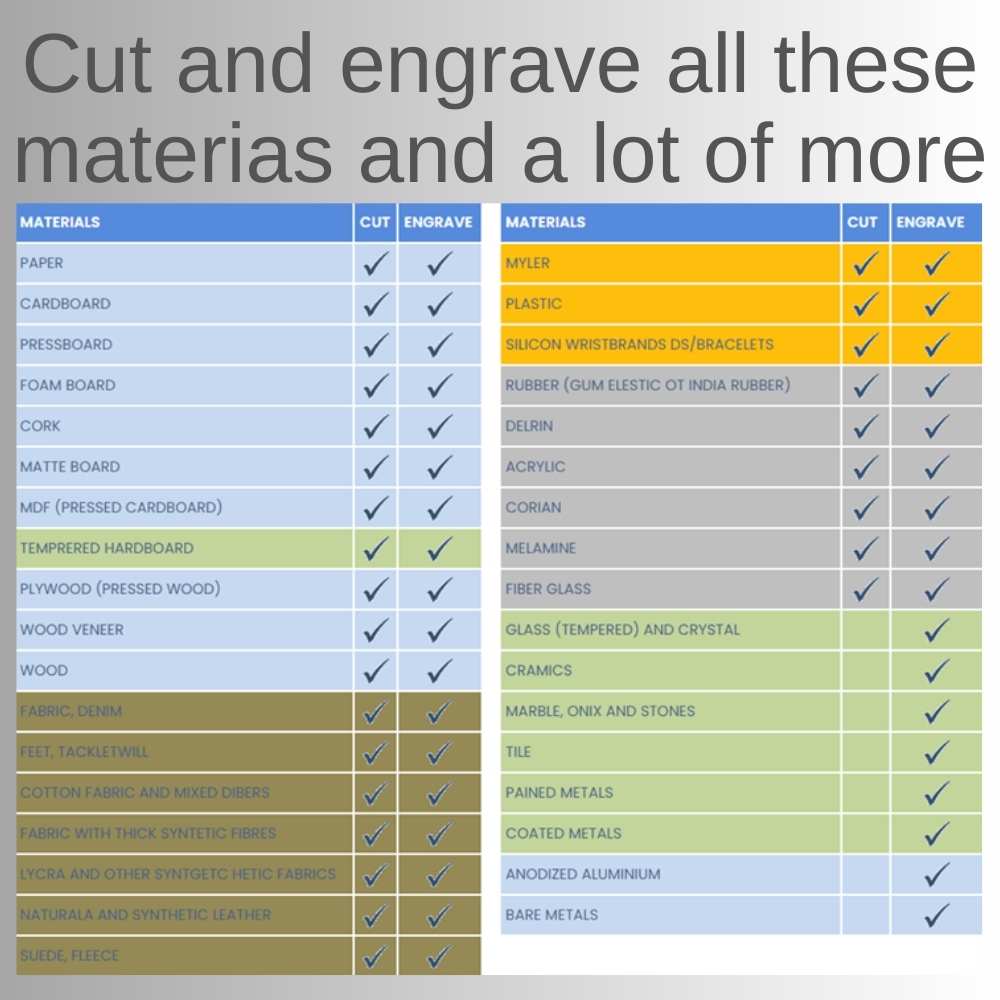

WHAT CAN CUT OR ENGRAVE?

Experience the power of the PRO, which can efficiently process various soft and hard materials. Our system delivers exceptional engraving and cutting performance.

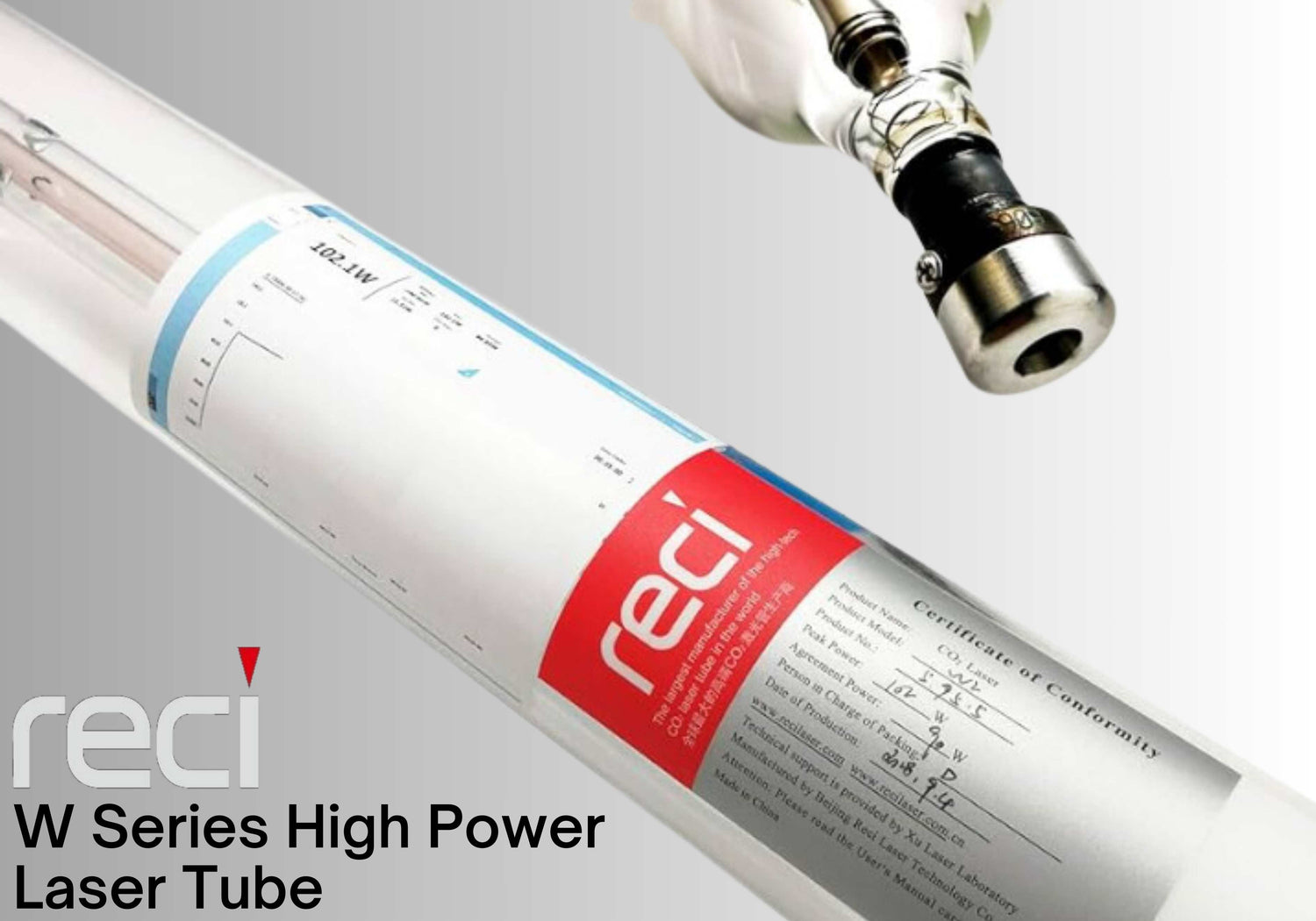

"W" SERIES

RECI has two laser tube lines, T (Regular performance) and W (High performance). The W Series has a span life of 10,000 to 12,000 hours and 30% more power than any other tube in the market.

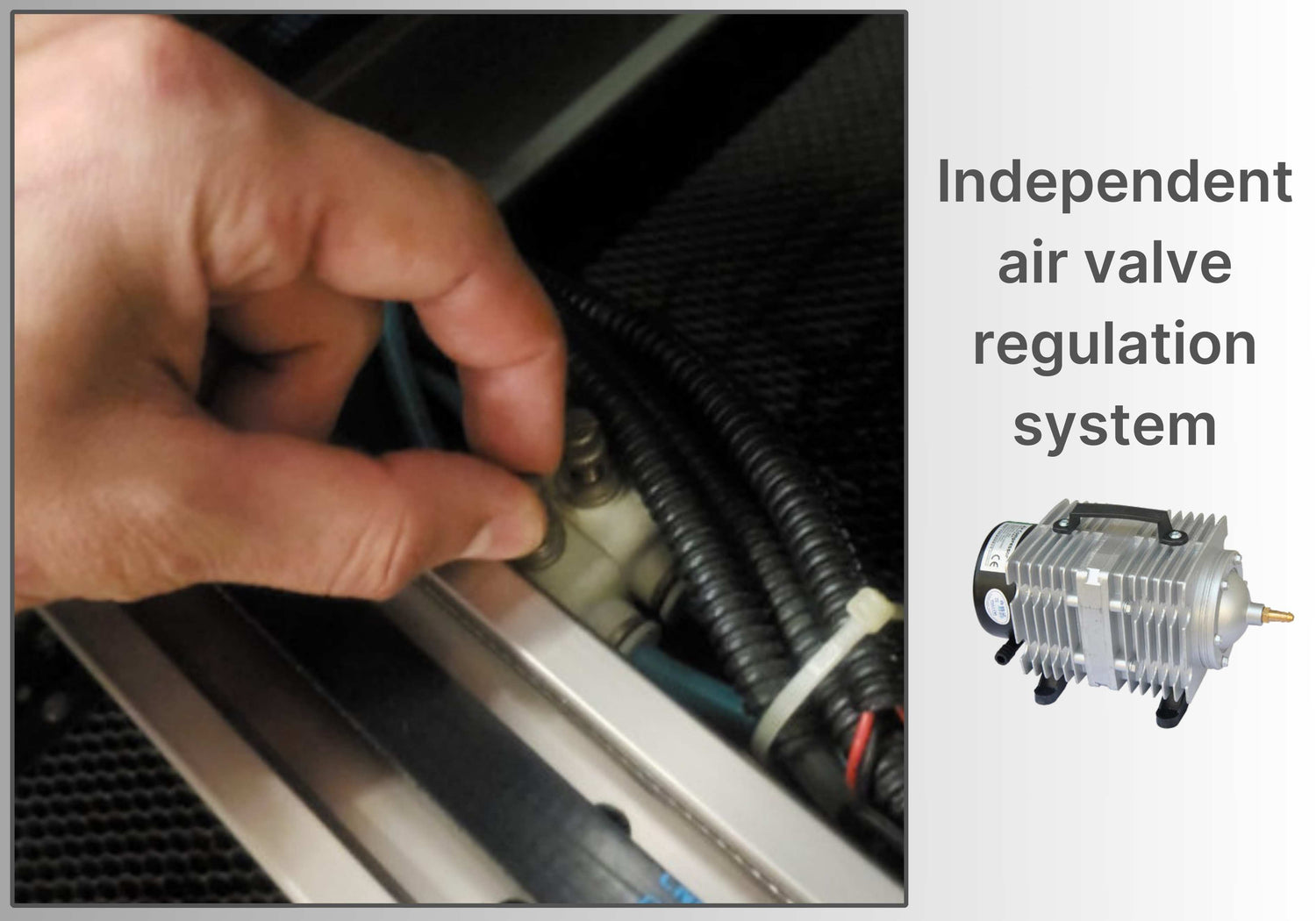

AIR VALVE

Adjusting the lens nozzle is crucial to achieving cleaner and finer work. It must adapt to the specific material and type of work (cutting or engraving) being carried out at that moment.

EFFICIENT TRANSMISSION

Thanks to its high-quality components, its laser head positioning system, engraving, and cutting performance are fast and highly accurate.

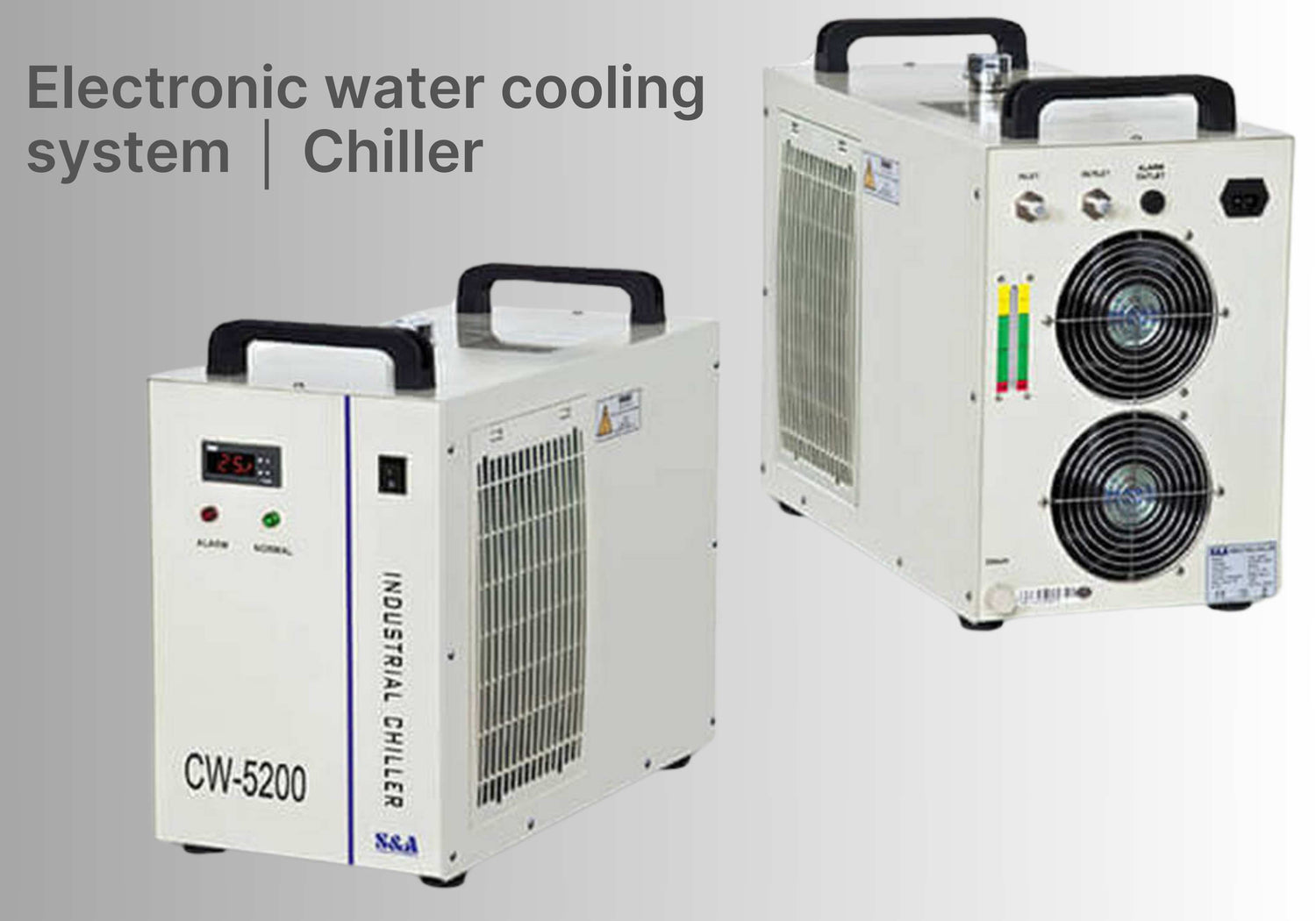

COOLING SYSTEM

The electronic water chiller helps to maintain the laser tube temperature during operation by keeping the water at a consistent room temperature.

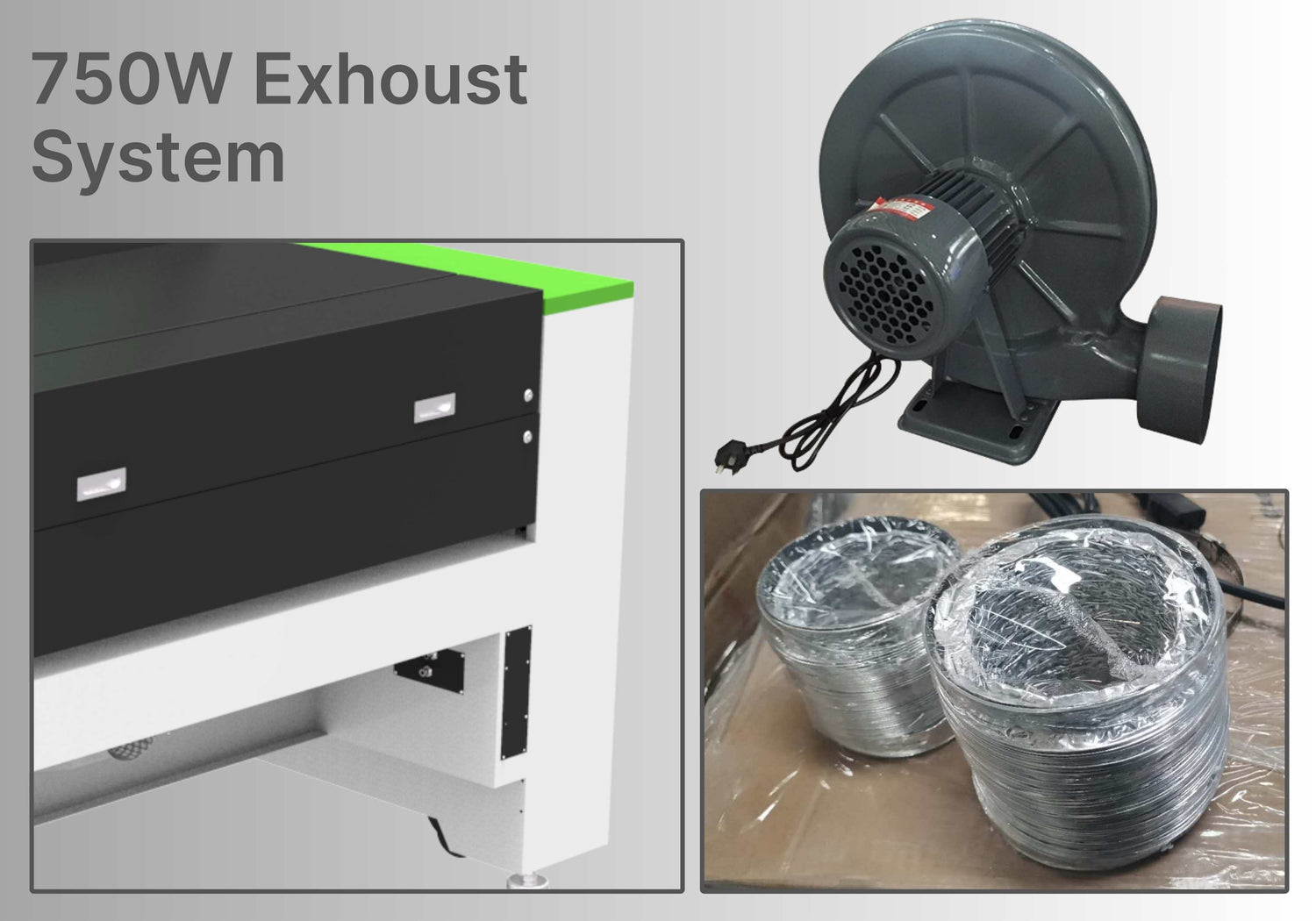

EXHAUST SYSTEM

Our PRO Series has a 750W exhaust system and 8 feet of flexible ventilation duct tubing, which can be installed when the machine is operated in a small enclosed area.

INSTALLATION & TRAINING

Optionally, we offer installation and on-site training as part of our ALL-INCLUSIVE services. Our technician will travel to your location to ensure you receive the best service.

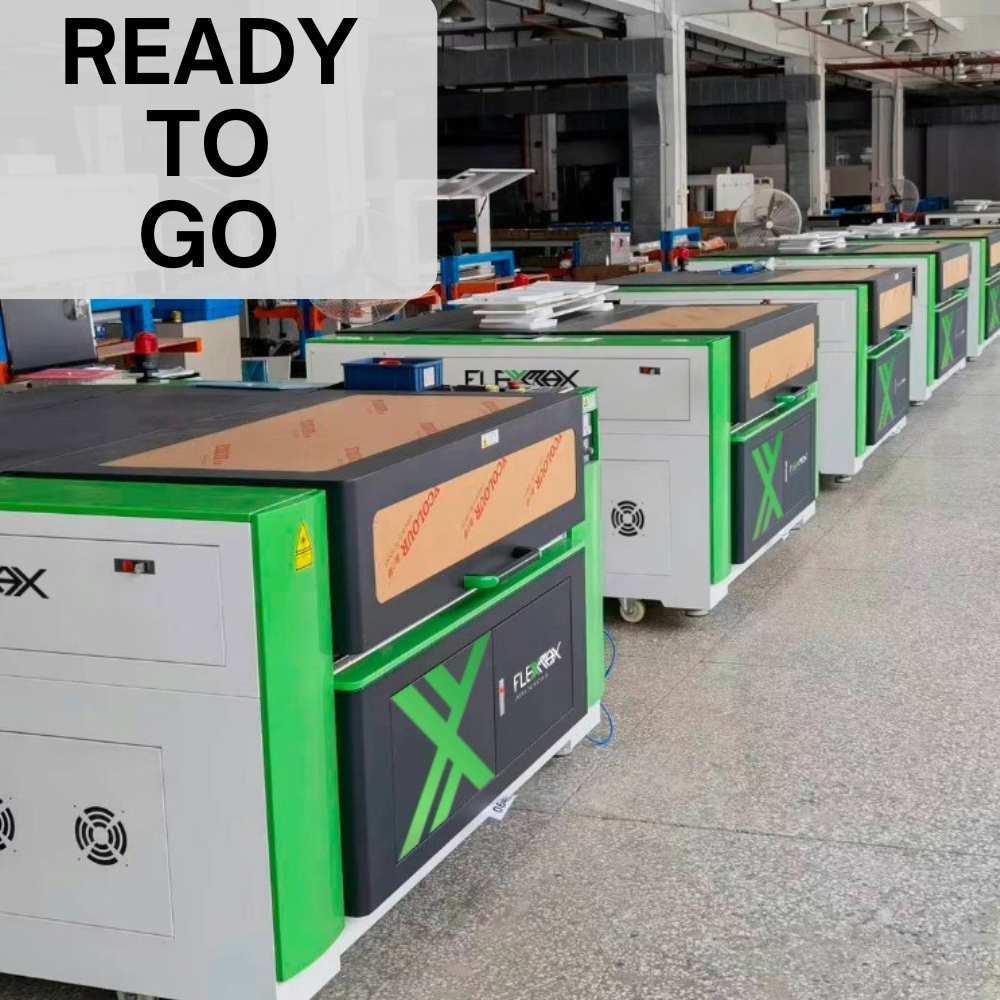

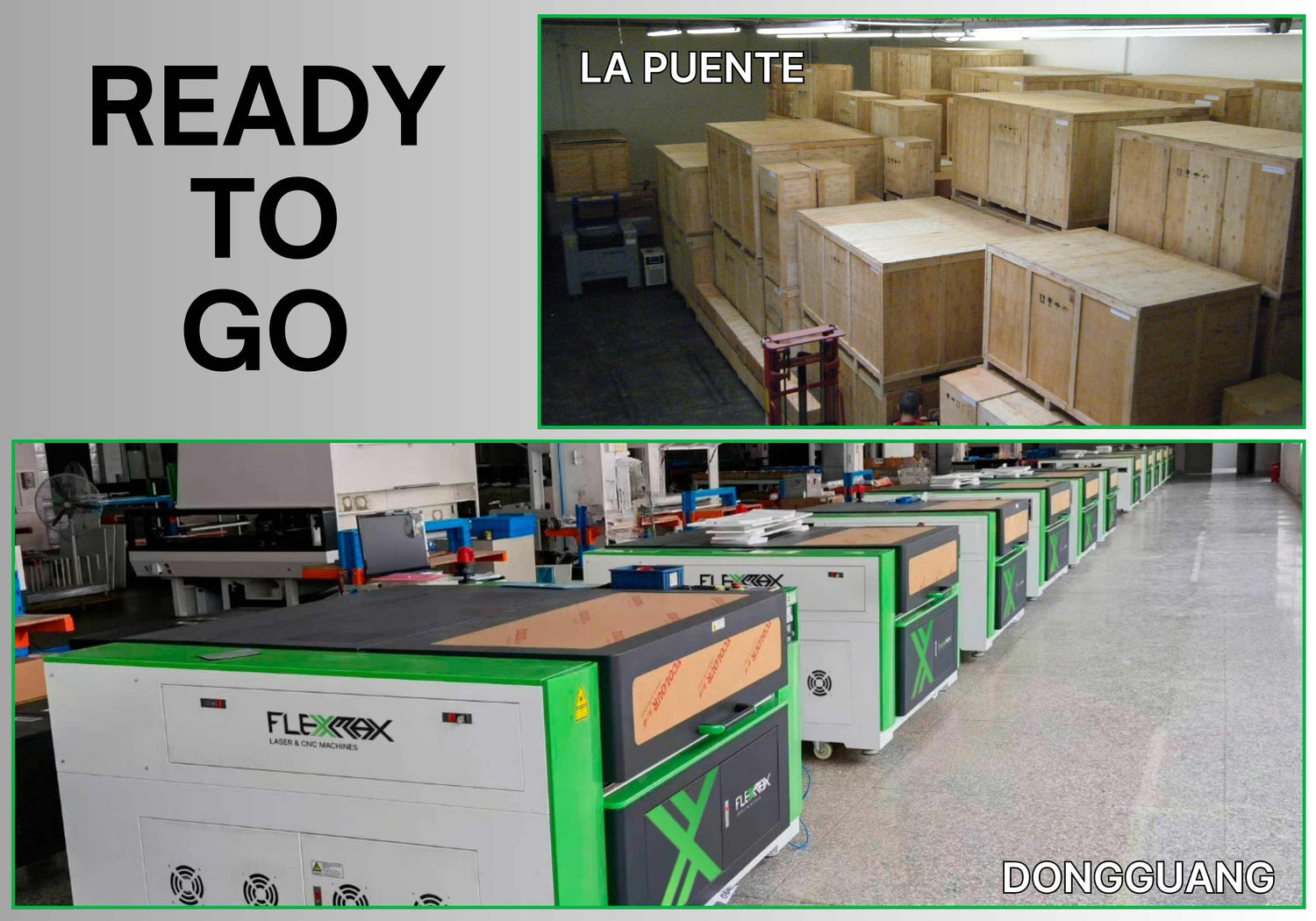

WAREHOUSE TO FACTORY

FlexMax Laser receives containers frequently in the La Puente, CA warehouse. You can pick the machine up there, and we can deliver it to your location.

51 x 36, 63 x 40 inches Double 100W to 150W CO2 Tube Cutter & Engraver FlexMax Laser PRO X2 Series

Collapsible content

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS - PRO X2 Series

Laser Type: 2 x CO2 High-temperature resistant glass tube.

Laser Power: PRO5136-X2: Double Tube PRO100, PRO130, or RECI W6 130. PRO6340-X2: Double Tube PRO100, PRO130, RECI W6 130, or RECI W6 150.

Working Area: PRO5136-X2: 51-inch x 36 inch (1.3 mts x 0.9 mts). PRO6340-X2: 63-inch x 40 inch (1.6 mts x 1.0 mts).

Worktable Type: Removable Honeycomb or Aluminum Knife Slats.

Machine & Crate Weight: PRO5136-X2: 730 Pounds (331kg). PRO6340-X2: 925 Pounds (420kg)

Material Pass-through: Yes (Back side)

Machine & Crate Dimensions: PRO5136-X2: 75” Length x 61” Width x 44” Height. PRO6340-X2: 87” Length x 66” Width x 46” Height.

Driving System: 2-phase high-precision step motor driver.

Resolution Ratio: 4000 DPI

Control Software: LightBURN™ Last Version, SmartCarve Last Version (You Choose), vectors, and graphics processing.

Graphics Format Supported: BMP, JPG, GIF, JPEG, and JPE.

Vector format supported: ai, cut, dsb, dst, dxf, nc, oux, out, plt, smc, yln, ymd, saw, at.

Connection Port: USB (Wireless Options Available).

Working Voltage: 220V 60 GHz. (110V Available using our voltage regulator option)

Power Consumption: PRO5136-X2: 1580W, PRO6340-X2: 1690W

Operation Temperature: 5°C - 25°C (41 °F- 77 °F).

Operating humidity: 5 - 95% Non-condensing.

Manuals: Installation, Operation, and Maintenance (Digital).

Warranty: 1-Year

WARRANTY

In FlexMax Laser & CNC Machines we exceed our compromise with our customers. Our most important goal is to full fill your expectations and needs.


We provide outstanding customer service to satisfy our customer request.



FLEXMAX LASER & CNC MACHINES ALSO OFFERS:

  • COMPLETE INVENTORY OF SPARE PARTS FOR ALL THE LASER ENGRAVER & CUTTER MODELS.
  • SPECIALIZED TECHNICAL SUPPORT.
  • FAST RESPONSE TO OUR CUSTOMER REQUIREMENTS
  • CONTINUOUS IMPROVEMENTS IN OUR SERVICE.

FlexMax Laser & CNC Machines offers a comprehensive warranty policy, for more information and complete terms: CLICK HERE
