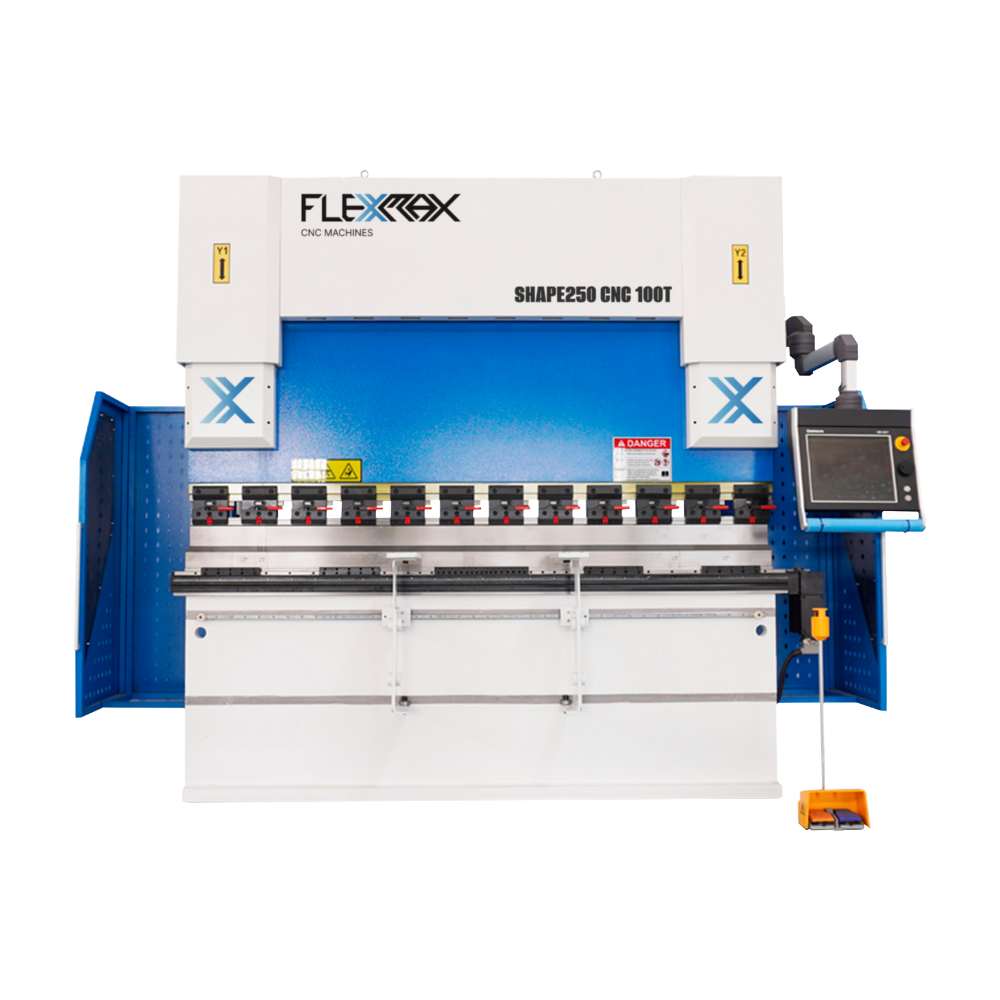

80tns to 100tns, 8.2ft long FlexMax CNC 6+1 AXIS SHAPE-8 Series Hydraulic Press Brake Metal Bender

80tns to 100tns, 8.2ft long FlexMax CNC 6+1 AXIS SHAPE-8 Series Hydraulic Press Brake Metal Bender

$67,000.00 USD
$67,000.00 USD
Sale Sold out

SALE METHOD: FROM THE FACTORY TO YOUR FACTORY WITH LOCAL TRAINING AND SUPPORT

Our SHAPE-8 Series 8.2 feet-long press 6+1 AXIS brake metal bender includes:

✔ FREE Shipping* (Tow truck crane is required to unload)
✔ 4-DAY Full Pack On-site Installation and training
✔ 80 and 100 tons force pressure
✔ 8.2 feet long bending area (Available 5.2 ft and 10ft)
✔ 80 tons bending capacity: Mild steel from C10 (8ft piece long) to 1/2" (4tf piece long). Stainless steel bends at 30% less capacity on average, depending on the alloy
✔ 100 tons bending capacity: Mild steel from C8 (8ft piece long) to 3/8" (4ft piece long). (Stainless steel bends at 30% less capacity on average, depending on the alloy)
✔ DELEM DA53T CNC (Opcional CYB Touch + MBEND Software fully graphic with the capacity to design directly in the panel)
✔ 6+1 Axis (Y1, Y2, X, R, Z1, Z2 + V crown) high precision movement
✔ SIEMENS Powerful Motor
✔ Heavy-duty frame designed to reduce vibrations
✔ Rexroth by Bosch hydraulic valve to control the oil fluid perfectly
✔ First or Haldex hydraulic pump
✔ Multipurpose gooseneck punch and Multi-Vee Die included
✔ The foot pedal grants complete overbending functions
✔ Schneider electric components
✔ Bend stainless steel, mild steel, aluminum, and brass

Click here to request a SHAPE Series quick quote

Payments As Low As: $ 1,413/mo CLICK HERE to APPLY NOW
View full details

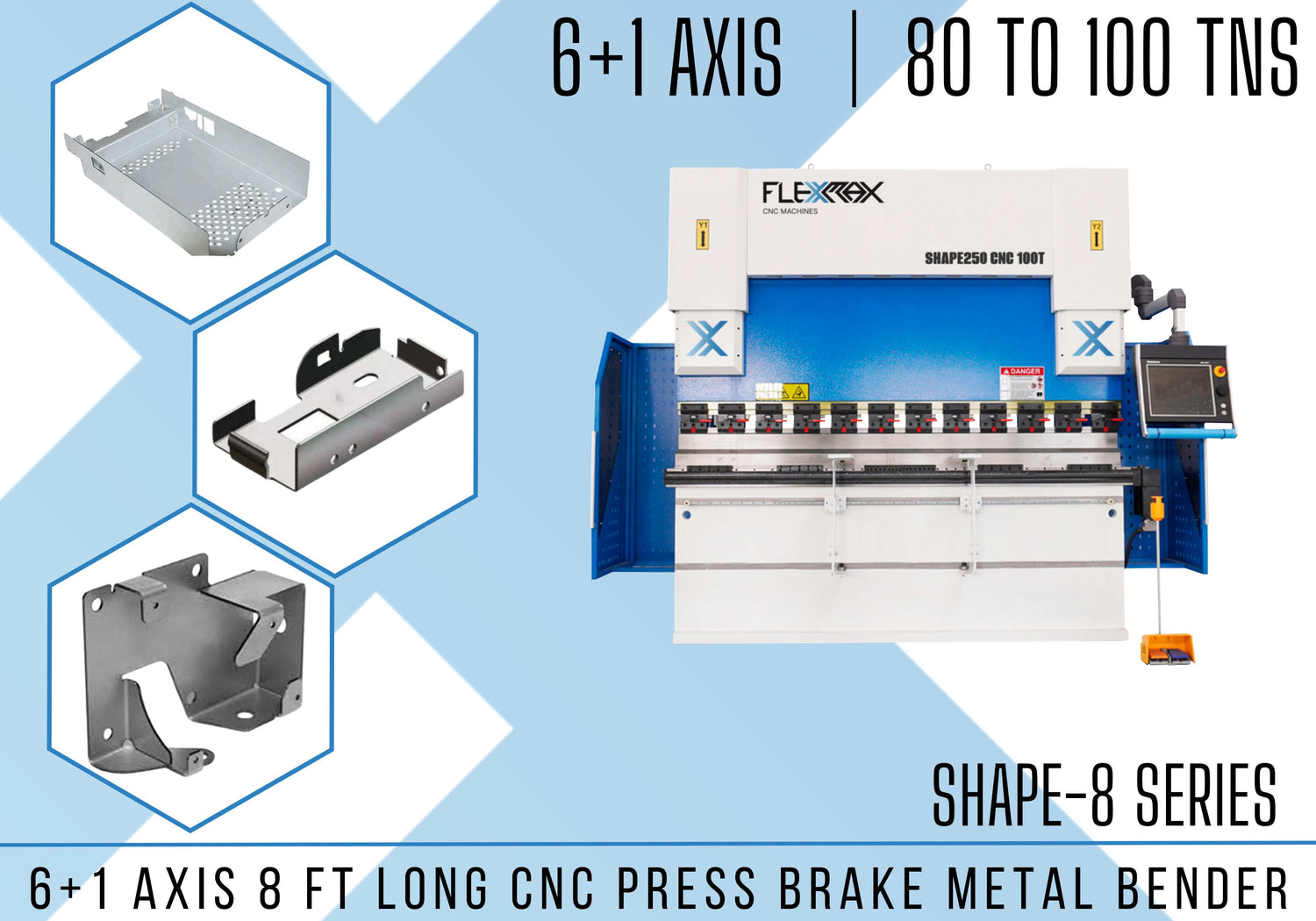

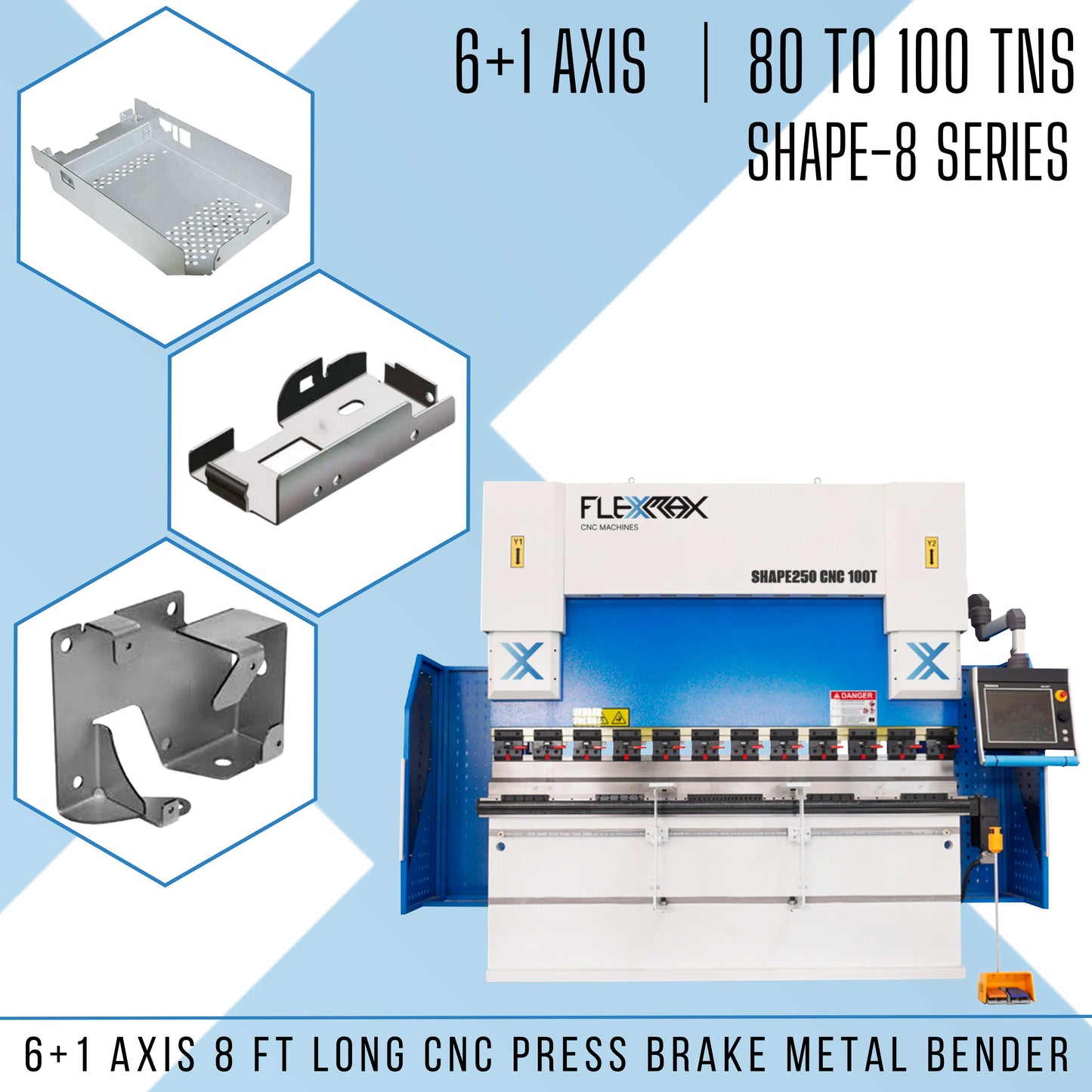

INTRODUCTION

The SHAPE-8 Series FlexMax Press Brake with its compact and simplified hydraulic-electronic system. With 7 (6+1) CNC standard axis, this design minimizes maintenance by reducing internal pipe connections, ensuring increased operational reliability.

TOP COMPONENTS

Our MAKE Series features top-of-the-line components from the world's leading brands to ensure exceptional quality tailored to each model.

DELEM or CYB Touch

Experience the power of the SHAPE-5 Series, featuring the renowned Delem DA53T control panel. Upgrade to the optional CYB Touch control with MIND fully graphic Software for enhanced performance.

BENDING OPTIONS

Experience support for standard tools available on the market, ideal for all your bending needs.

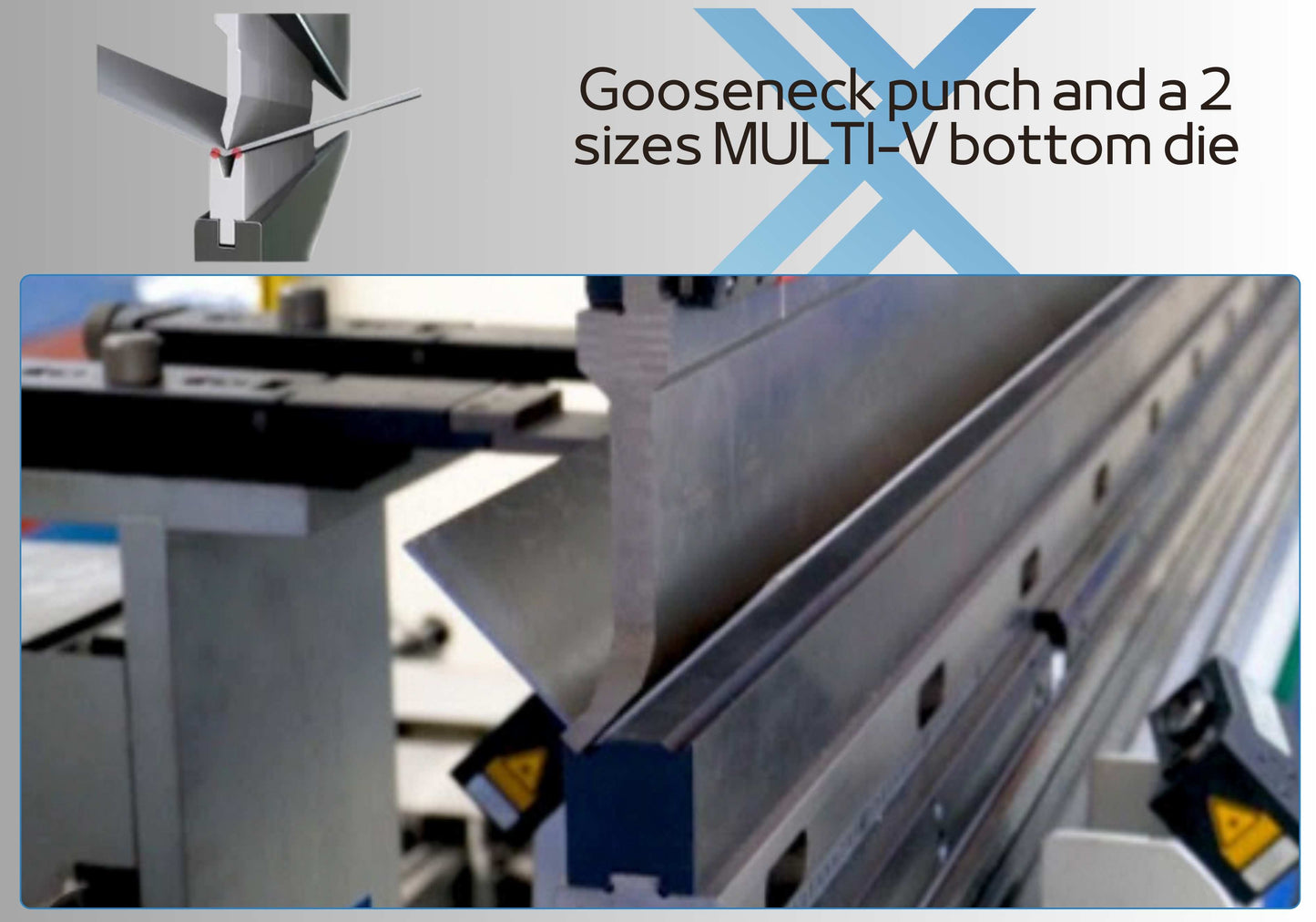

MULTI-PURPOSE GOOSENECK + MULTI-V

The package includes the multipurpose gooseneck punch and the versatile MULTI-V die tool, which supports two sizes.

FOOT SWITCH

Experience the flexibility and durability of our foot switch, designed with its emergency button to ensure safe and secure operation. Achieve precision with ease.

6 + 1 AXIS

The SHAPE Series has Y1 left, Y2 right, X back and front, R up and down, V crowing, Z1 left and Z2 right movements.

MOTORIZED CROWNING

During the bending process, stress can cause the ram and worktable to deform. However, CNC crowning can compensate for the ram deformation, significantly improving the press brake's precision. Ideal for stainless steel items.

SAFETY FEATURES

Ensure worker safety with our advanced MSD device and light curtain, providing laser protection against rapid slider movement. Protect against potential dangers and keep workers safe from harm.

FACTORY TO FACTORY

We ship the machine directly from the factory to your location anywhere in the USA. Once it arrives, an engineer will install it and train you to use it with your materials and projects. ALL-INCLUSIVE!

80tns to 100tns, 8.2ft long FlexMax CNC 6+1 AXIS SHAPE-8 Series Hydraulic Press Brake Metal Bender

TECHNICAL SPECIFICATIONS

Models: SHAPE-8-CNC80T and SHAPE-8-CNC100T.
Controller: DELEM DA53T CNC or CYB Touch + MBEND.
Bending force: 80 tons (SHAPE-8-CNC80T) and 100 tons (SHAPE-8-CNC100T)
Bending area: 8.2 ft (98” / 2500mm)

Axis: 6+1 Axis (Y1, Y2, X, R, Z1, Z2 + V crown
Punches: European type (facilitates quick change)
Cylinders: Hydraulic machined from solid with quality sealing
Distance between columns: 2100 mm
Throat depth: 300mm (80T)/ 350mm (100T)
RAM stroke: 200mm
Maximum opening height: 400 mm
RAM speed reduction: 180 mm/sec
RAM Back/Work speed: 120mm/sec / 8~15mm/sec
Linearity of bent parts: 0.5 mm
Front Sliding Arms: 2 (Included)
Bending angle precision: 30
Temperature and Humidity Operation: 10°C - 28°C / 5% - 95% without water condensation
Motor capacity: 7.5KW to 9.5KW Siemens
Lower table: Robust, ideal for quick matrix changes
Bender structure: Steel made with tension relief welded
Pedal: Included high precision
Dimensions: 110" x 63" x 94"
Weight: 11,000 pounds (SHAPE-8-CNC80T) and 13,000 pounds (SHAPE-8-CNC100T)
Voltage / Hertz: 220V/60 GHz 3-PHASE
Warranty: 1 year for mechanical and electronic parts

WARRANTY

In FlexMax Laser & CNC Machines we exceed our compromise with our customers. Our most important goal is to full fill your expectations and needs.


We provide outstanding customer service to satisfy our customer request.



FLEXMAX LASER & CNC MACHINES ALSO OFFERS:

  • COMPLETE INVENTORY OF SPARE PARTS FOR ALL THE LASER ENGRAVER & CUTTER MODELS.
  • SPECIALIZED TECHNICAL SUPPORT.
  • FAST RESPONSE TO OUR CUSTOMER REQUIREMENTS
  • CONTINUOUS IMPROVEMENTS IN OUR SERVICE.

FlexMax Laser & CNC Machines offers a comprehensive warranty policy, for more information and complete terms: CLICK HERE
