Flex Laser

4ft, 7ft and 8ft fully automatic press brake metal panel bender PANEL Series FlexMax CNC

4ft, 7ft and 8ft fully automatic press brake metal panel bender PANEL Series FlexMax CNC

Regular price $177,000.00 USD
Regular price Sale price $177,000.00 USD
Sale Sold out

SALE METHOD: FROM THE FACTORY TO YOUR FACTORY WITH LOCAL TRAINING AND SUPPORT

Our Metal panel bender PANEL Series fully automatic Press Brake includes:

✔ FREE Shipping* (Forklift is required to unload)
✔ 5-DAY Full Pack On-site Installation and training
✔ Capable of forming parts in a single process
✔ 3 work area presentations: 4 ft, 7 ft, and 8 ft
✔ Bend panels made of C14 aluminum, C16 mild steel, and C18 stainless steel
✔ Taiwan SYNTECH Control System HC15E Touch Screen Controller
✔ Includes software to make 2D designs, and upload 3D files
✔ 8 Axis (A, B, V, C3, C11, W11, Z11, Y11) high precision movement
✔ 100% controlled by servo motors for maximum precision
✔ Fast movements thanks to its ball and screw transmission
✔ Bending speed up to 0.2s/time
✔ Schneider electric components
✔ It can manufacture stainless steel, carbon steel, and aluminum panels

Click here to request a PANEL Series quick quote

View full details

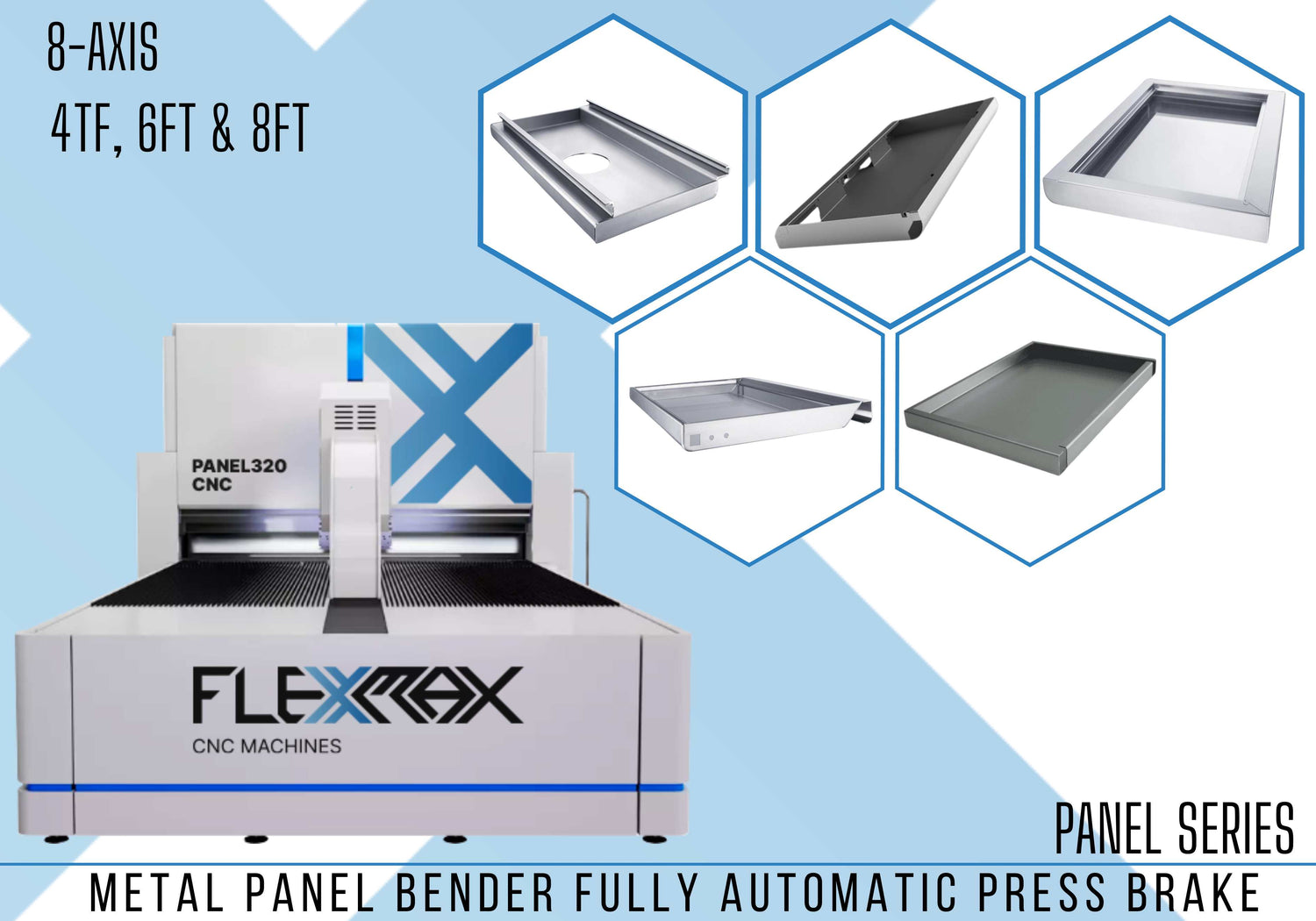

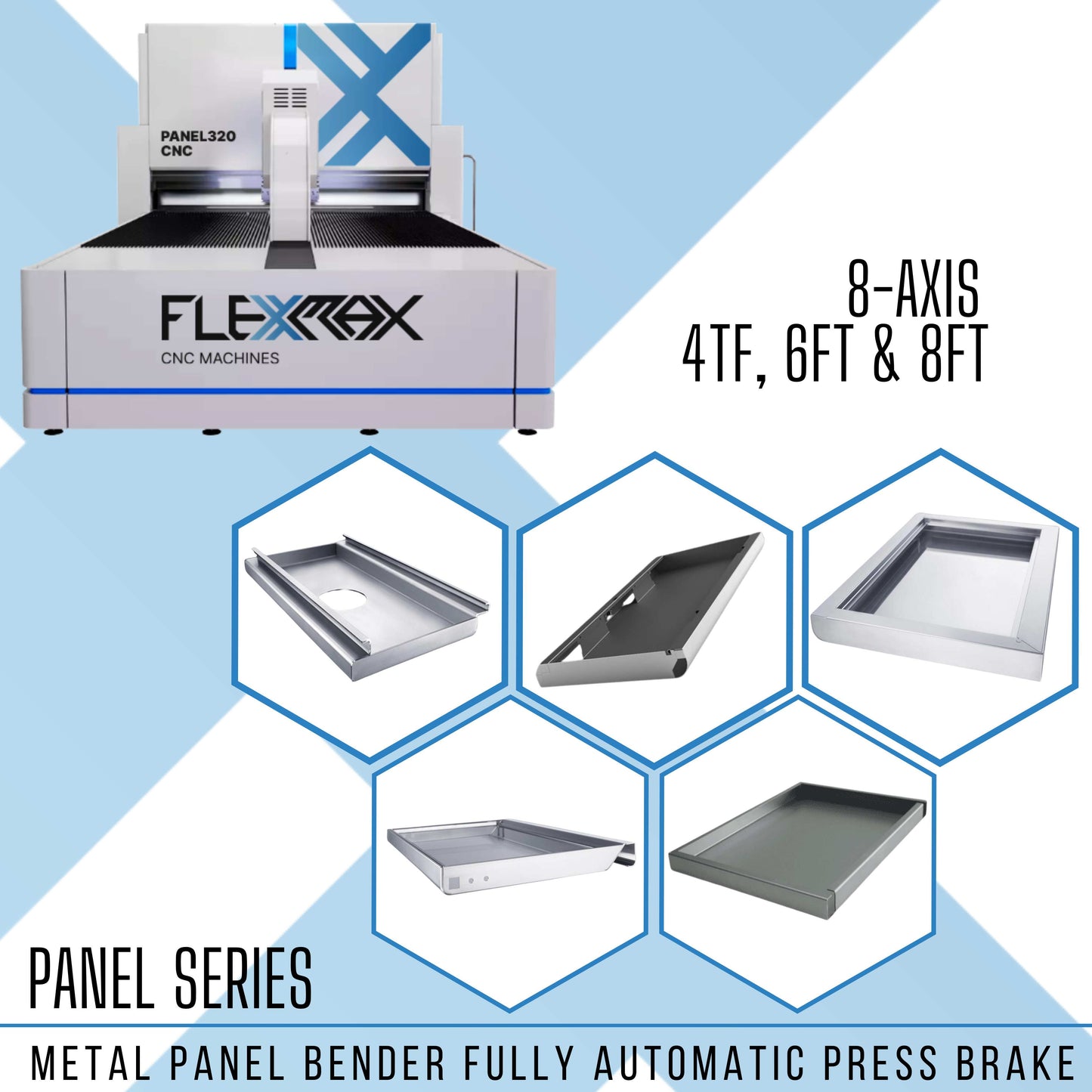

INTRODUCTION

This fully automatic Press Brake can form parts in a single process, is equipped with servo CNC technology, and offers unparalleled precision and efficiency during the panel's fabrication.

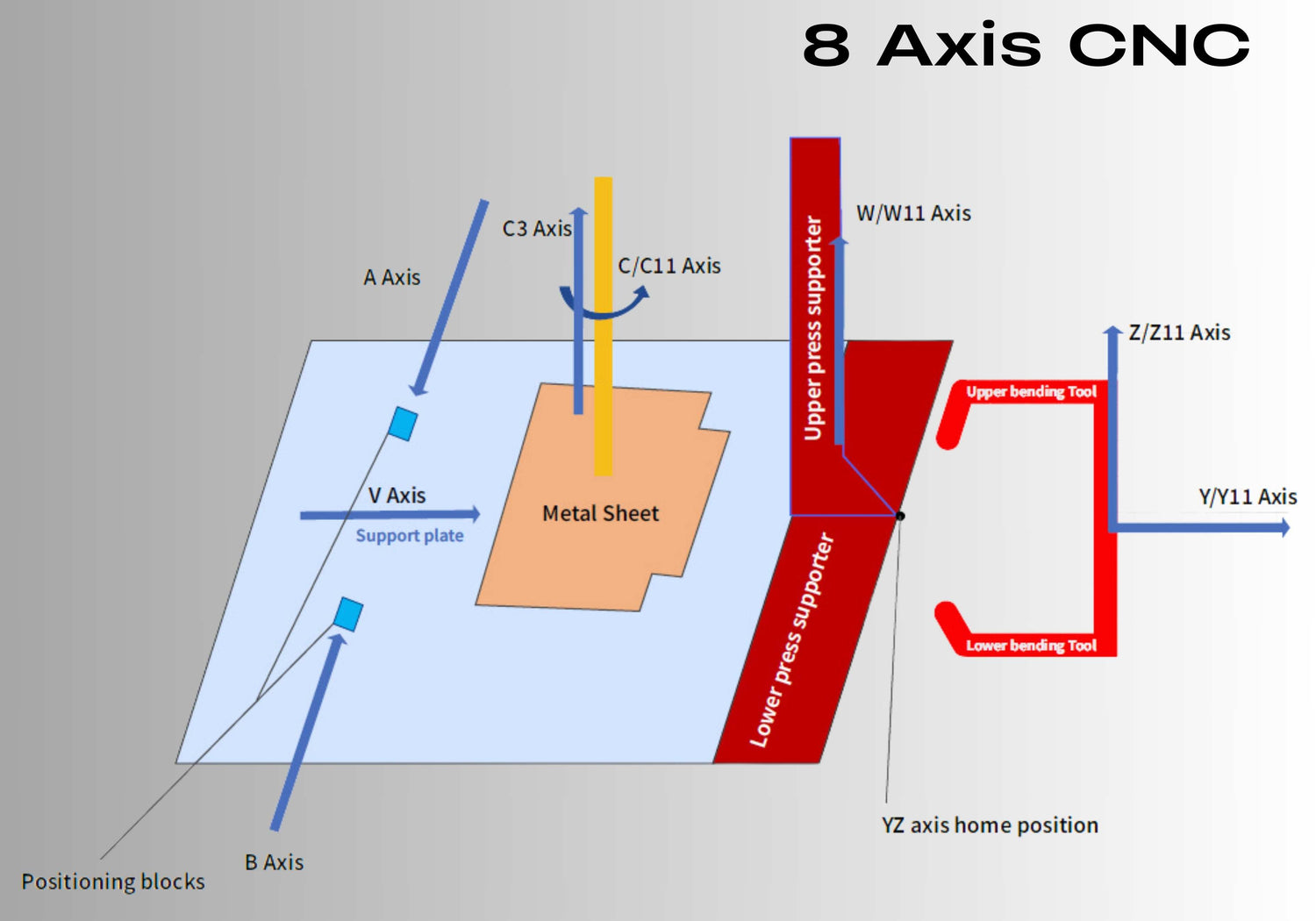

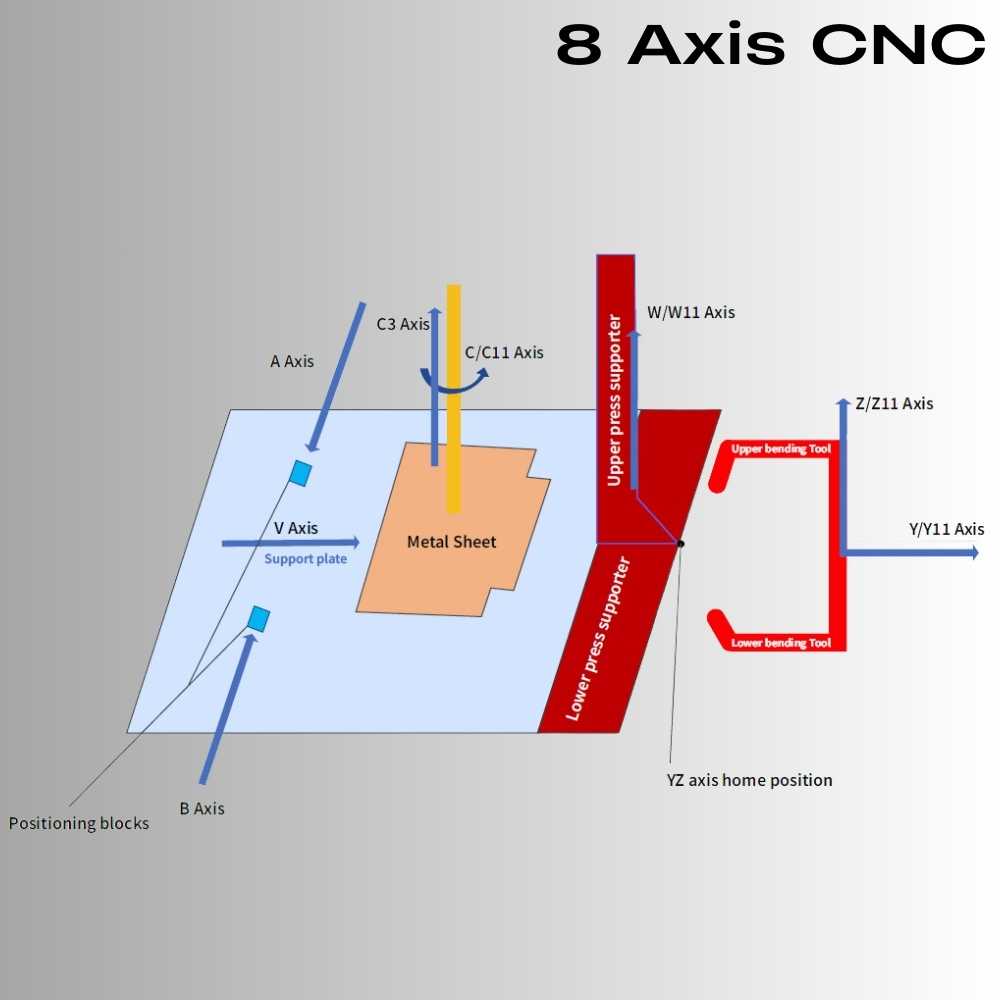

CNC 8 AXIS

Our Panel metal bender has 8 Axis automatic high precision movements (A, B, V, C3, C11, W11, Z11, Y11)

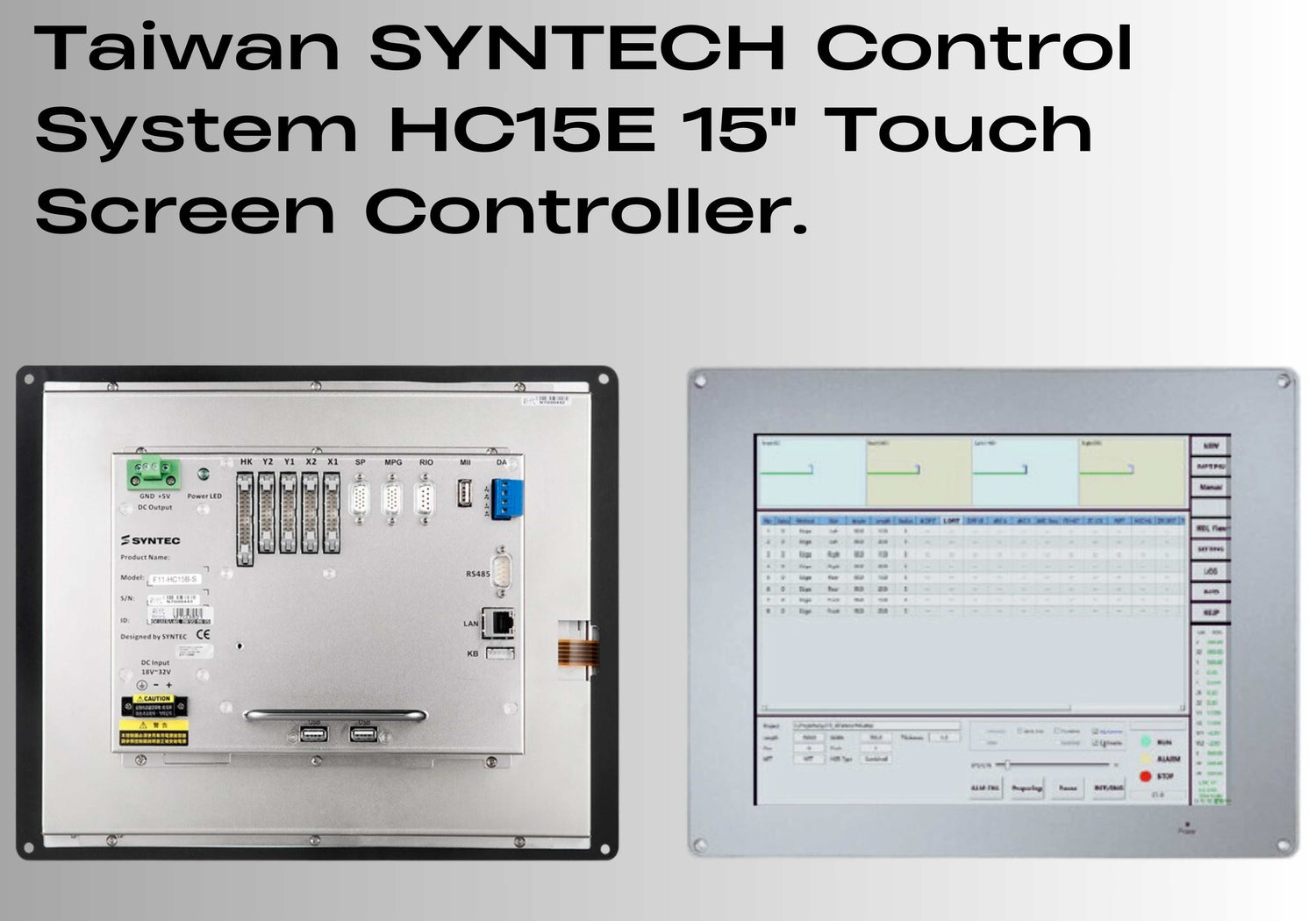

SYNTECH HC15E CONTROL

This Taiwanese control can draw 2D designs directly, has real-time simulation and compensation, 3D drawings, and more.

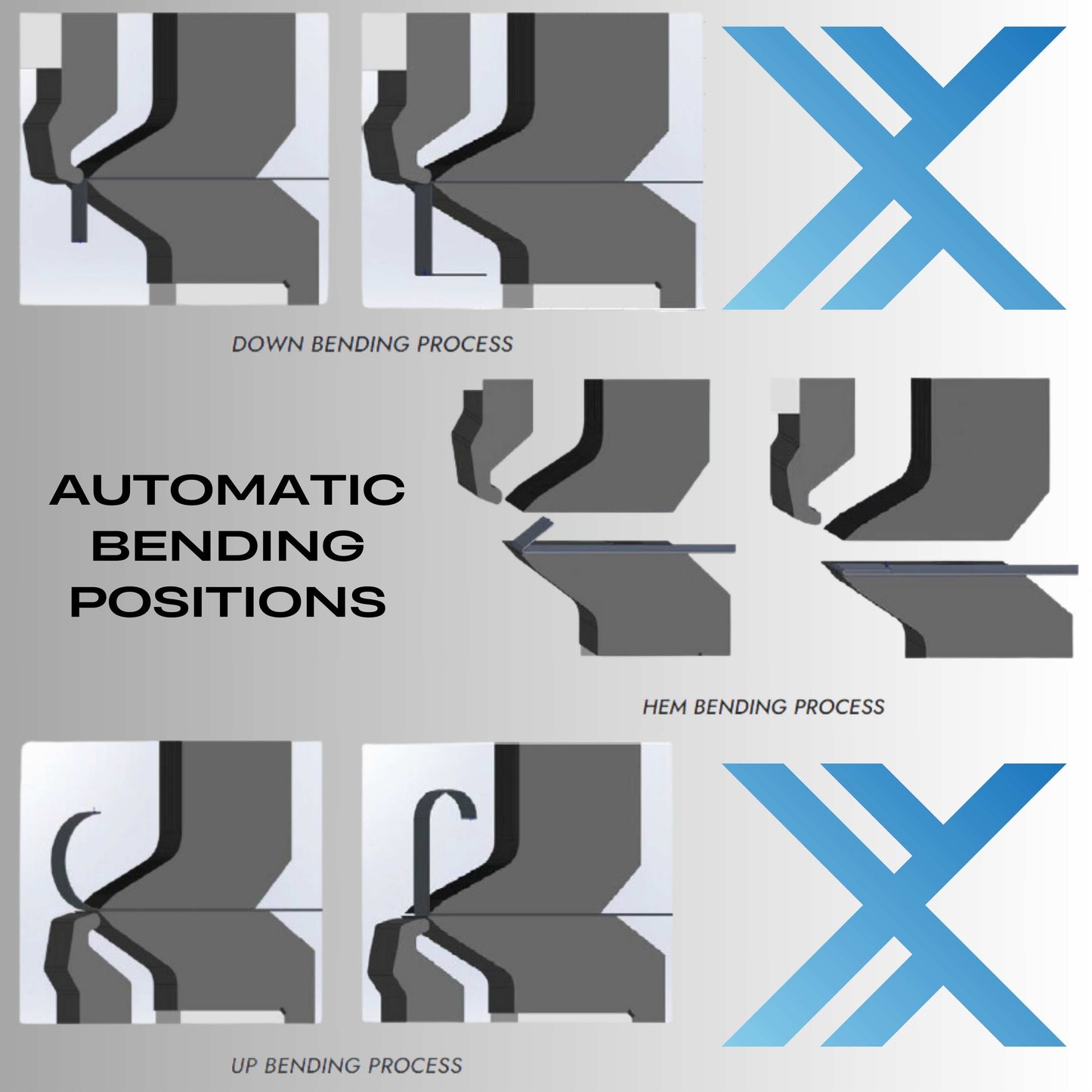

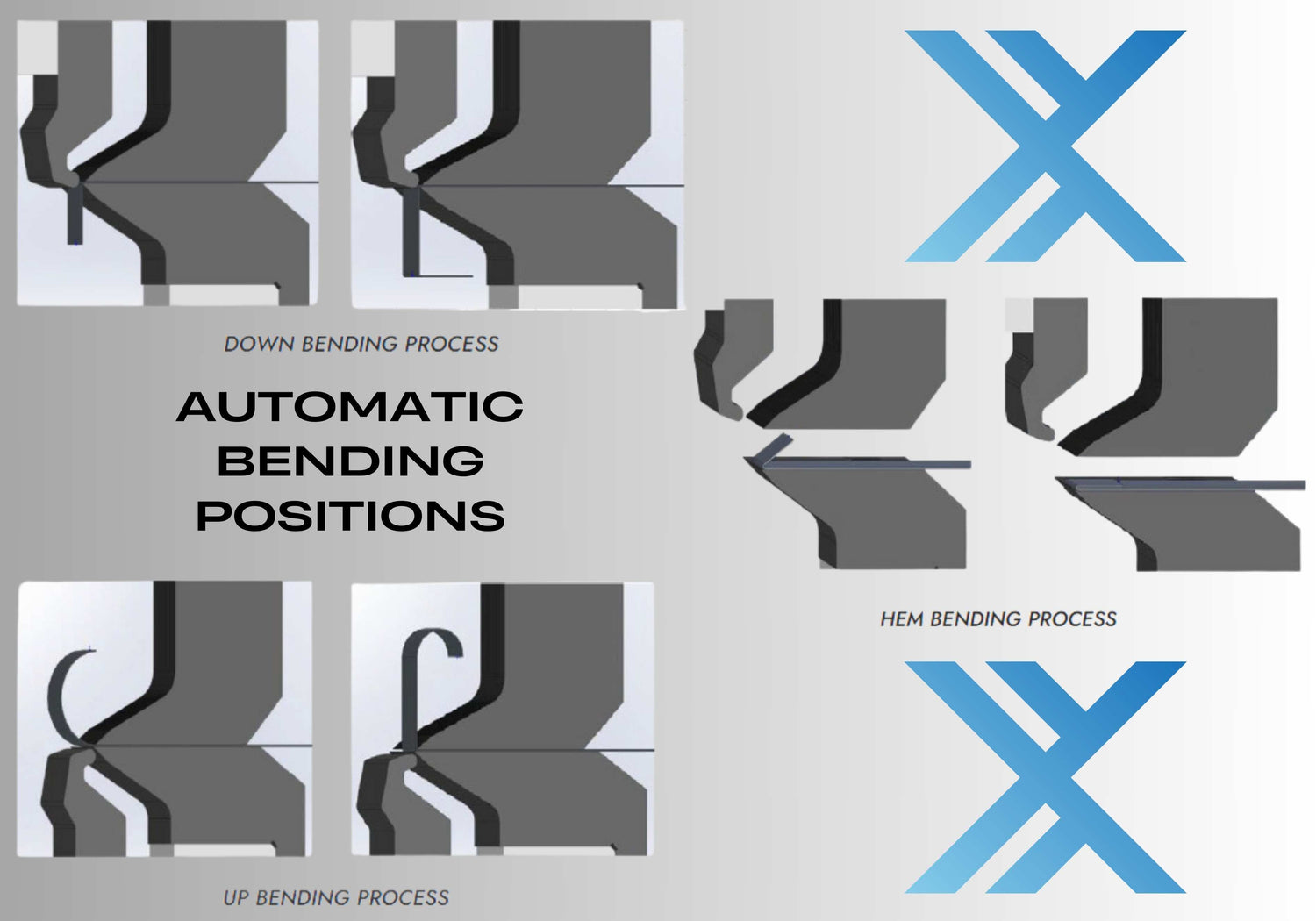

BENDING POSITIONS

The PANEL Series can perform down, hem, up, and more automatic bending positions.

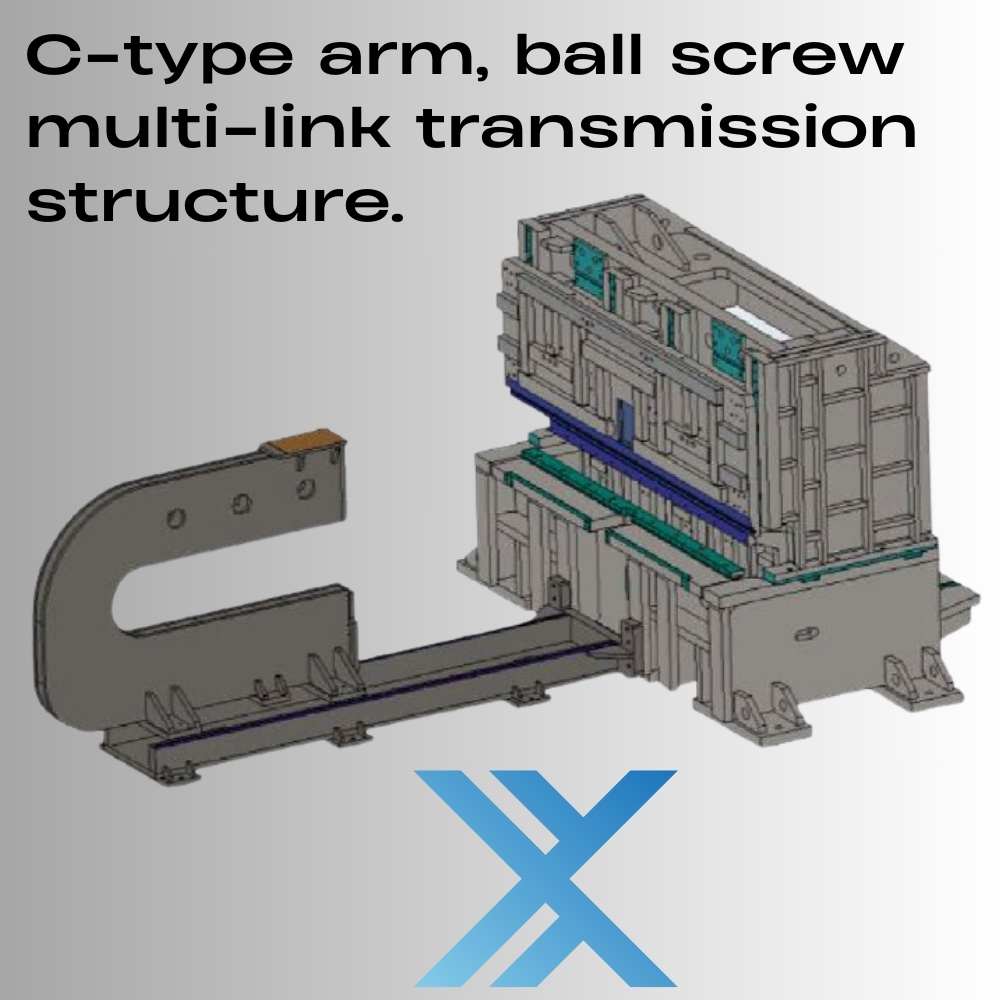

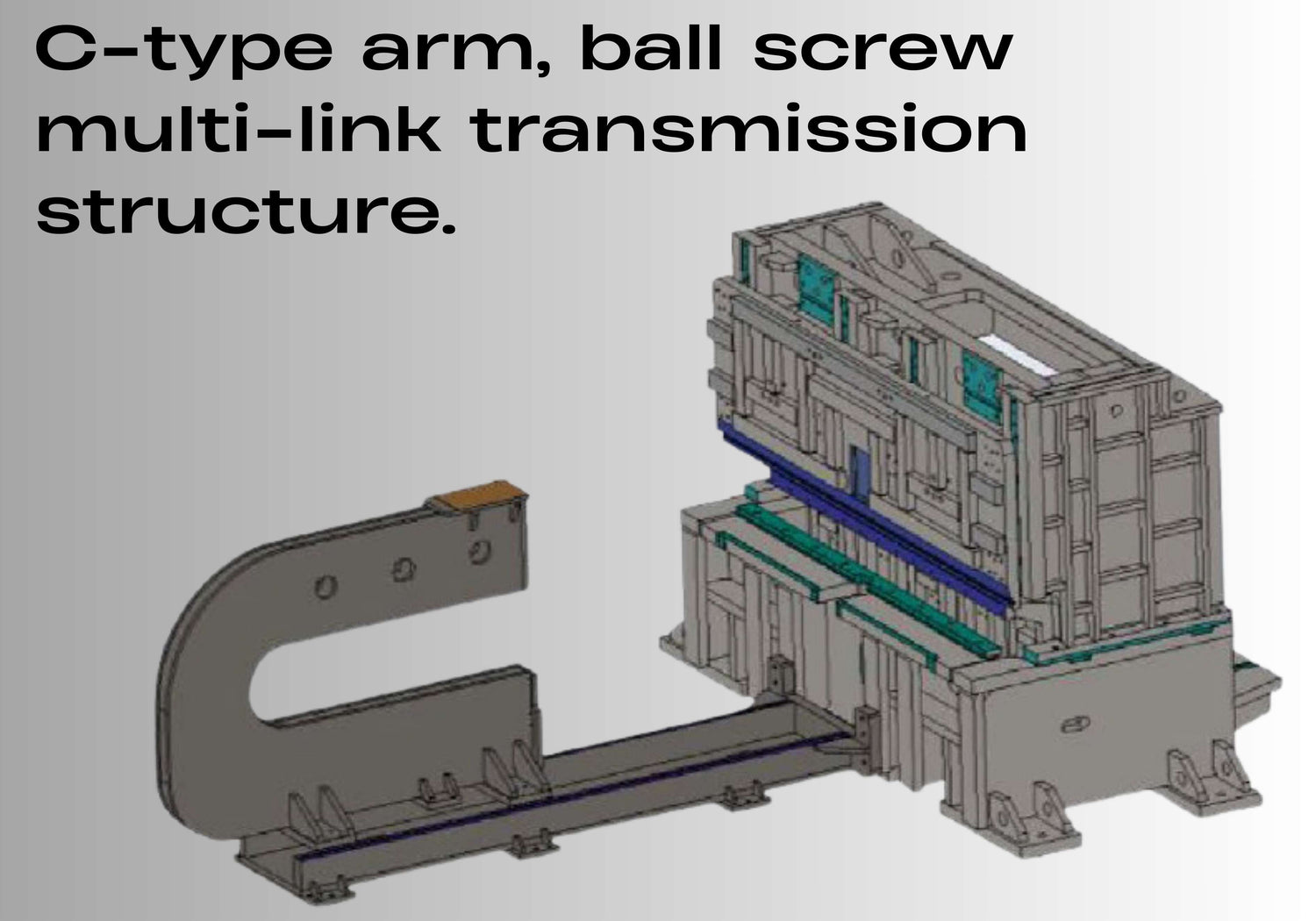

C-TYPE STRUCTURE

The PANEL Series achieves high-precision bending performance thanks to the robust and stable C-type arm with a ball screw multi-link transmission structure.

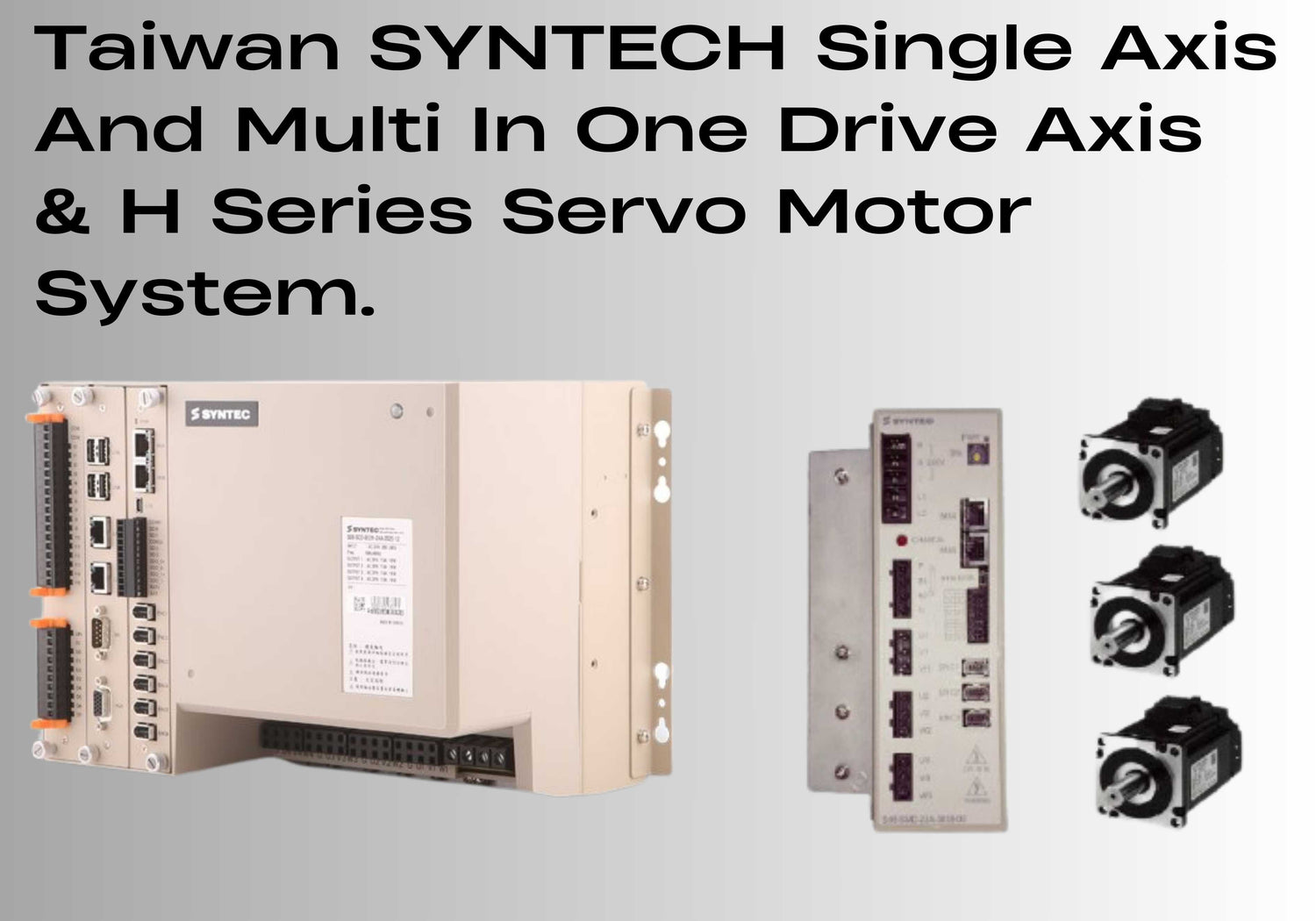

SINGLE & MULTI AXIS CONTROL

The Taiwan SYnTECH Single Axis And Multi One Drive Axis significantly simplifies the electronic system and offers centralized control.

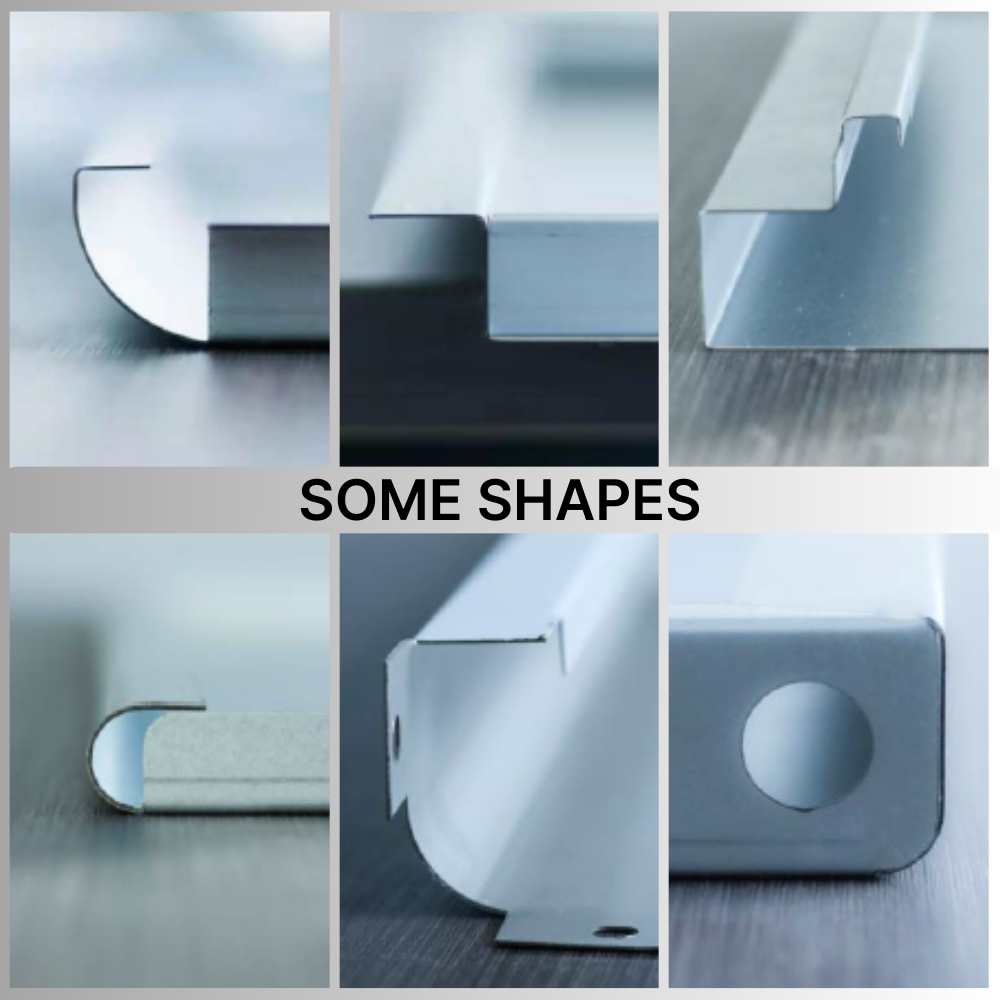

BENDING SHAPES

Experience the versatility of the FlexMax PANEL Series as it effortlessly bends a multitude of shapes, showcasing just a glimpse of its remarkable capabilities.

FACTORY TO FACTORY

We ship the machine directly from the factory to your location anywhere in the USA. Once it arrives, an engineer will install it and train you to use it with your materials and projects. ALL-INCLUSIVE!

4ft, 7ft and 8ft fully automatic press brake metal panel bender PANEL Series FlexMax CNC

Collapsible content

TECHNICAL SPECIFICATIONS

Models: PANEL-4-CNC, PANEL-7-CNC, and PANEL-8-CNC.

Controller: SYNTECH HC15E Touch Screen.

Bending capacity: 2mm aluminum, 1.5mm mild steel, and 1.2mm stainless
steel.

Bending area: 4 ft (PANEL-4) 7 ft (PANEL-7), and 8 ft (PANEL-8).

Max. Sheet width: 4 ft (PANEL-4) 5 ft (PANEL-7 and
PANEL-8).

Max. Sheet height: 170mm.

Min. Workpiece size four sides: 110 x 200mm (PANEL-4
and PANEL-7), 130 x 200mm (PANEL-8).

Min. Workpiece size single side: 110 mm (PANEL-4
and PANEL-7), 130mm (PANEL-8).

Min. Radius: 1.2mm.

Bending angle: ±180 °

Max. Bending speed: 0.5 s/bending.

Min. Sheet Thickness: 0.35mm

Axis: 8 Axis (A, B, V, C3, C11, W11, Z11, Y11)

Temperature and Humidity Operation: 10°C - 28°C / 5% - 95% without water
condensation

Full power: 36KW (PANEL-4) 55KW (PANEL-7 and PANEL-8).

Machine structure: C-Type

Dimensions: 178x95x106” (PANEL-4) 209x142x102” (PANEL-7), and 228x122x102”
(PANEL-8).

Weight: 27,600 pounds (PANEL-4) 44,000 pounds (PANEL-7), and 49,600 pounds
(PANEL-8).

Voltage / Hertz: 220V/60 GHz 3-PHASE

Warranty: 1 year for mechanical and electronic part

WARRANTY

In FlexMax Laser & CNC Machines we exceed our compromise with our customers. Our most important goal is to full fill your expectations and needs.


We provide outstanding customer service to satisfy our customer request.



FLEXMAX LASER & CNC MACHINES ALSO OFFERS:

  • COMPLETE INVENTORY OF SPARE PARTS FOR ALL THE LASER ENGRAVER & CUTTER MODELS.
  • SPECIALIZED TECHNICAL SUPPORT.
  • FAST RESPONSE TO OUR CUSTOMER REQUIREMENTS
  • CONTINUOUS IMPROVEMENTS IN OUR SERVICE.

FlexMax Laser & CNC Machines offers a comprehensive warranty policy, for more information and complete terms: CLICK HERE
