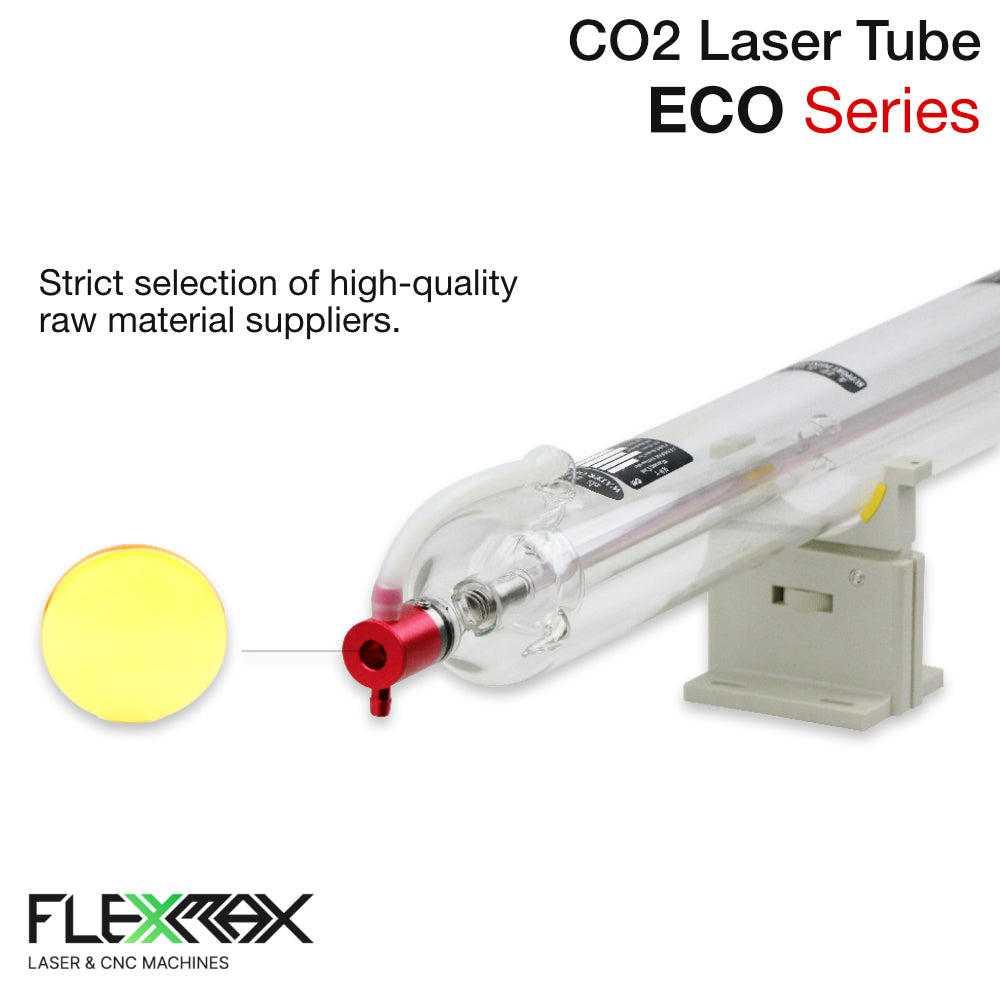

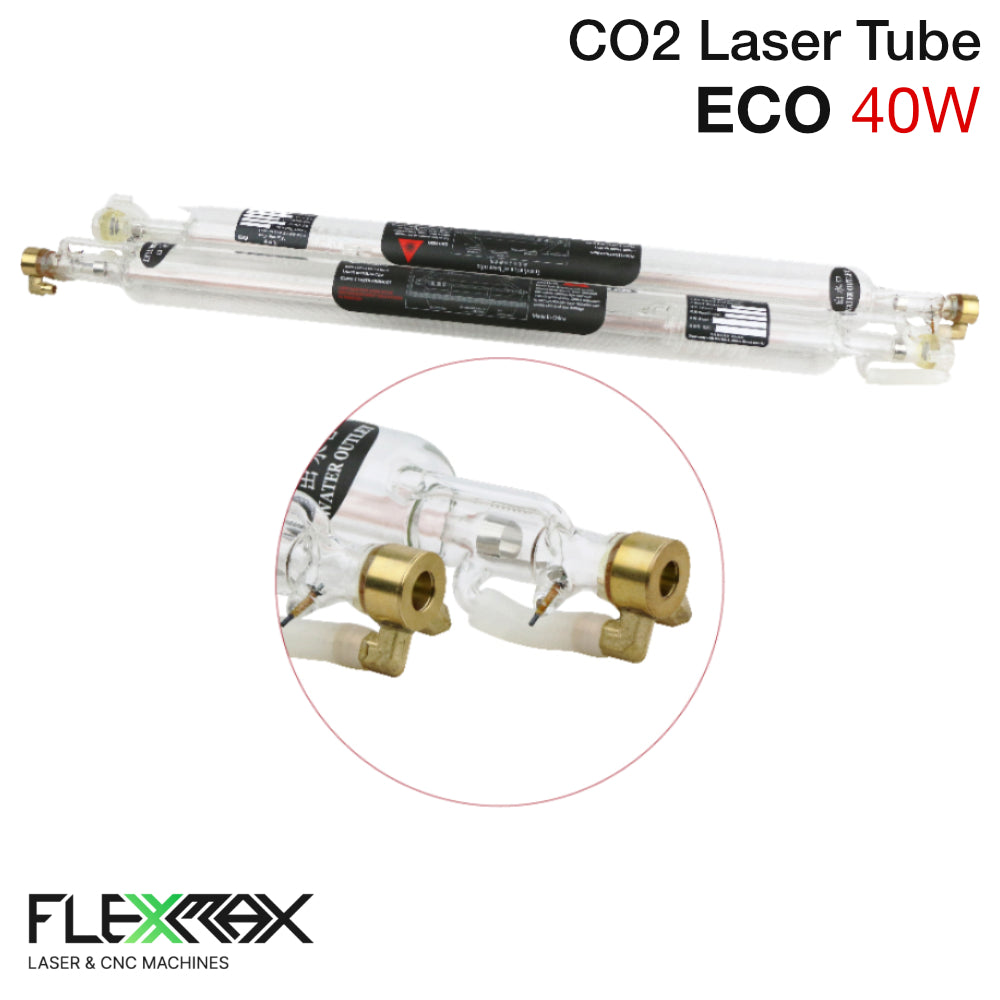

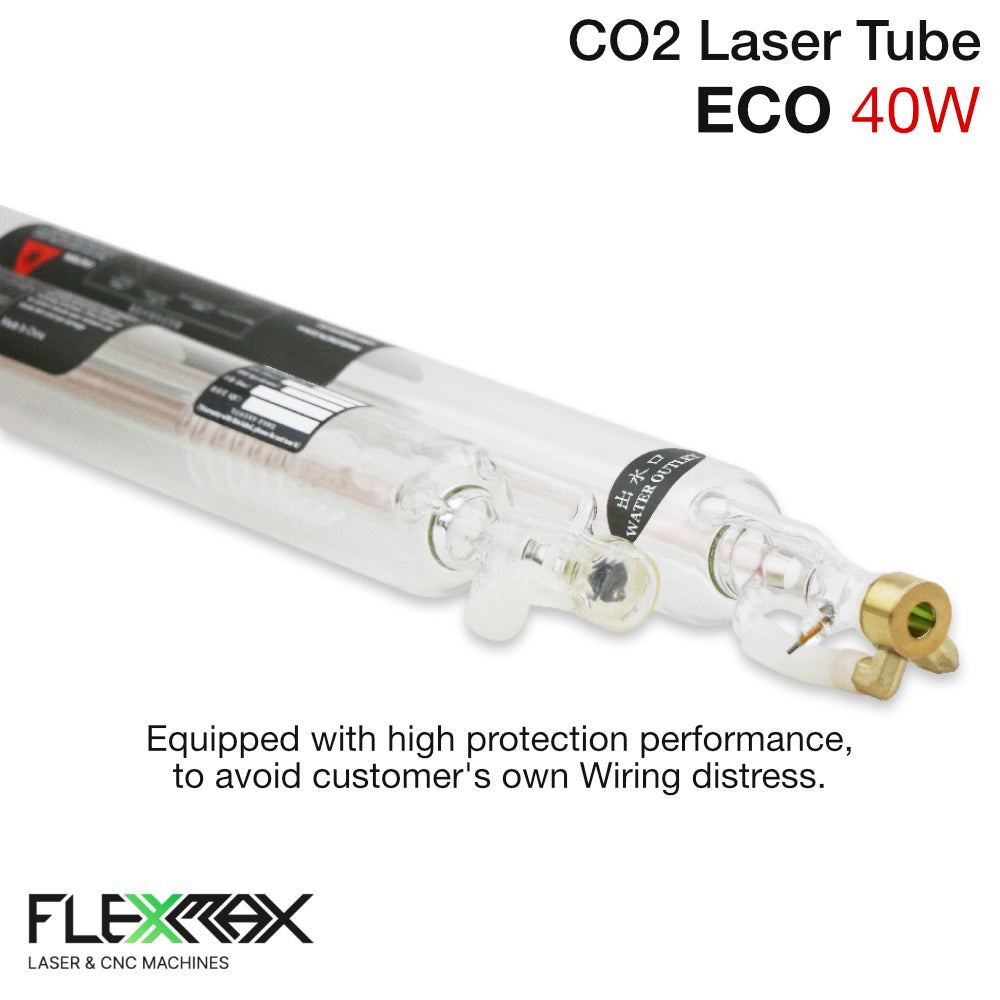

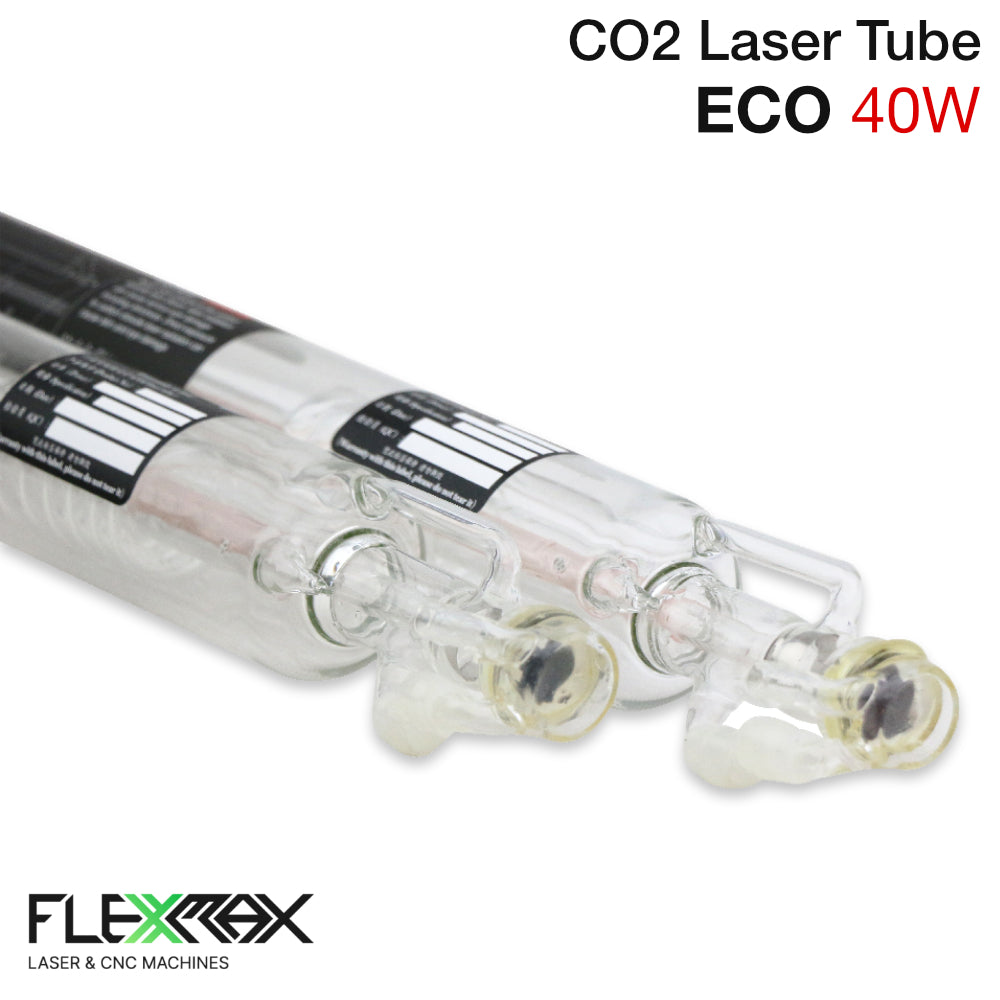

ECO40 40W CO2 Laser Tube – 700mm Glass Replacement for Laser Engraver & Cutter
ECO40 40W CO2 Laser Tube – 700mm Glass Replacement for Laser Engraver & Cutter
High-Performance ECO40 40W CO2 Glass Tube for Reliable Engraving & Cutting
-
Rated power 40W with 45W peak output for precise cutting & engraving.
-
700 mm length (≈27.5") and Ø50 mm glass tube—drop‑in size for most 40W machines.
-
Metal head configuration for the output end (standard on many 40W replacements).
-
Suggested power supply: 15K (per manufacturer guidance).
-
Average service life: 2,000–4,000 hours (usage dependent); third‑party 40W listings cite up to ~5,000 hours.
-
Tempered glass tube, helium high‑pressure tested for reliability.
-

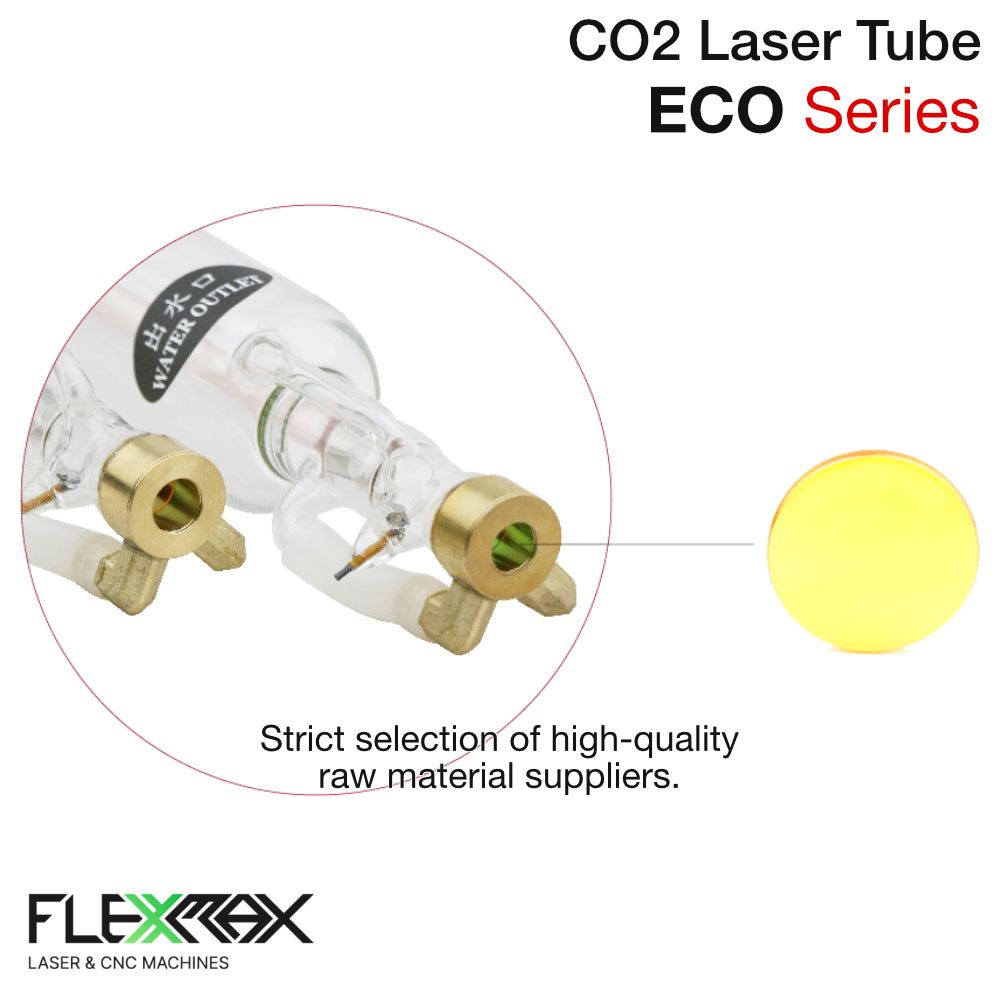

Internal output lens by CAMFive – Made in the USA.
-
2‑month manufacturer warranty (excludes misuse and transit damage).
-
Compatible with CAMFive cutters/engravers and most 40W CO2 machines from other brands.
Built for clean, consistent engraving and light‑duty cutting, the ECO40 matches the common 700 mm × 50 mm footprint and supports the recommended 15K PSU. For best longevity and beam quality, keep optics clean, use proper water cooling with distilled water, avoid running at 100% power continuously, and allow cooling intervals between long jobs.
Couldn't load pickup availability
Share






ECO40 40W CO2 Laser Tube – 700mm Glass Replacement for Laser Engraver & Cutter
Collapsible content
TECHNICAL SPECIFICATIONS
- Model: ECO40
- Rated Power: 40W
- Peak Power: up to 45W
- Tube Length: 700 mm (≈27.5”)
- Tube Diameter: 50 mm (≈2”)
- Output Terminal: Metal head
- Suggested Power Supply: 15K
- Service Life: 2,000–4,000 hours (usage dependent) / up to ~5,000 h (third-party reference)
- Tube Material: Tempered glass, helium pressure tested
- Internal Optics: Built-in lens (CAMFive, Made in USA)
- Warranty: 2 months (manufacturer, excludes misuse & transit damage)
- Compatibility: CAMFive ECO series and most 40W CO2 laser engravers/cutters
The ECO40 tube offers a compact 700 mm × 50 mm form factor, making it a direct replacement for most standard 40W desktop and mid-size CO2 machines. Its rated 40W output (with a 45W peak) provides steady engraving and light cutting performance, while the integrated metal head ensures durability and precise beam alignment.
With proper operation and cooling, the ECO40 delivers an average life of 2,000–4,000 hours, and under ideal maintenance conditions it may reach up to 5,000 hours. Routine cleaning of optics, avoiding continuous max-power use, and maintaining stable water cooling are critical to extending its lifespan.
Built with helium-tested tempered glass and an internal CAMFive lens, this tube ensures consistent energy output and reduced risk of leakage or performance loss. It’s designed as a reliable drop-in replacement for CAMFive systems as well as a wide range of other 40W CO2 laser engravers and cutters.
