FlexMax Laser

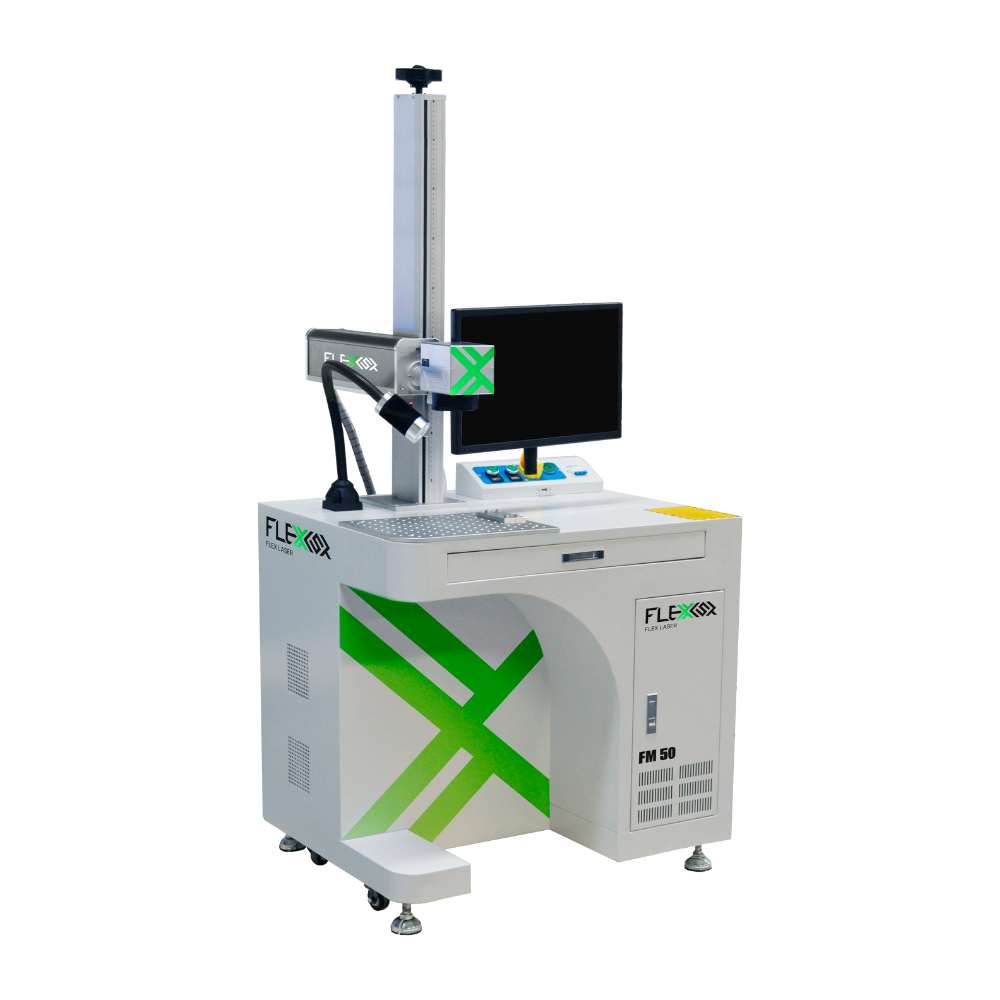

50W Industrial Grade workstation fiber marker and engraver MARK STATION Series FlexMax Laser Marking and Engraving machine

50W Industrial Grade workstation fiber marker and engraver MARK STATION Series FlexMax Laser Marking and Engraving machine

$7,990.00 USD
$7,990.00 USD
Sale Sold out

SALE METHOD: FROM OUR CA WAREHOUSE TO YOUR FACTORY WITH OPTIONAL LOCAL TRAINING AND SUPPORT

Our MARK STATION Series marking and engraving machine includes the following:

✔ 50W MAX Laser Sources.
✔ 32" pole for engraving with a maximum area of 15.7" x 15.7".
✔ Four lenses to engrave: 6.8 x 6.8" or optionally 4.3 x 4.3", 11.8 x 11.8" or 15.6 x 15.6"
✔ Integrated Windows PC.
✔ EzCAD or LightBURN™ Software Last Version.
✔ Mark ETCH, MIRROR, ANNEAL finishes, and even basic colors (50W).
✔ Multi-Function Rotary Tool to process cylindrical objects.
✔ Ergonomic workstation design.
✔ Engrave 900% faster than regular CO2 machines.
✔ Includes a red dot point light to check the position of the laser beam.
✔ Mark 0.015mm letters, numbers, symbols, or micro drawings of 0.2mm.
✔ Engrave high-definition portraits, logos, codes, numbers, etc.
✔ Industrial Grade. Operates at a 24/7 Cycle duty cycle.

Payments As Low As: $ 168/mo CLICK HERE to APPLY NOW
View full details

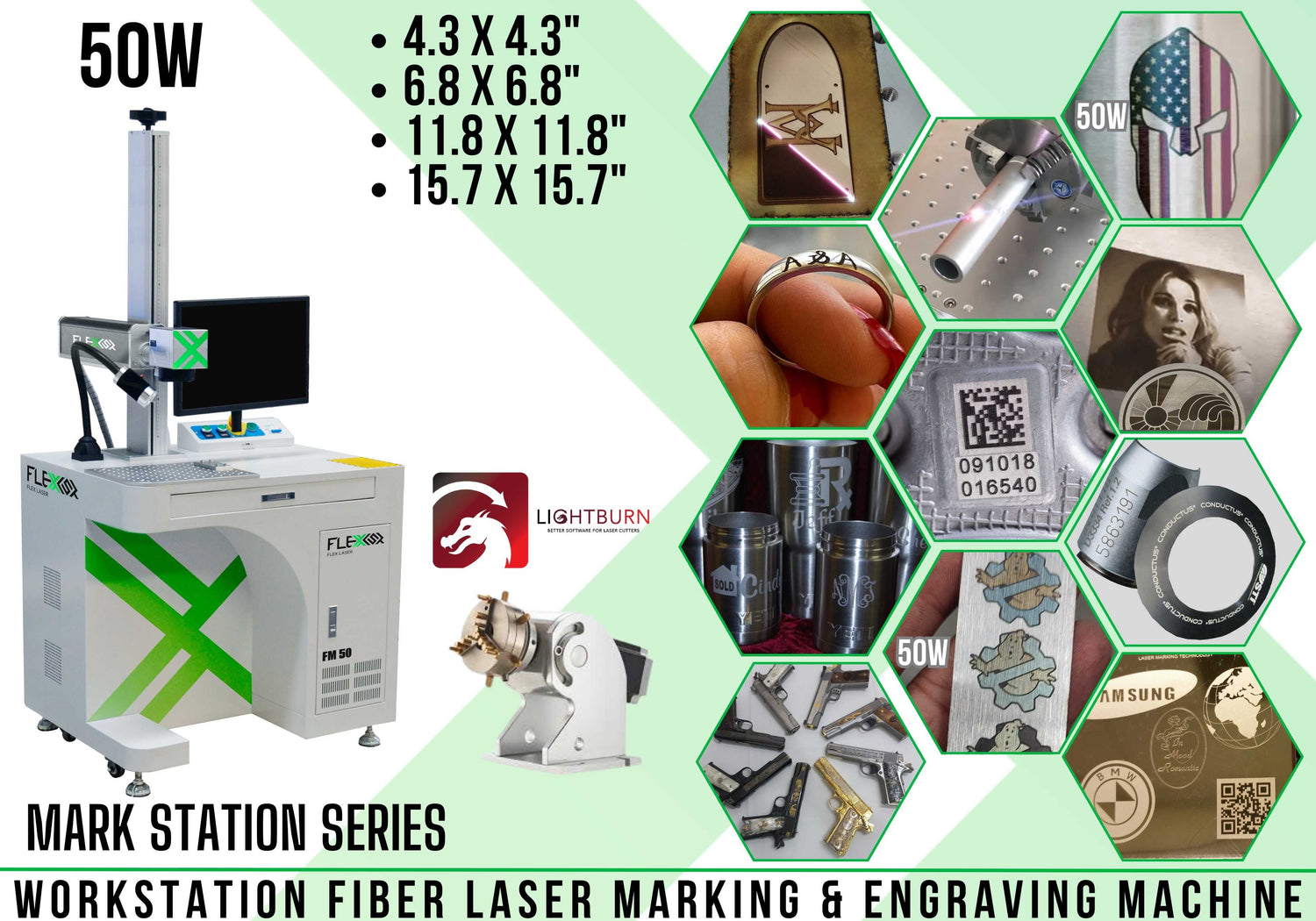

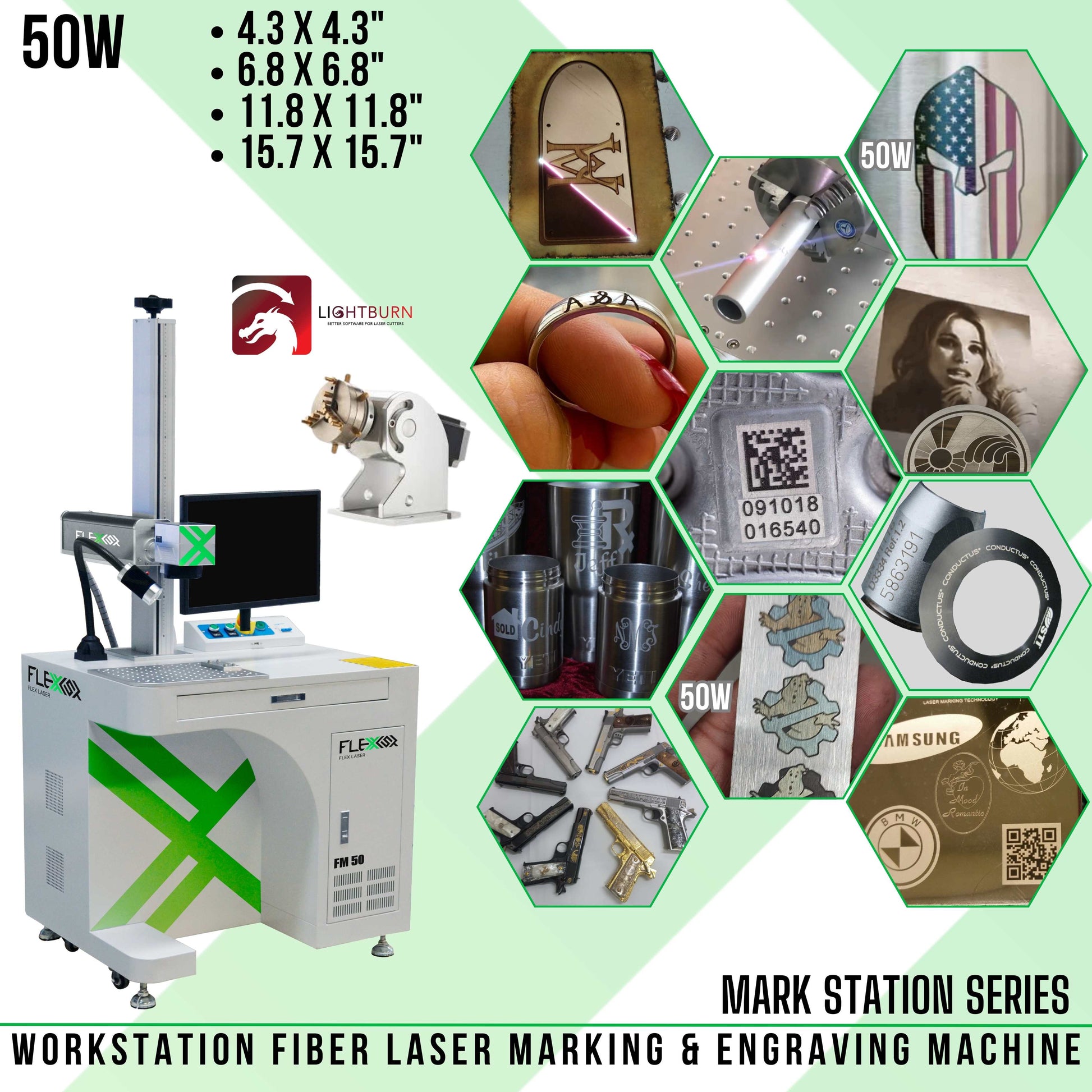

INTRODUCTION

Introduce our MARK STATION Series, an industrial-grade and powerful workstation fiber laser engraver/marker that can produce intricate designs on all types of metals, industrial plastics, and other materials.

DIFFERENT EFFECTS

The MARK Series excels in achieving various effects on metals, plastics, and other industrial materials. With the ability to adjust parameters, it can mark or engrave in grays, primary mate colors, deeps, and more.

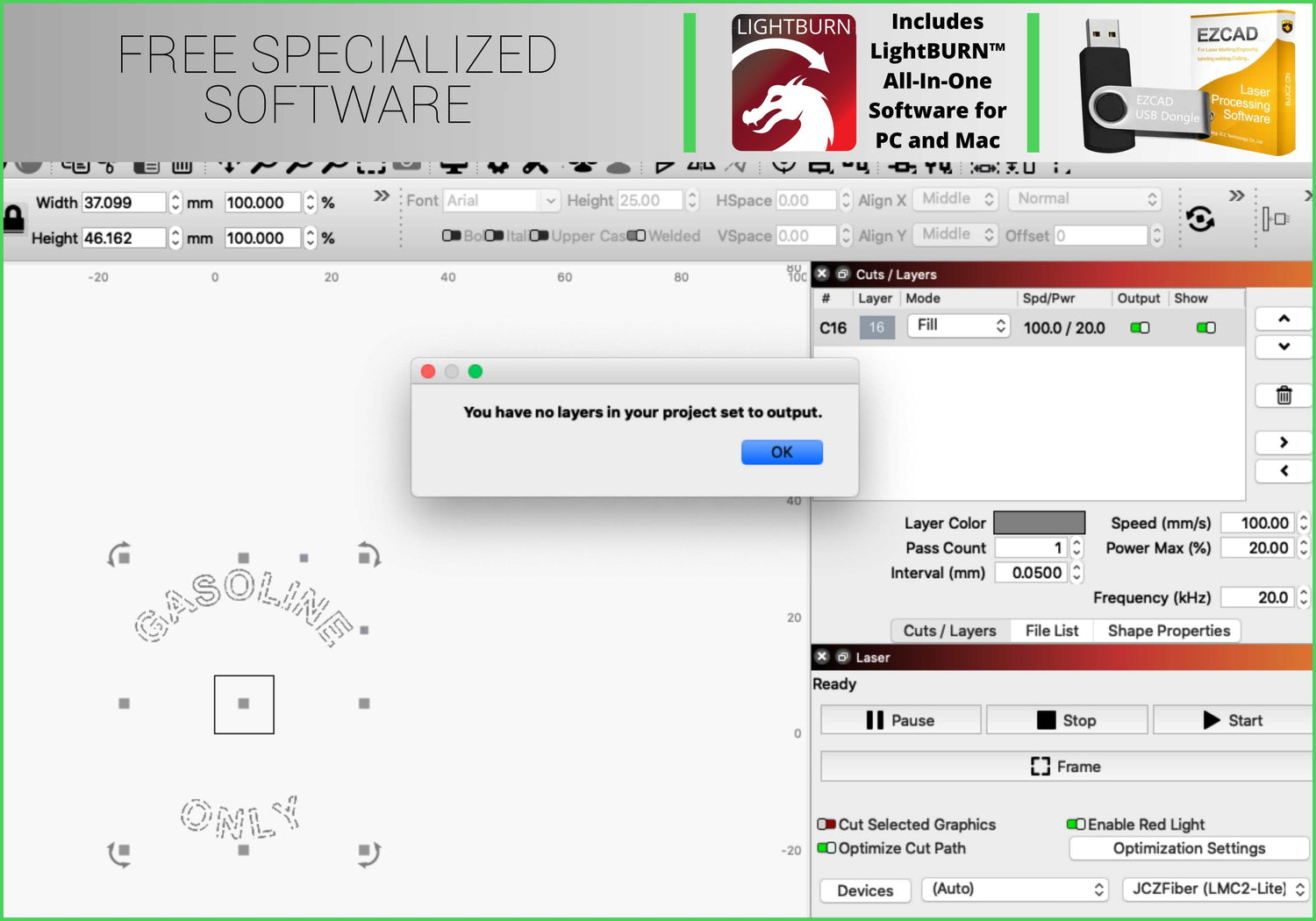

SOFTWARE

It includes two specialized software options (EXCAD or LIGHTBURN); you can import designs from your favorite design program or even create basic designs directly there, such as importing images and generating codes, etc.

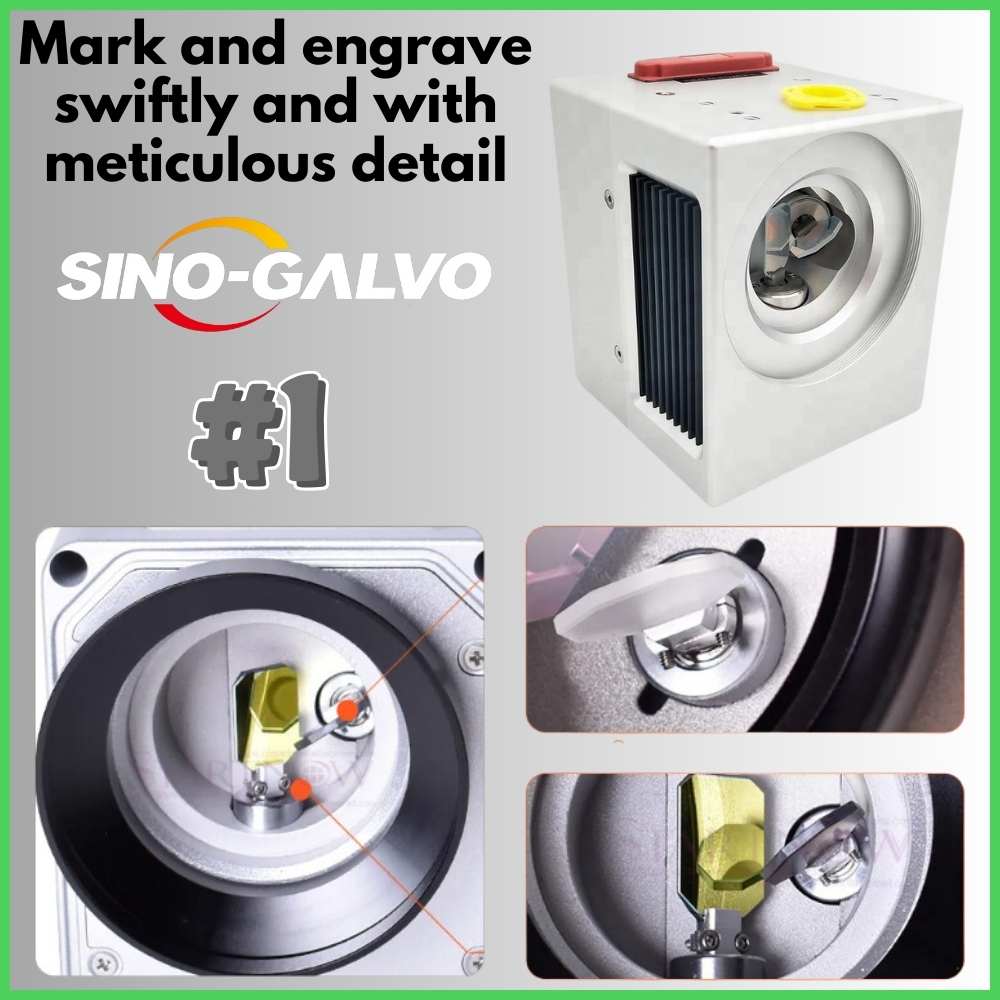

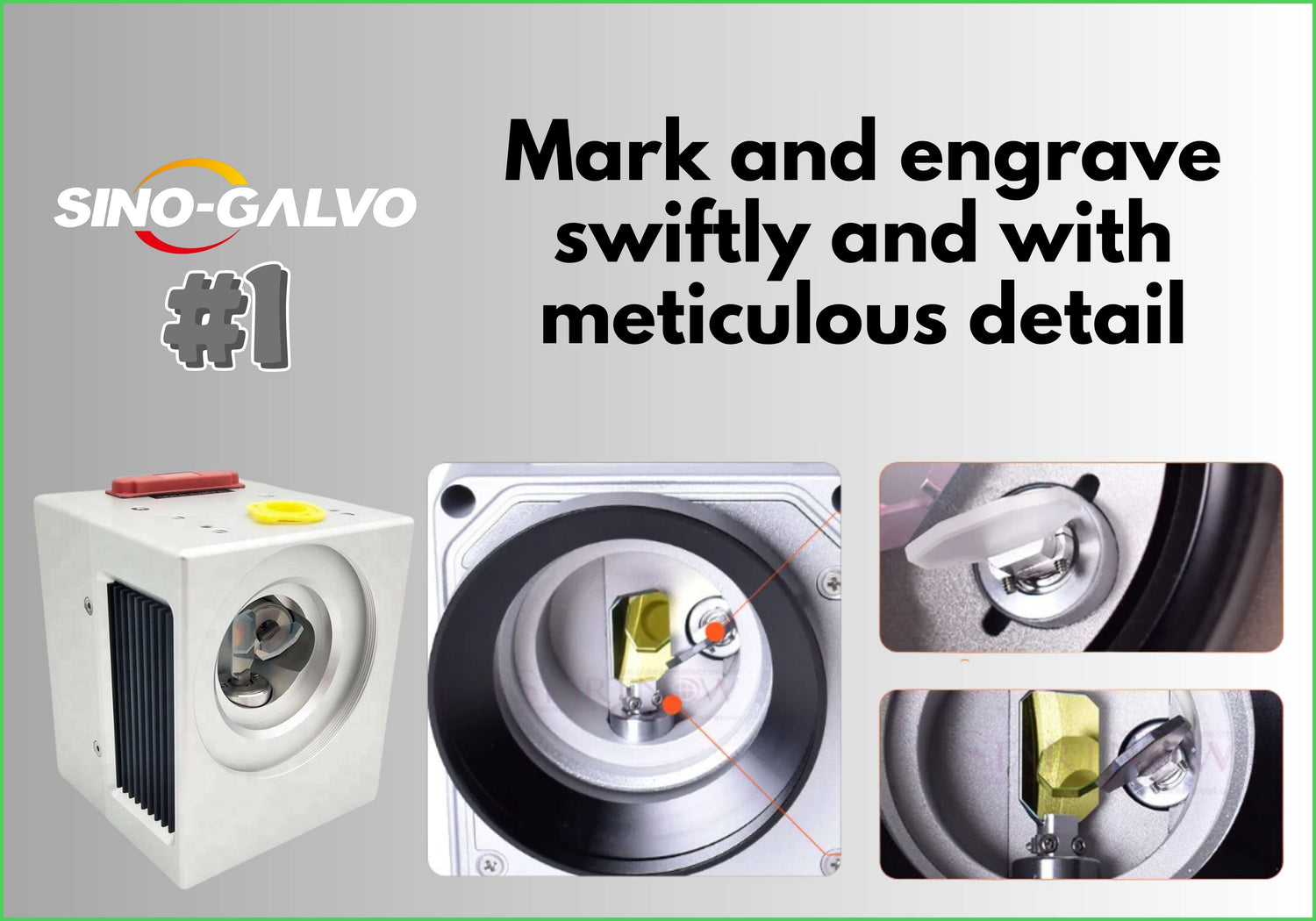

GALVO

Our MARK Series is equipped with a SINO galvo system. This is the number one worldwide brand known for its top performance, enabling impressive speeds and intricate details.

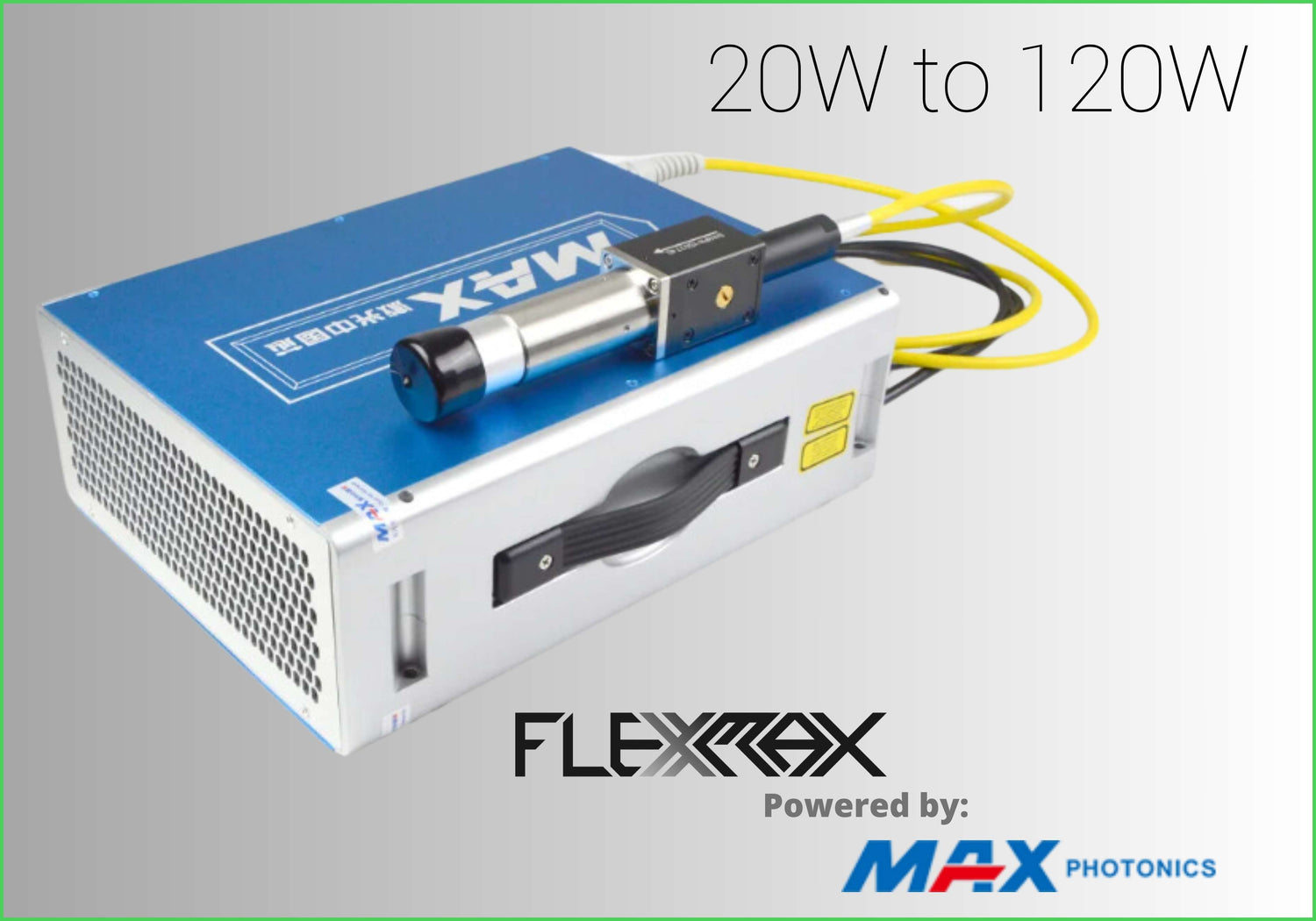

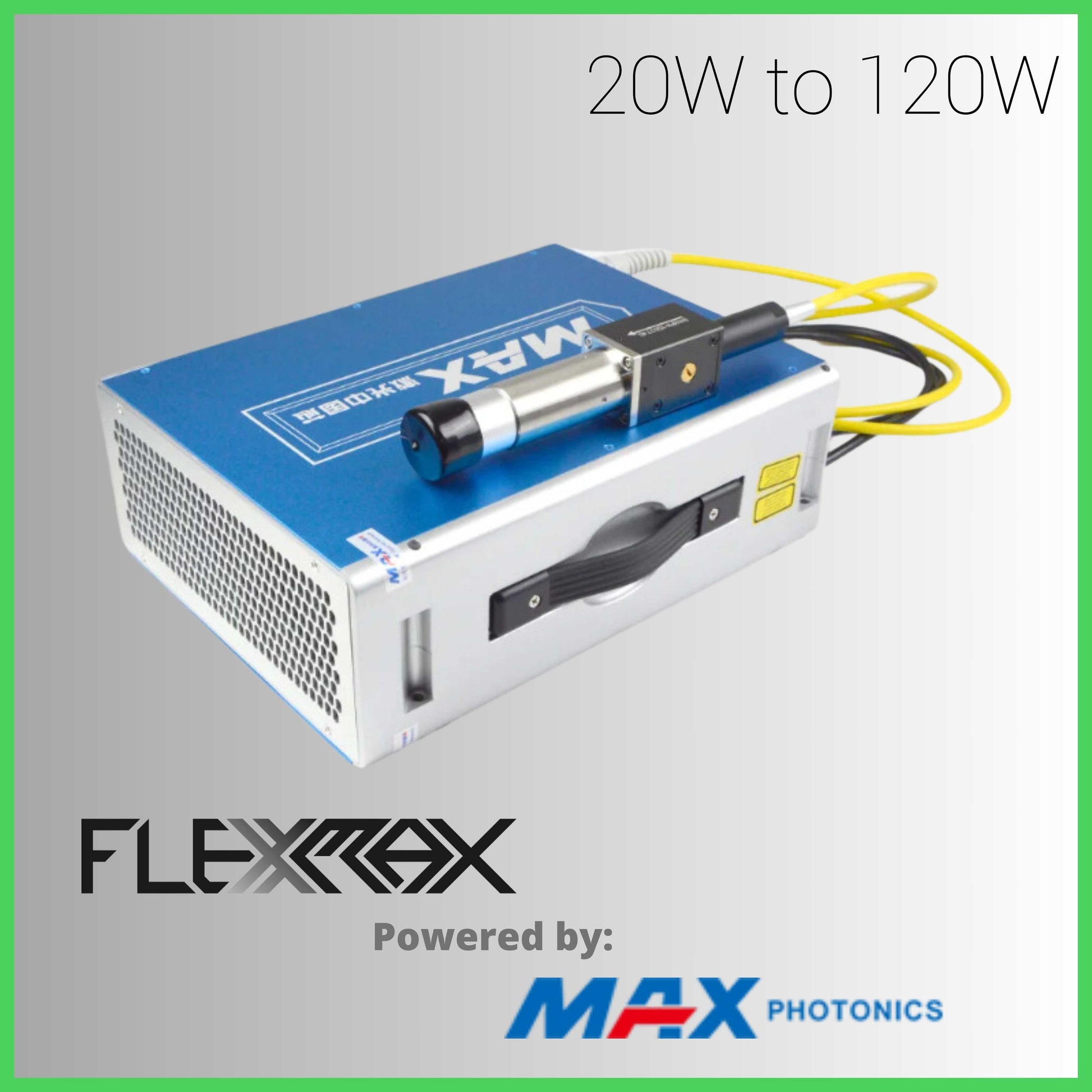

LASER SOURCE

Our MARK & QUARTZ Series is powered by MAX Photonics; these stable generators deliver a huge electric frequency range, enabling the marking and engraving of thousands of tonalities.

32 INCH POLE

A 32-inch pole is essential for your machine to reach a large field as it functions as a projector. It is imperative to have additional height to engrave or mark 11.8 x 11.8 or 15.7 x 15.7 areas.

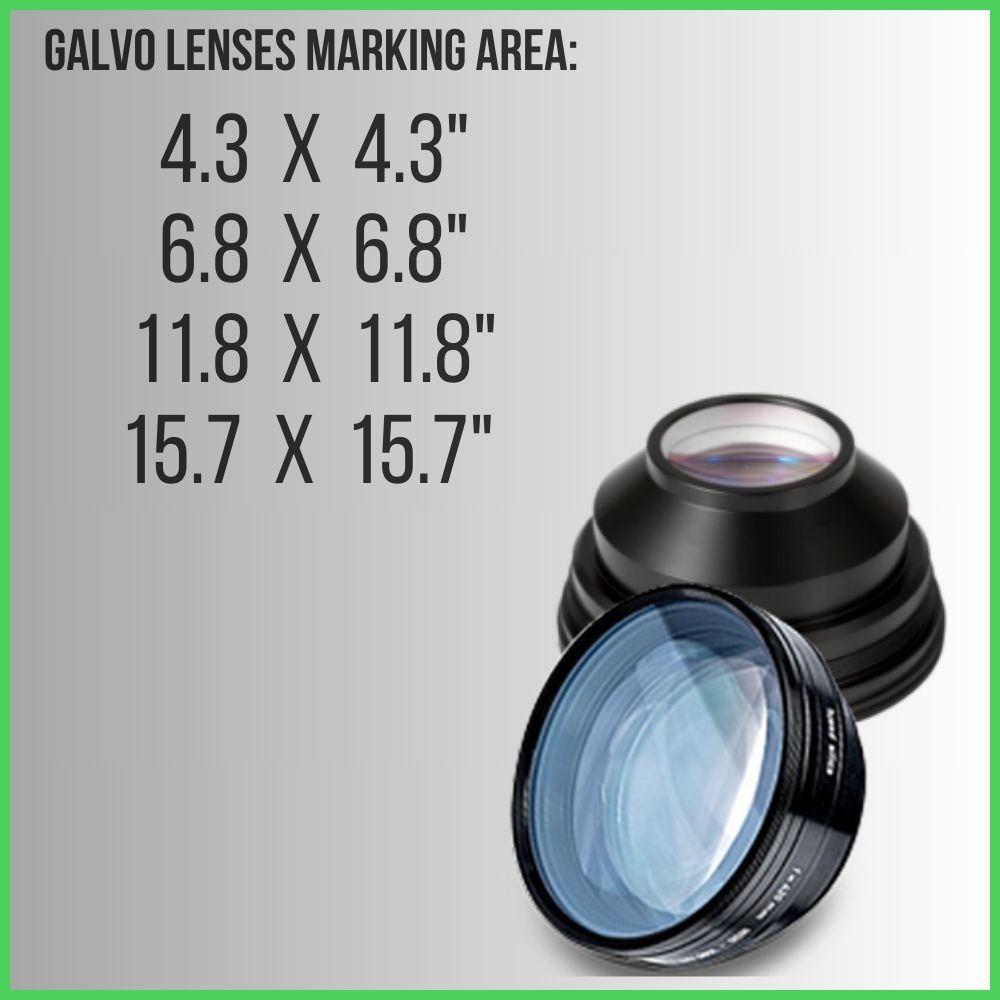

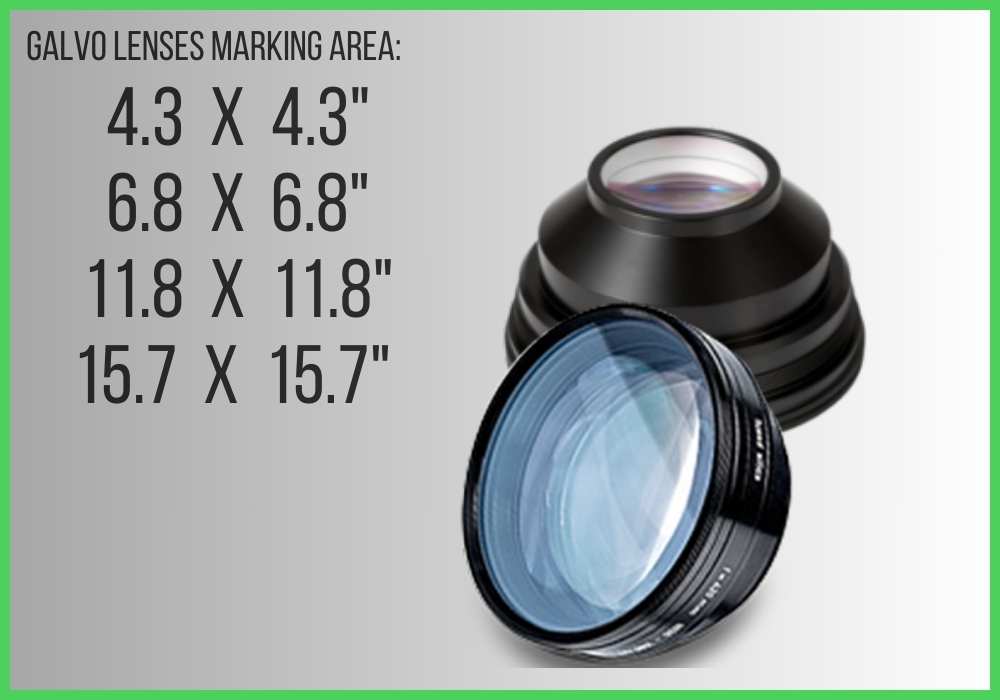

LENSES

The FlexMax Laser fiber machines excel at performing markings and engravings, thanks to the precision of the lenses. Our use of quartz lenses and regular lenses with varying working areas ensures top-notch results.

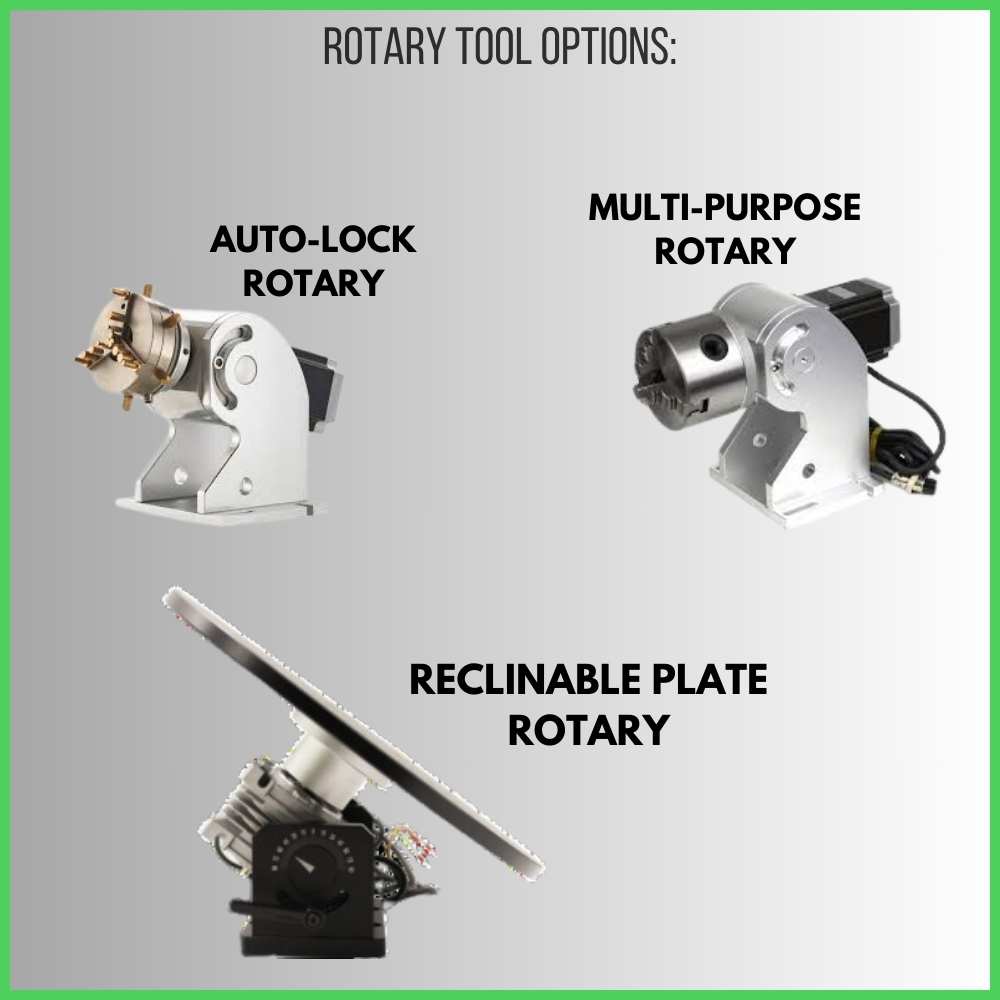

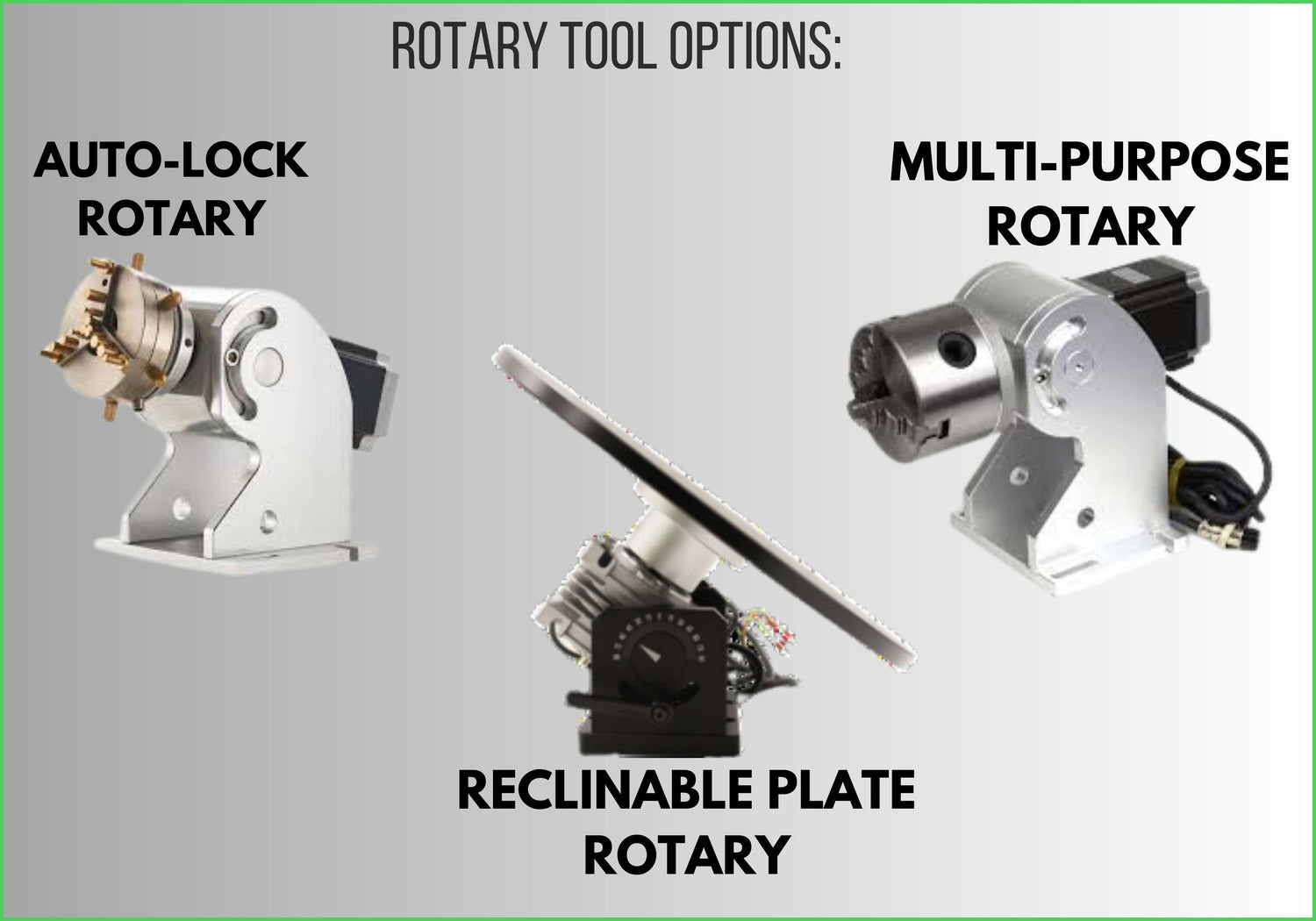

ROTARY TOOLS

Every application demands the perfect tool. That's why we provide a range of rotary devices to meet your needs, whether you require marking inside or outside, on multiple products simultaneously, or elsewhere.

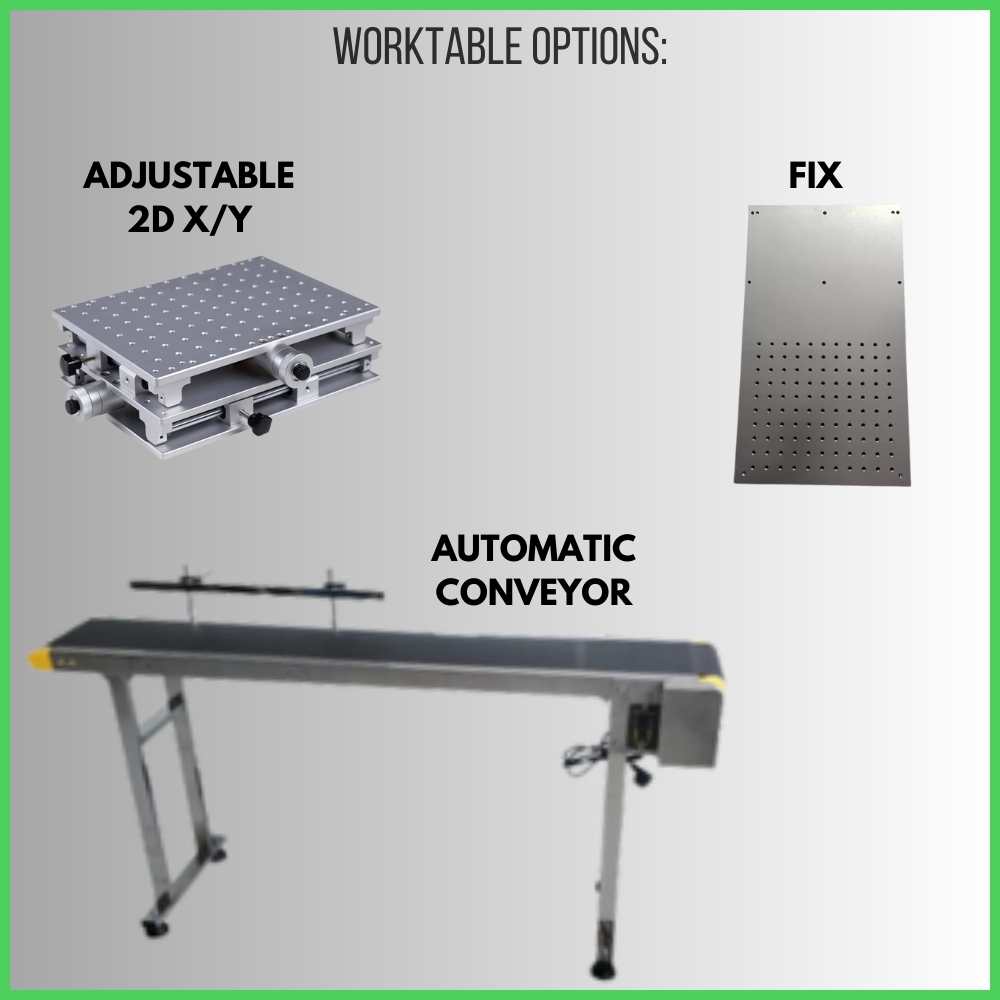

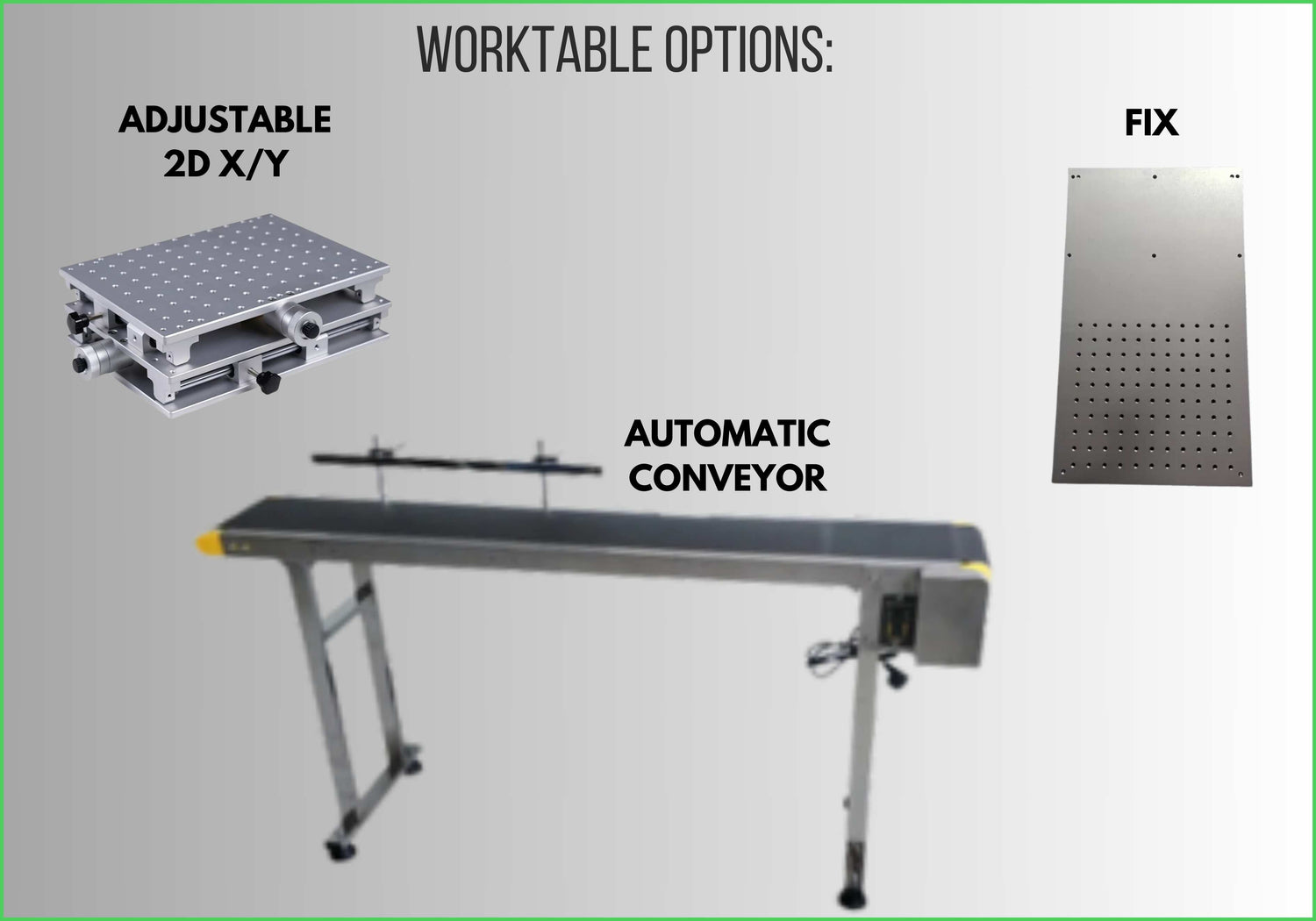

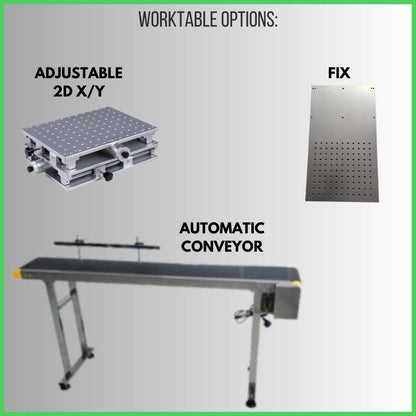

WORKTABLES

Whatever the product shape, production target, or other factors, FlexMax Laser offers an extensive range of workable options, the perfect solution for every project.

INSTALLATION & TRAINING

Optionally, we offer installation and on-site training as part of our ALL-INCLUSIVE services. Our technician will travel to your location to ensure you receive the best service.

SAMPLES

The MARK or QUARTZ Series is suitable for processing various materials in different industries including metalworking, customization, jewelry, automotive, aeronautic, kitchenware, crafts, and packaging, etc

50W Industrial Grade workstation fiber marker and engraver MARK STATION Series FlexMax Laser Marking and Engraving machine

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS - MARK STATION Series

Laser source power: 50W (For more power, please visit our QUARTZ Series product page)

Engraving lens: 6.8" x 6.8" (4.3" x 4.3", 11.8" x 11.8", and 15.7" x 15.7" are available for this model)

Dial Range: 0 a 0.5 mm

Minimum width of a line: Line: 0.15mm Minimum

Utilization (cycle): 24/7 Industrial grade

Minimum Width: Character: 0.15mm Minimum

Software: EZCAD 2.0 Included or Lightburn Galvo

Laser pauses power increase: Laser pauses power increase < 1% controlled by the software.

Possible formats: include graphics of all types, Texts, Barcodes, QR codes, Data Matrix codes, three-dimensional codes, Automatic sequential marking of dates, Batch numbers or serial numbers, and frequencies.

Repeatability Accuracy: + 0.001mm

Engraving Speed:7000mm/s (High Speed)

Frequency Speed range: 25Khz to 99Khz

Laser Wavelength: 1064nm

Divergence: 0.3 mard

Laser beam quality: 1.2 to 1.8 (M2)

Post Height: 20 inches adjustable

X/Y table: 2D Ajustable (Option)

Cooling system: Air (internal fans)

Rotary Tool (rotary accessory): Multi-Purpose 360 Degrees or suitable for rings (Optional)

Operating Humidity: 5%-85% without water condensation

Operating Temperature: 10C-25C

Dimensions: 28 x 24 x 59 inches with the pole installed

Weight: 286/652 pounds

Voltage/Hertz: 220V + 10% 60 GhZ 4A (can be connected to 110V with Voltage Regulator)

Machine energy consumption: 1050W

Warranty: 1 Year (Mechanical and Electronic due to factory defects)



WARRANTY

In FlexMax Laser & CNC Machines we exceed our compromise with our customers. Our most important goal is to full fill your expectations and needs.


We provide outstanding customer service to satisfy our customer request.



FLEXMAX LASER & CNC MACHINES ALSO OFFERS:

  • COMPLETE INVENTORY OF SPARE PARTS FOR ALL THE LASER ENGRAVER & CUTTER MODELS.
  • SPECIALIZED TECHNICAL SUPPORT.
  • FAST RESPONSE TO OUR CUSTOMER REQUIREMENTS
  • CONTINUOUS IMPROVEMENTS IN OUR SERVICE.

FlexMax Laser & CNC Machines offers a comprehensive warranty policy, for more information and complete terms: CLICK HERE
